FRONT FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

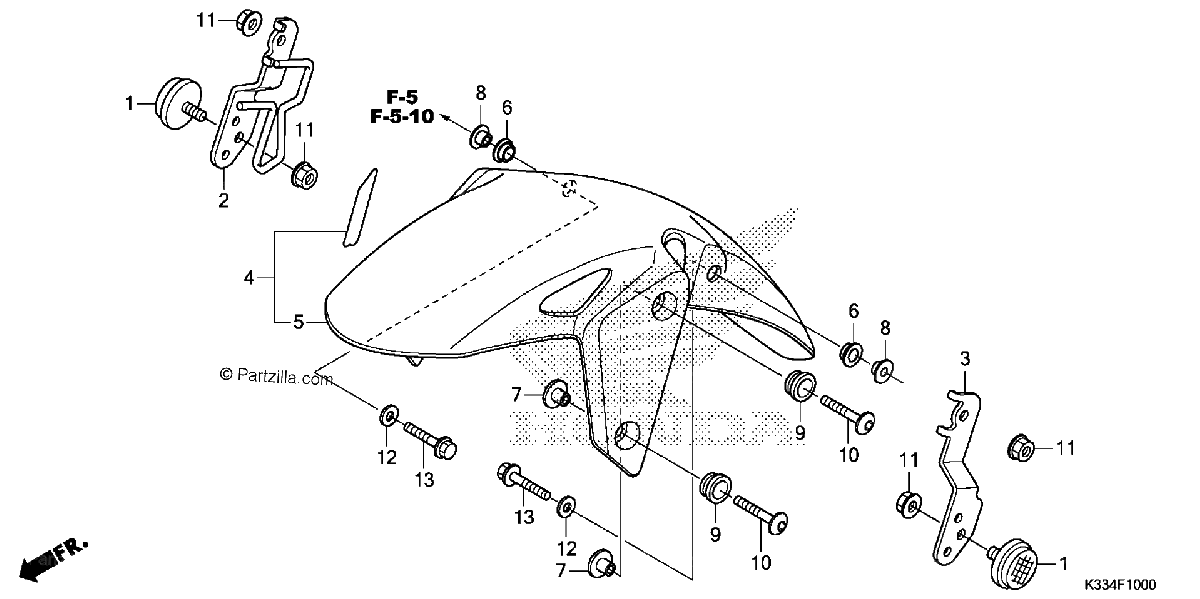

Diagrama de FRONT FENDER

Repuestos

#1
33741-KTG-U01
REFLECTOR, FR. REFLEX (AMBER)
$7.49¢3 744
1
#001
33741-KTG-U01
REFLECTOR, FR. REFLEX (AMBER)
$7.49¢3 744
1
#002
60114-KYJ-920
STAY, R. FR. SIDE REFLECTOR
$15.58¢7 788
1
#2
60114-KYJ-920
STAY, R. FR. SIDE REFLECTOR
$15.58¢7 788
1
#003
60115-KYJ-920
STAY, L. FR. SIDE REFLECTOR
$6.92¢3 463
1
#3
60115-KYJ-920
STAY, L. FR. SIDE REFLECTOR
$6.92¢3 463
1
#4
61000-K33-D10ZB
FENDER SET, Front. (TYPE2) (WL)
$75.31¢37 656
1
#004
61000-K33-D10ZB
FENDER SET, Front. (TYPE2) (WL)
$75.31¢37 656
1
#4
61000-K33-D10ZC
FENDER SET, Front. (TYPE1) (WL)
$80.84¢40 419
1
#004
61000-K33-D10ZC
FENDER SET, Front. (TYPE1) (WL)
$80.84¢40 419
1
#006
61103-KPF-910
RUBBER, FR. FENDER MOUNTING
$1.79¢894
1
#6
61103-KPF-910
RUBBER, FR. FENDER MOUNTING
$1.79¢894
1
#7
61103-KRY-900
COLLAR A, Front FENDER
$1.64¢819
1
#007
61103-KRY-900
COLLAR A, Front FENDER
$1.64¢819
1
#8
61105-KPF-910
COLLAR, Front FENDER MOUNTING
$1.60¢800
1
#008
61105-KPF-910
COLLAR, Front FENDER MOUNTING
$1.60¢800
1
#009
61105-KRY-900
RUBBER, FR. FENDER MOUNTING
$1.31¢656
1
#9
61105-KRY-900
RUBBER, FR. FENDER MOUNTING
$1.31¢656
1
#10
90130-KYJ-900
SCREW, PAN (6X22)
$1.06¢531
1
#010
90130-KYJ-900
SCREW, PAN (6X22)
$1.06¢531
1
#11
90301-KGH-901
NUT, U (6MM) (FUJI SEIMITSU)
$1.79¢894
1
#011
90301-KGH-901
NUT, U (6MM) (FUJI SEIMITSU)
$1.79¢894
1
#12
90485-286-000
WASHER (6MM)
$2.09¢1 044
1
#012
90485-286-000
WASHER (6MM)
$2.09¢1 044
1
#013
96001-06035-00
BOLT, FLANGE (6X35)
$1.80¢900
1
#13
96001-06035-00
BOLT, FLANGE (6X35)
$1.80¢900
1
