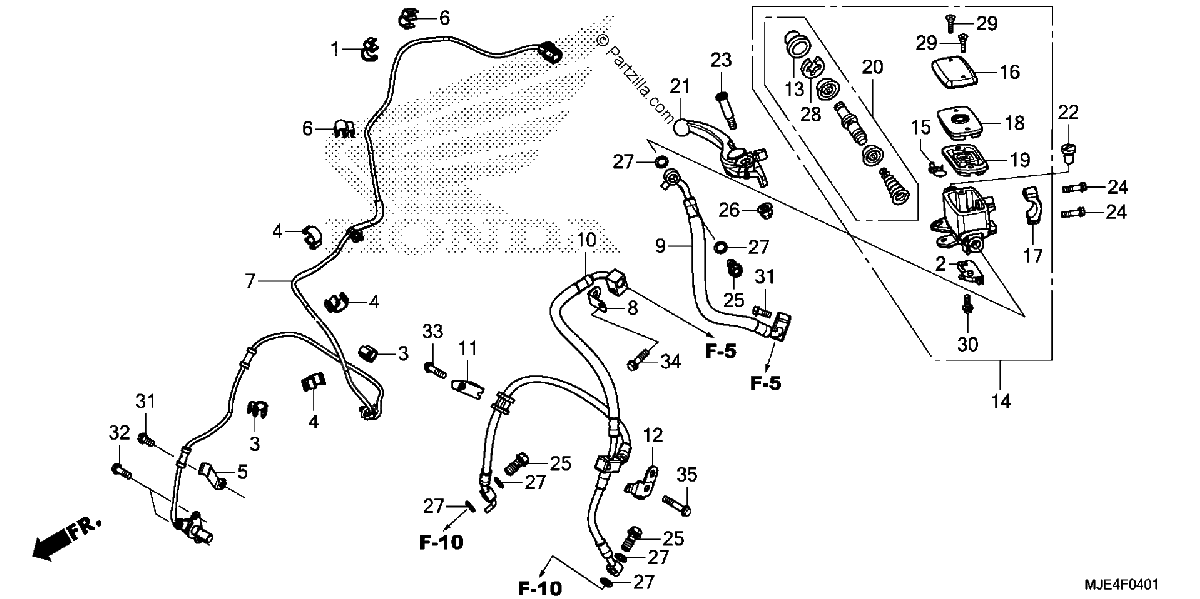

FRONT BRAKE MASTER CYLINDER CBR650FA
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CLAMP, PIPE
$7.95¢3 973
#2
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
#3
CLAMP, ABS WIRE (D8.5)
$3.68¢1 840
#4
CLAMP, ABS WIRE (D12)
$3.22¢1 610
#5
CLAMP, SENSOR WIRE
$6.11¢3 053
#6
CLAMP, ABS WIRE
$3.79¢1 897
#7
SENSOR, FR. WHEEL SPEED
$123.56¢61 778
#8
STAY, SENSOR WIRE
$3.75¢1 874
#9
HOSE A, FR. BRAKE
$43.32¢21 660
#10
HOSE B, FR. BRAKE
$141.10¢70 553
#11
CLAMP A, FR. BRAKE HOSE
$3.60¢1 800
#12
STAY, FR. BRAKE HOSE
$6.60¢3 301
#13
BOOT
$13.10¢6 549
#14
MASTER CYLINDER SUB-Assembly., Front.(COO) (NISSIN)
$125.94¢62 968
#15
PROTECTOR
$4.78¢2 392
#16
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
#17
HOLDER, MASTER CYLINDER
$14.48¢7 239
#18
PLATE, DIAPHRAGM
$11.37¢5 687
#19
DIAPHRAGM
$16.26¢8 131
#20
MASTER CYLINDER SET
$42.69¢21 344
#21
LEVER Assembly., Right HANDLE (COO)
$56.78¢28 388
#22
PLUG, HANDLE LEVER BRACKET
$2.94¢1 472
#23
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
#24
BOLT, FLANGE (6X22)
$0.56¢282
#25
BOLT, OIL (10X22)
$8.18¢4 088
#26
NUT, CAP (6MM)
$3.36¢1 679
#27
WASHER, OIL BOLT
$4.46¢2 231
#28
CIRCLIP
$2.85¢1 426
#29
SCREW, FLAT (4X12)
$1.07¢535
#29
SCREW, FLAT (4X12)
$1.07¢535
#30
SCREW-WASHER (4X12)
$1.59¢793
#30
SCREW-WASHER (4X12)
$1.59¢793
#31
BOLT, FLANGE (6X12)
$2.13¢1 064
#32
BOLT, FLANGE (6X16)
$1.24¢621
#33
BOLT, FLANGE (6X20)
$1.60¢799
#34
BOLT, FLANGE (6X25)
$1.59¢793
#35
BOLT, FLANGE (6X35)
$2.56¢1 282
