WIRE HARNESS

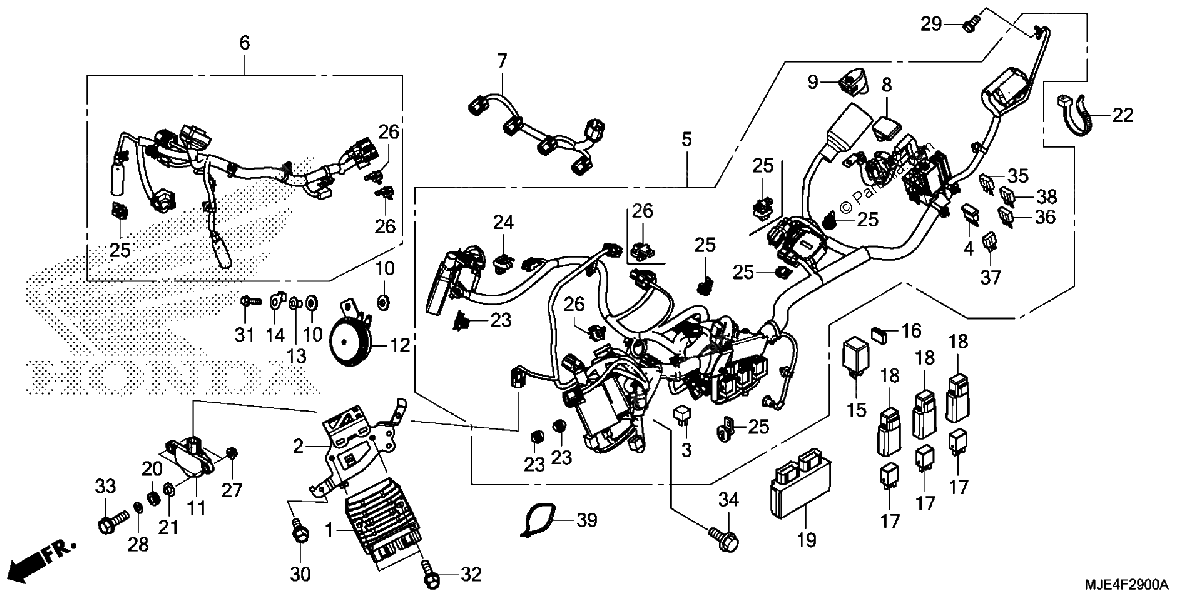

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RECTIFIER ASSY., REGULATOR
$219.18¢109 588
#2
STAY, REGULATOR
$35.58¢17 788
#3
RECTIFIER, SILICON
$30.66¢15 331
#4
DIODE ASSY., THREE WAY (SUMITOMO)
$12.64¢6 319
#5
WIRE HARNESS
$941.11¢470 556
#6
SUB-HARNESS, FR.
$80.88¢40 438
#7
SUB-HARNESS, INJECTOR
$31.29¢15 644
#8
COVER, STARTER MAGNETIC TERMINAL
$8.24¢4 119
#9
COVER, BATTERY TERMINAL
$14.80¢7 400
#10
RUBBER, TAILLIGHT BRACKET
$3.24¢1 619
#11
SENSOR ASSY., BANK ANGLE
$193.17¢96 587
#12
HORN (HIGH)
$45.09¢22 544
#13
COLLAR, HORN SETTING
$0.99¢494
#14
WASHER, HORN SETTING
$2.64¢1 319
#15
RELAY, TURN SIGNAL (MITSUBA)
$64.18¢32 088
#16
SUSPENSION, TURN SIGNAL RELAY
$6.90¢3 450
#17
RELAY, POWER (MICRO ISO 4P)
$12.59¢6 294
#18
SUSPENSION, POWER RELAY
$7.91¢3 956
#19
PGM-FI UNIT
$576.82¢288 412
#20
RUBBER, SIDE COVER
$2.50¢1 250
#21
COLLAR, BANK ANGLE SENSOR
$2.95¢1 475
#22
BAND, WIRE (95MM)
$3.77¢1 888
#23
CLIP, CONNECTOR (NATURAL)
$5.02¢2 512
#24
CLIP, CONNECTOR (BLACK)
$6.38¢3 188
#25
CLIP, CONNECTOR (DARK BROWN)
$5.02¢2 512
#26
CLIP, CONNECTOR (BLACK)
$4.45¢2 225
#27
NUT, FLANGE (6MM)
$0.80¢400
#28
WASHER, PLAIN (6MM)
$1.00¢500
#29
BOLT, FLANGE (6X12)
$2.31¢1 156
#30
BOLT, FLANGE (6X12)
$2.09¢1 044
#31
BOLT, FLANGE (6X20)
$2.09¢1 044
#32
BOLT, FLANGE (6X22)
$2.31¢1 156
#33
BOLT, FLANGE (6X22)
$2.21¢1 106
#34
BOLT, FLANGE (6X10)
$1.98¢988
#35
FUSE, MINI (7.5A)
$1.56¢781
#36
FUSE, MINI (10A)
$1.70¢850
#37
FUSE, MINI (20A)
$1.49¢744
#38
FUSE, MINI (30A)
$2.15¢1 075
#39
BAND, WIRE (BLACK)
$5.42¢2 713
