SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

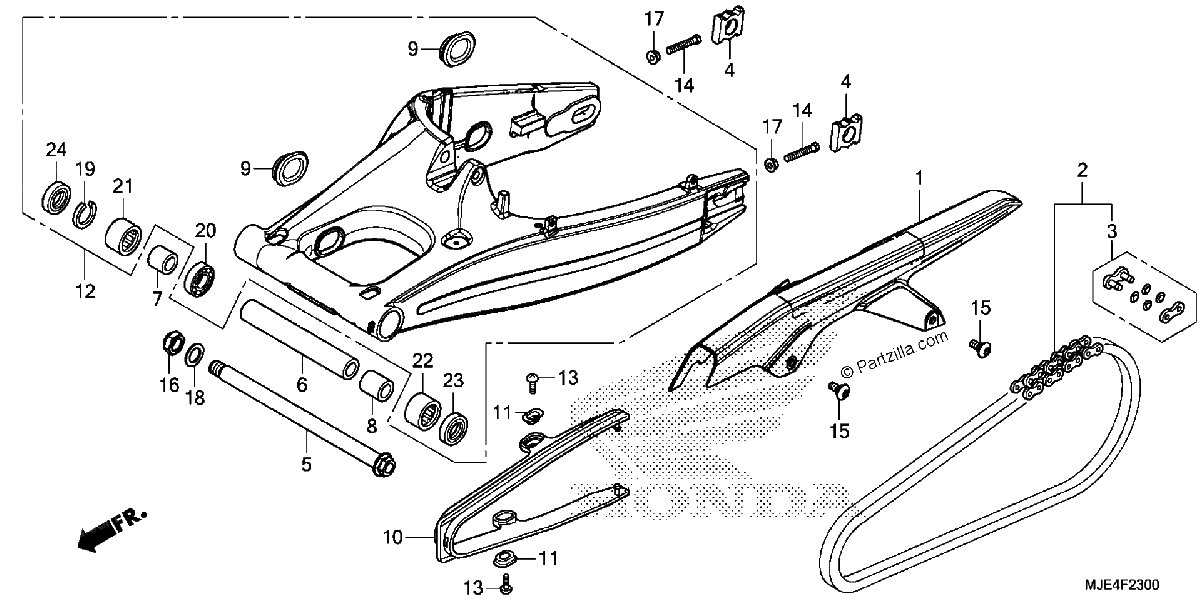

Diagrama de SWINGARM

Repuestos

#1
40511-MJE-D00
CASE, DRIVE CHAIN
$31.00¢15 500
1
#2
40540-MJE-D01
CHAIN, DRIVE (DID525V11-120ZB) (DAIDO)
$180.79¢90 394
1
#2
40540-MJE-D02
CHAIN, DRIVE (RK525KRW-120LJFZ) (RK EXCEL)
$280.68¢140 338
1
#3
40545-MJE-D01
MASTER LINK (DAIDO)
$21.66¢10 831
1
#3
40545-MJE-D02
MASTER LINK (RK JAPAN)
$35.92¢17 963
1
#4
42305-MJE-D00
COLLAR, Rear AXLE
$19.13¢9 563
1
#5
52101-MJE-D00
BOLT, SWINGARM PIVOT
$60.31¢30 156
1
#6
52141-MJE-D00
COLLAR, CENTER PIVOT DISTANCE
$24.36¢12 181
1
#7
52142-MJE-D00
COLLAR, Right PIVOT DISTANCE
$17.36¢8 681
1
#8
52143-MJE-D00
COLLAR, L PIVOT DISTANCE
$17.46¢8 731
1
#9
52161-KZZ-900
CAP, Rear SWINGARM
$3.43¢1 713
1
#10
52170-MJE-D00
SLIDER, CHAIN
$21.54¢10 769
1
#11
52171-KR6-000
WASHER, CHAIN SLIDER
$3.33¢1 663
1
#12
52200-MJE-D00
SWINGARM SUB-ASSY., RR.
$688.24¢344 119
1
#13
90104-KPP-900
SCREW, PAN (5X12)
$1.06¢531
1
#14
90106-MCF-D00
BOLT, HEX. (8X50)
$3.11¢1 556
1
#15
90115-MGZ-J00
SCREW, SPECIAL (6X14)
$1.38¢688
1
#16
90305-MJE-D01
NUT, U (18MM)
$13.63¢6 813
1
#17
90309-357-000
NUT, HEX. (8MM)
$4.13¢2 063
1
#18
90401-KZ4-890
WASHER (18X32X2)
$5.42¢2 713
1
#19
90651-MEW-920
CIRCLIP (INNER) (37)
$4.04¢2 019
1
#20
91054-MGS-D31
BEARING, RADIAL BALL (20X37X9)
$12.89¢6 444
1
#21
91055-MGS-D31
BEARING, NEEDLE (30X37X20)
$24.74¢12 369
1
#22
91071-MR7-003
BEARING, NEEDLE
$29.82¢14 913
1
#23
91202-MR7-003
DUST SEAL (28X37X4)
$7.70¢3 850
1
#24
91253-KZ3-861
DUST SEAL (30X37X4)
$10.15¢5 075
1
