REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

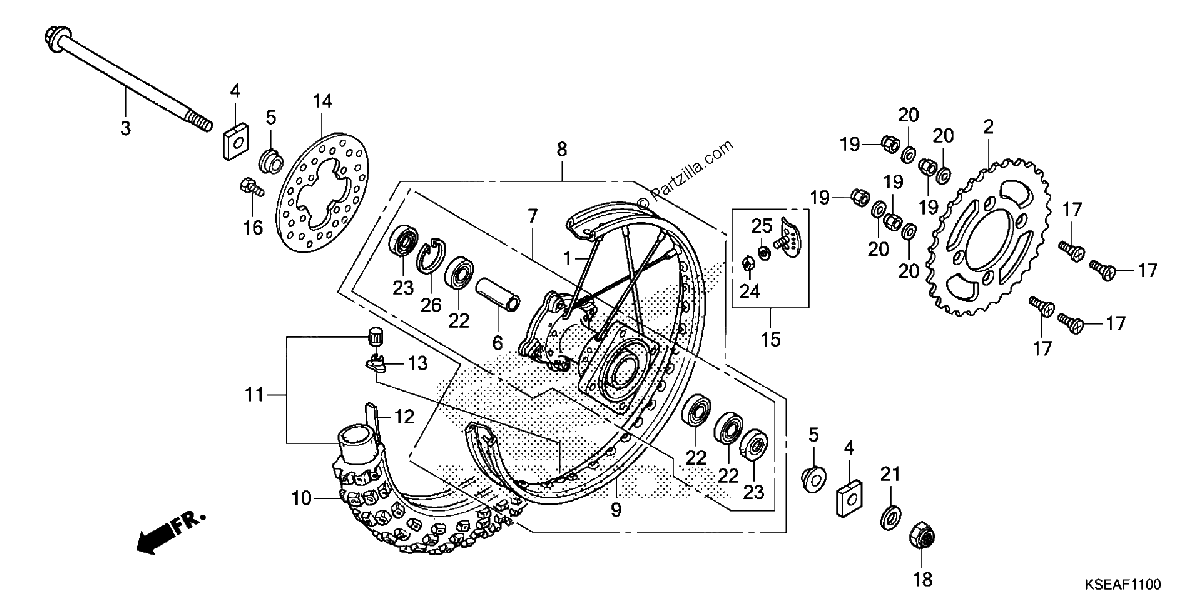

Diagrama de REAR WHEEL

Repuestos

#1
06420-KSE-840
SPOKE SET, RR.
$4.24¢2 122
1
#2
41201-GBF-860
SPROCKET, FINAL (55T) (SUNSTAR)
$221.83¢110 917
1
#2
41201-GBF-K10
SPROCKET, FINAL (56T) (SUNSTAR)
$158.35¢79 177
1
#2
41201-KSE-840
SPROCKET, FINAL DRIVEN (56T)
$69.17¢34 586
1
#2
41202-GBF-860
SPROCKET, FINAL (57T) (SUNSTAR)
$181.88¢90 942
1
#3
42301-KSE-000
AXLE, RR. WHEEL
$29.44¢14 720
1
#4
42305-KSE-000
COLLAR, RR. AXLE
$19.15¢9 574
1
#5
42311-KSE-000
COLLAR, RR. WHEEL SIDE
$16.99¢8 493
1
#6
42620-KSE-000
COLLAR, RR. WHEEL DISTANCE
$10.22¢5 112
1
#7
42635-KSE-670
HUB SUB-ASSY., RR.
$253.66¢126 828
1
#8
42650-KSE-840
WHEEL SUB-ASSY., RR.
$658.65¢329 326
1
#9
42701-KSE-841
RIM, RR. WHEEL
$292.08¢146 038
1
#10
42711-KSE-F61
TIRE, RR. (90/100-16 52M) (DUNLOP)
$100.00¢50 002
1
#11
42712-GBF-861
TUBE, TIRE (90/100-16) (DUNLOP)
$42.40¢21 200
1
#12
42713-GBF-861
FLAP, TIRE (1.85X16) (DUNLOP)
$7.28¢3 640
1
#13
42714-KA3-710
CAP, VALVE
$11.18¢5 589
1
#14
43351-KSE-000
DISK, RR. BRAKE
$191.22¢95 611
1
#15
42715-KA2-680
STOPPER, BEAD (1.85)
$34.48¢17 239
1
#16
90105-KAE-870
BOLT, DISK (6X17)
$3.36¢1 679
1
#17
90125-KA4-000
SCREW, FLAT (8X31)
$3.44¢1 719
1
#18
90305-GW2-711
NUT, U (16MM)
$17.49¢8 746
1
#19
90309-ML3-791
NUT, U (8MM) (FUSE RASHI)
$4.86¢2 432
1
#20
90465-MC4-000
WASHER (8MM)
$2.98¢1 489
1
#21
90501-GBM-750
WASHER (16MM)
$1.21¢604
1
#22
91051-KSE-003
BEARING, RADIAL BALL (6003)
$12.87¢6 434
1
#23
91205-VM6-003
DUST SEAL (23X35X7)
$10.32¢5 158
1
#24
94001-08000-0S
NUT, HEX. (8MM)
$1.54¢771
1
#25
94111-08000
WASHER, SPRING (8MM)
$1.12¢558
1
#26
94520-35000
CIRCLIP, INNER (35MM)
$2.30¢1 150
1
