FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

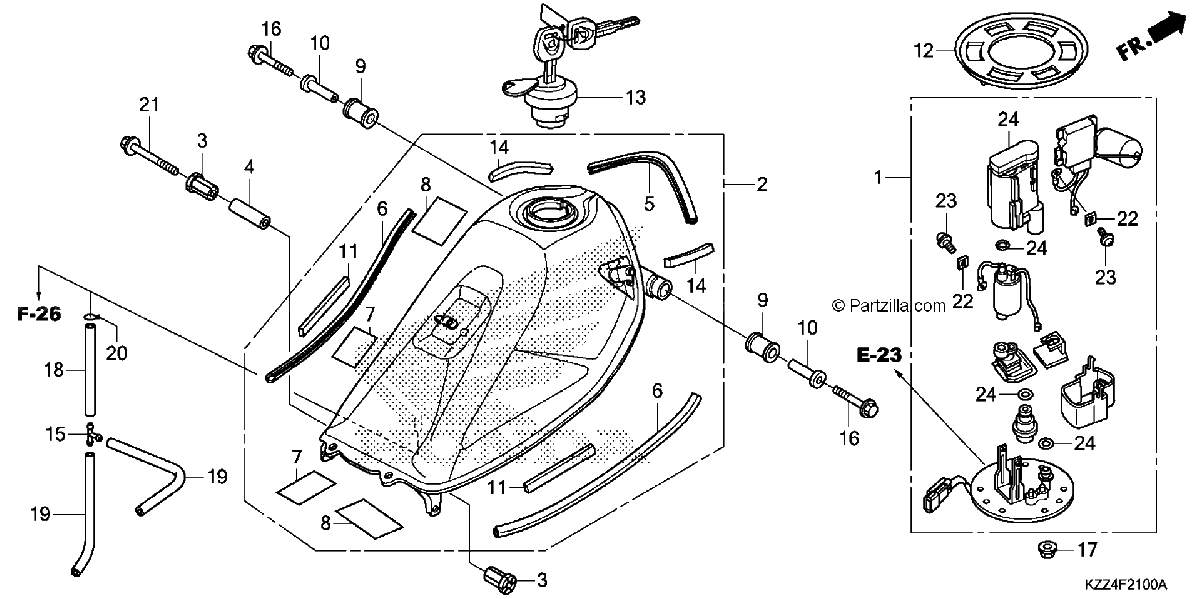

Diagrama de FUEL TANK

Repuestos

#1
16700-KZZ-901
PUMP ASSY., FUEL
$532.81¢266 406
1
#2
17500-KZZ-900ZB
TANK ASSY., FUEL *NH105* (MAT BLACK)
$209.04¢104 519
1
#3
17506-KZZ-900
CUSHION, FUEL TANK PIVOT
$2.56¢1 281
1
#4
17507-KZZ-900
COLLAR, TANK SET
$1.99¢994
1
#5
17516-KZZ-900
TRIM A, FUEL TANK
$8.14¢4 069
1
#6
17517-KZZ-900
TRIM B, FUEL TANK
$8.71¢4 356
1
#7
17521-KY1-300
SEAL, TANK
$2.97¢1 487
1
#8
17528-KCZ-930
TAPE B, TANK GUARD
$4.80¢2 400
1
#9
17534-MFJ-D00
RUBBER, RR. TANK MOUNTING
$5.76¢2 881
1
#10
17538-KZZ-900
COLLAR
$3.01¢1 506
1
#11
17544-KZZ-900
RUBBER, TANK GUARD
$1.21¢606
1
#12
17574-KZZ-910
GASKET, BASE
$39.29¢19 644
1
#13
17620-MEG-003
CAP, FUEL FILLER (HONDALOCK)
$99.63¢49 813
1
#14
17850-KZZ-900
CUSHION, SHROUD
$1.27¢638
1
#16
90004-GHB-710
BOLT, FLANGE (6X40) (NSHF)
$4.94¢2 469
1
#17
94050-06080
NUT, FLANGE (6MM)
$0.80¢400
1
#21
96001-06065-00
BOLT, FLANGE (6X65)
$3.01¢1 506
1
#22
16711-MGS-D31
STOPPER
$6.23¢3 113
1
#23
16712-MGS-D31
SCREW (4X6.6)
$2.41¢1 206
1
#24
16730-MGS-D31
FILTER Assembly., FUEL
No Disponible
1
