HANDLE LEVER SWITCH CABLE MIRROR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

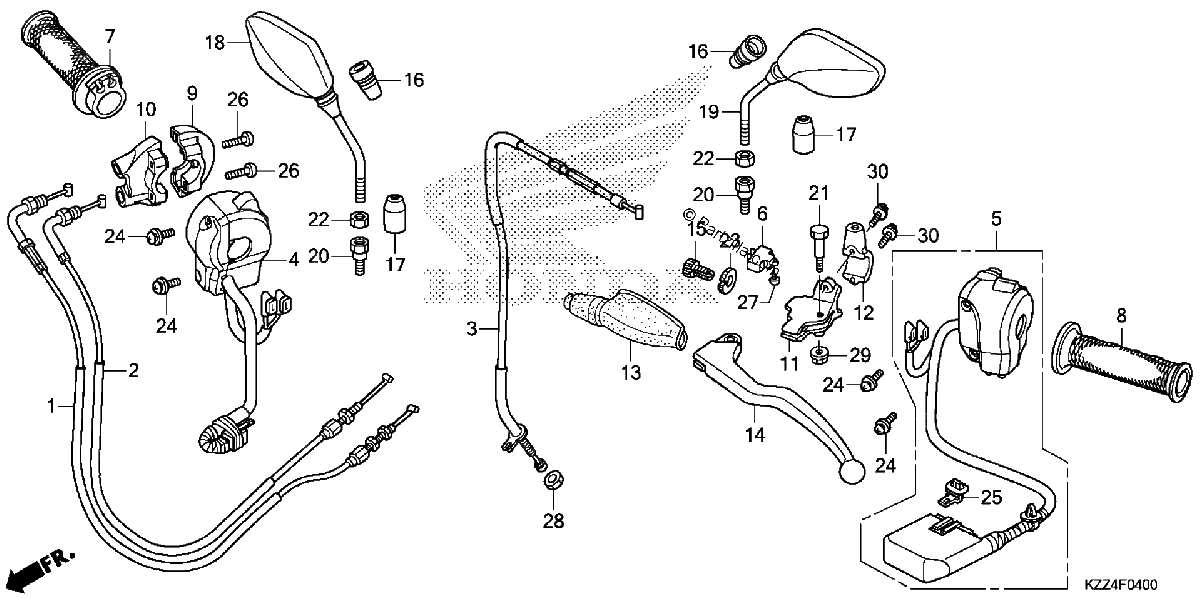

Diagrama de HANDLE LEVER SWITCH CABLE MIRROR

Repuestos

#1
17910-KZZ-900
CABLE A, THROTTLE
$14.10¢7 049
1
#2
17920-KZZ-900
CABLE B, THROTTLE
$13.35¢6 676
1
#3
22870-KZZ-900
CABLE, CLUTCH
$16.57¢8 286
1
#4
35130-KZZ-901
SWITCH ASSY., ENGINE STOP
$104.89¢52 446
1
#5
35200-KZZ-911
SWITCH ASSY., TURN SIGNAL
$46.76¢23 379
1
#6
35330-MK5-003
SWITCH ASSY., CLUTCH
$19.11¢9 557
1
#7
53140-KZZ-305
GRIP, THROTTLE (COO)
$8.84¢4 422
1
#8
53150-KZZ-305
GRIP, L. HANDLE (COO)
$9.11¢4 554
1
#9
53167-MGS-D30
HOUSING, THROTTLE (UPPER) (Rear.)
$18.01¢9 005
1
#10
53168-MGS-D30
HOUSING, THROTTLE (LOWER) (Front.)
$19.19¢9 597
1
#11
53172-KZZ-900
BRACKET, L. HANDLE LEVER
$15.44¢7 722
1
#12
53174-KZZ-900
HOLDER, L. LEVER BRACKET
$16.79¢8 395
1
#13
53177-KZZ-900
COVER, L. HANDLE LEVER
$3.36¢1 679
1
#14
53178-KZZ-305
LEVER, L. HANDLE (COO)
$12.75¢6 377
1
#15
53192-268-000
BOLT, WIRE ADJUSTING
$7.29¢3 645
1
#16
88114-KWN-900
BOOT, MIRROR
$2.01¢1 006
1
#17
88115-KWN-900
CAP, LOCK NUT
$1.91¢954
1
#18
88210-KWN-305
MIRROR, R. (COO)
$22.55¢11 276
1
#19
88220-KWN-305
MIRROR, L. (COO)
$22.55¢11 276
1
#20
90103-KZR-701
BOLT B, ADAPTER (10MM)
$1.54¢771
1
#21
90113-HA0-770
BOLT, HANDLE LEVER PIVOT
$4.08¢2 041
1
#22
90301-KWW-640
NUT, HEX. (10MM) (LEFT HAND THREAD)
$1.28¢638
1
#23
90321-315-670
NUT, FIXING
$8.15¢4 077
1
#24
90508-KZZ-900
SCREW-WASHER (5X16)
$1.68¢839
1
#25
91533-S04-003
CLIP, CONNECTOR (NATURAL)
$4.62¢2 311
1
#26
93500-05022-0G
SCREW, PAN (5X22)
$1.09¢546
1
#27
93901-32320
SCREW, TAPPING (3X12)
$1.02¢512
1
#28
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#29
94050-06070
NUT, FLANGE (6MM)
$1.71¢857
1
#30
96001-06020-07
BOLT, FLANGE (6X20)
$1.60¢799
1
