STEERING STEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

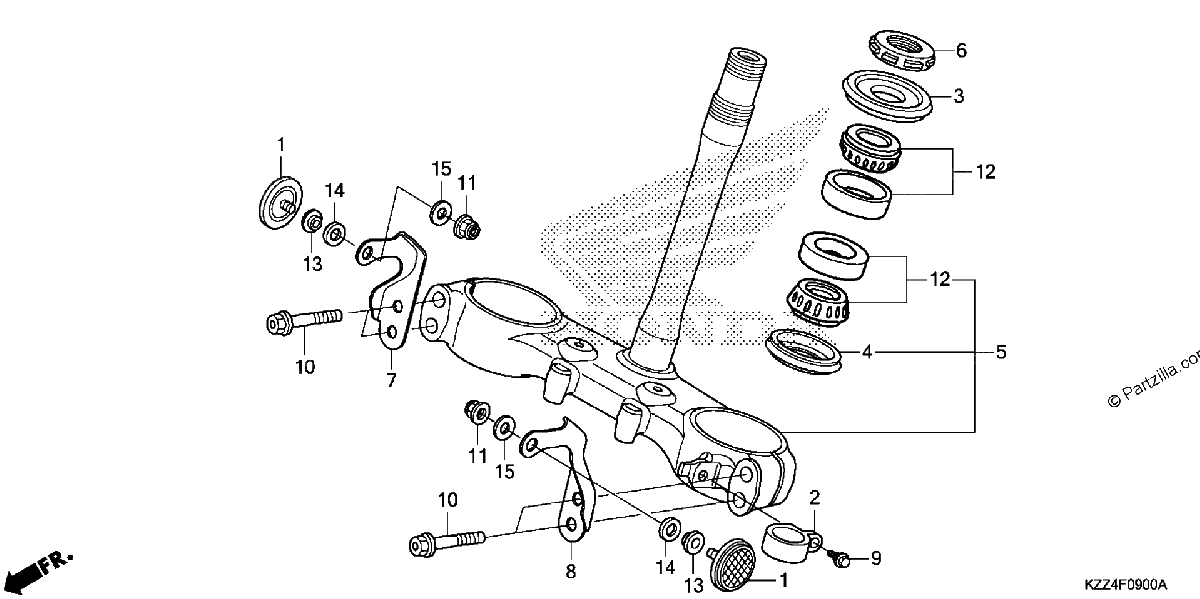

Diagrama de STEERING STEM

Repuestos

#1
33741-KTG-U01
REFLECTOR, FR. REFLEX (AMBER)
$7.49¢3 744
1
#2
45468-KZZ-900
GUIDE, FR. BRAKE HOSE
$10.65¢5 325
1
#3
53214-KZZ-901
DUST SEAL, STEERING (UPPER)
$7.13¢3 563
1
#4
53214-MCJ-751
DUST SEAL, STEERING HEAD (ARAI)
$5.25¢2 625
1
#5
53219-KZZ-900
STEM SUB-ASSY., STEERING
$151.68¢75 838
1
#6
53229-MN1-650
THREAD, STEERING HEAD TOP
$17.79¢8 894
1
#7
60114-KZZ-910
BRACKET, R. SIDE REFLECTOR
$26.05¢13 025
1
#8
60115-KZZ-910
BRACKET, L. SIDE REFLECTOR
$26.05¢13 025
1
#9
90113-KZZ-900
BOLT, FLANGE (6MM)
$0.70¢350
1
#10
90155-KZZ-900
BOLT, FLANGE (8X45)
$1.02¢513
1
#11
90301-VK9-A31
NUT, U (6MM)
$1.15¢575
1
#12
91015-425-832
BEARING, HEAD PIPE (UPPER) (NACHI)
$36.00¢18 000
1
#12
91015-425-831
BEARING, HEAD PIPE (UPPER) (NTN)
$36.00¢18 000
1
#13
61101-KZZ-910
COLLAR, REFLECTOR
$1.19¢594
1
#14
61106-KW6-840
RUBBER B, MOUNTING
$1.99¢994
1
#15
94101-06000
WASHER, PLAIN (6MM)
$0.84¢419
1
#15
94101-06080
WASHER, PLAIN (6MM)
$0.84¢419
1
#15
94101-06800
WASHER, PLAIN (6MM)
$0.84¢419
1
