SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

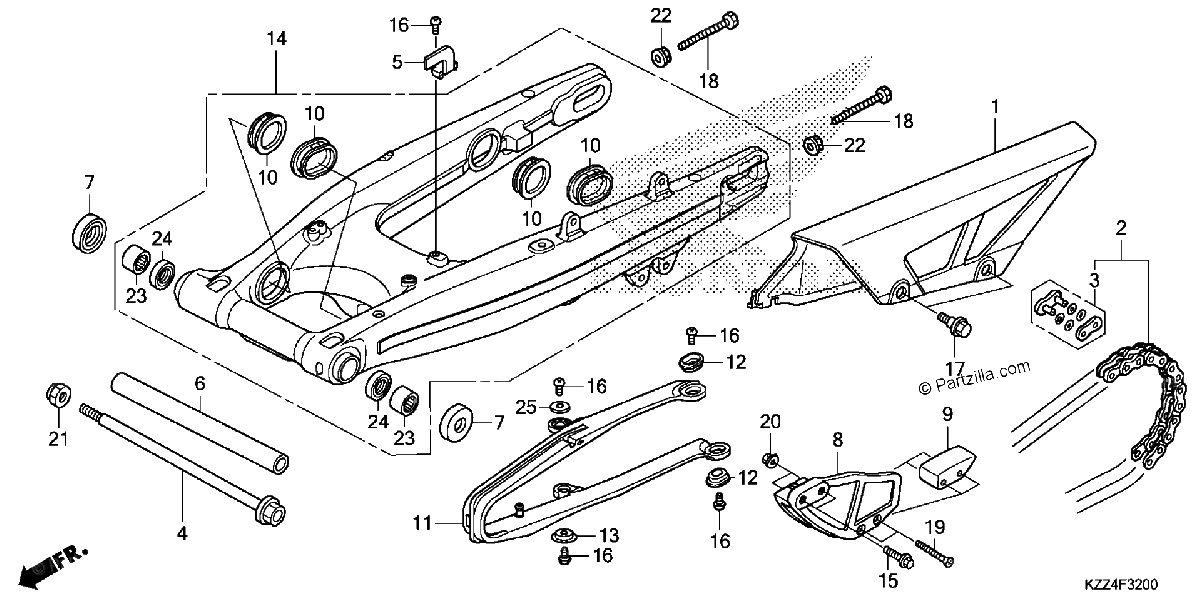

Diagrama de SWINGARM

Repuestos

#1
40510-KZZ-900
CASE, DRIVE CHAIN
$17.91¢8 956
1
#2
40540-KYJ-902
CHAIN, DRIVE (DID520VF-120ZB) (DAIDO)
$160.88¢80 438
1
#3
40545-KYJ-902
MASTER LINK (DAIDO)
$16.90¢8 450
1
#4
52101-KZZ-900
BOLT, SWINGARM PIVOT
$17.46¢8 731
1
#5
52131-KZZ-900
STAY, CHAIN CASE
$1.50¢750
1
#6
52141-KZZ-900
COLLAR, CENTER PIVOT DISTANCE
$70.71¢35 356
1
#7
52144-356-005
CAP, SWINGARM DUST SEAL (NOK)
$20.25¢10 125
1
#8
52146-KV6-010
GUIDE, CHAIN
$39.42¢19 713
1
#9
52147-KV6-010
SLIDER, CHAIN GUIDE
$24.28¢12 138
1
#10
52161-KZZ-900
CAP, Rear SWINGARM
$3.43¢1 713
1
#11
52170-KZZ-900
SLIDER, CHAIN
$22.52¢11 263
1
#12
52171-KR6-000
WASHER, CHAIN SLIDER
$3.33¢1 663
1
#13
52171-MAN-620
WASHER, CHAIN SLIDER
$4.14¢2 069
1
#14
52200-KZZ-900
SWINGARM SUB-ASSY., RR.
$792.38¢396 188
1
#15
90103-KZZ-900
BOLT, FLANGE (6X20)
$1.19¢594
1
#16
90104-KPP-900
SCREW, PAN (5X12)
$1.06¢531
1
#17
90111-KZZ-900
BOLT, FLANGE (6MM)
$0.83¢413
1
#18
90112-KZZ-900
BOLT, HEX. (8X47.5)
$1.27¢638
1
#19
90115-KZZ-900
SCREW, FLAT (6X53)
$0.93¢463
1
#20
90301-KGH-901
NUT, U (6MM) (FUJI SEIMITSU)
$1.79¢894
1
#21
90305-KCJ-951
NUT, U (14MM) (FUJI SEIMITSU)
$7.56¢3 781
1
#22
90309-357-000
NUT, HEX. (8MM)
$4.13¢2 063
1
#23
91070-GC4-601
BEARING, NEEDLE (20X26X20) (NTN)
$28.71¢14 356
1
#24
91254-KS6-003
DUST SEAL (20X26X4.5) (ARAI)
$10.76¢5 381
1
#25
94103-05700
WASHER, PLAIN (5MM)
$1.21¢606
1
