REAR FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

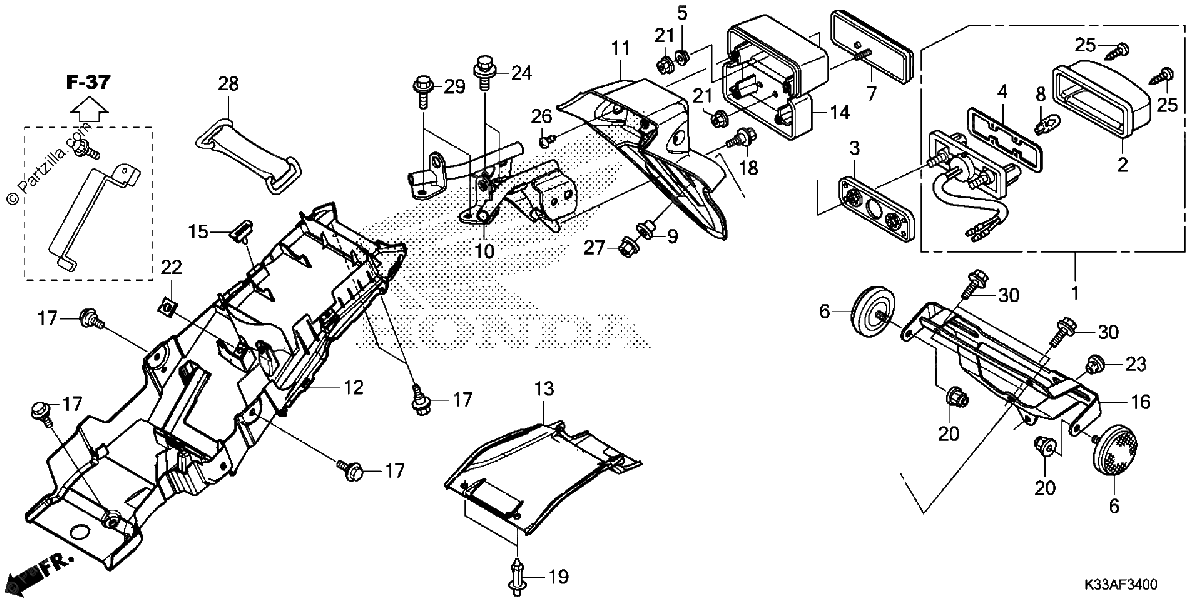

Diagrama de REAR FENDER

Repuestos

#1
33720-K33-305
LIGHT ASSY., LICENSE (12V 5W) (COO)
$39.48¢19 740
1
#1
33720-K33-A01
LIGHT ASSY., LICENSE (12V 5W)
$39.48¢19 740
1
#2
33723-KYJ-901
COVER
$24.27¢12 133
1
#3
33728-KPP-T00
RUBBER, LICENSE LIGHT
$5.07¢2 536
1
#4
33729-KSP-B01
GASKET, LENS
$3.83¢1 915
1
#5
33731-MJ0-940
COLLAR, REGULATOR MOUNTING
$2.83¢1 414
1
#6
33741-HB9-641
REFLECTOR, Rear REFLEX (RED)
$14.26¢7 130
1
#7
33741-KPL-902
REFLECTOR, REFLEX
$8.22¢4 111
1
#8
34903-K29-902
BULB, LICENSE LIGHT (12V 5W) (W5W) (LIFE ELEX)
$2.59¢1 294
1
#9
44125-MN5-000
COLLAR, Front WHEEL COVER
$5.70¢2 852
1
#10
50186-K33-D00
STAY, Rear FENDER
$78.33¢39 163
1
#11
80100-KPP-T00
FENDER, RR.
$25.81¢12 903
1
#12
80101-K33-D00
FENDER B, RR.
$23.86¢11 931
1
#13
80140-K33-D00
COVER, Rear. (LOWER)
$5.43¢2 714
1
#14
80201-KYJ-920
BRACKET, LICENSE LIGHT
$9.15¢4 577
1
#15
83705-K33-D00
PLUG, RUBBER
$2.69¢1 346
1
#16
84700-KYJ-920
BRACKET, NUMBER PLATE
$19.81¢9 907
1
#17
90111-162-000
BOLT, FLANGE (6MM)
$3.36¢1 679
1
#18
90111-187-000
BOLT, FLANGE (6MM)
$6.24¢3 122
1
#19
90116-SP0-003
CLIP, BUMPER SEAL
$5.27¢2 633
1
#20
90301-KGH-901
NUT, U (6MM) (FUJI SEIMITSU)
$1.64¢822
1
#21
90301-KWN-901
NUT, U (5MM)
$0.79¢397
1
#22
90320-MM5-000
NUT, SPRING (6MM)
$3.36¢1 679
1
#23
90852-446-630
PLUG, HOLE
$3.04¢1 518
1
#24
93404-06014-00
BOLT-WASHER (6X14)
$1.12¢558
1
#25
93901-24480
SCREW, TAPPING (4X16)
$0.98¢489
1
#26
93903-44380
SCREW, TAPPING (4X12)
$1.07¢535
1
#27
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#28
95012-15001
BAND, BATTERY (132MM)
$7.05¢3 525
1
#29
95701-08012-00
BOLT, FLANGE (8X12)
$1.33¢667
1
#30
96001-06014-07
BOLT, FLANGE (6X14)
$1.41¢707
1
