FRONT FORK 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

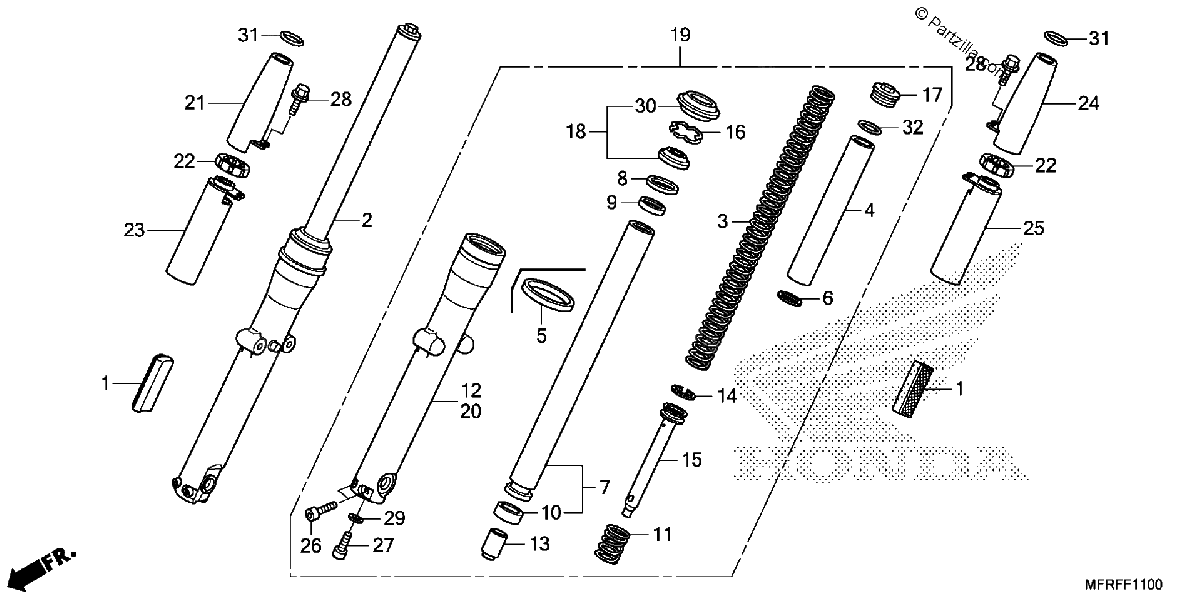

Diagrama de FRONT FORK 1

Repuestos

#1
33740-MFR-B11
REFLECTOR, FR. REFLEX
$41.31¢20 654
1
#2
51400-MFR-307
FORK ASSY., R. FR. (COO) (SHOWA)
$1145.69¢572 844
1
#2
51400-MFY-305
FORK ASSY., R. FR. (COO) (SHOWA)
$1041.30¢520 651
1
#3
51401-MFY-A01
SPRING, FR. FORK
$97.86¢48 932
1
#4
51402-KV3-701
COLLAR, SPRING (SHOWA)
$25.63¢12 817
1
#6
51404-MB4-003
PLATE, SPRING JOINT
$5.51¢2 754
1
#7
51410-MFY-A01
PIPE, FR. FORK
$472.71¢236 354
1
#8
51412-MB4-003
RING, BACK-UP (SHOWA)
$10.38¢5 192
1
#9
51414-MFJ-A51
BUSH, GUIDE
$8.10¢4 048
1
#10
51415-MFJ-A51
BUSH, SLIDER
$8.10¢4 048
1
#11
51416-MM8-881
SPRING, FR. REBOUND (SHOWA)
$6.57¢3 283
1
#12
51420-MFY-A01
CASE, R. (LOWER)
$471.20¢235 600
1
#13
51432-MV9-003
PIECE, OIL LOCK (SHOWA)
$26.52¢13 259
1
#14
51437-MB4-003
RING, PISTON
$10.30¢5 152
1
#15
51440-MFY-A01
PIPE, SEAT
$51.58¢25 789
1
#16
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#17
51454-MM9-671
BOLT, FR. FORK
$40.97¢20 487
1
#18
51490-MER-R61
SEAL SET, Front FORK
$24.32¢12 161
1
#19
51500-MFR-307
FORK ASSY., L. FR. (COO) (SHOWA)
No Disponible
1
#19
51500-MFY-305
FORK ASSY., L. FR. (COO) (SHOWA)
$1041.30¢520 651
1
#20
51520-MFY-A01
CASE, L. (LOWER)
$471.20¢235 600
1
#26
90109-MCR-D00
BOLT, SOCKET (8X35)
$3.36¢1 679
1
#27
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
1
#29
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
1
#30
91254-MEE-D01
DUST SEAL (SHOWA)
$9.20¢4 600
1
#32
91356-KF0-003
O-RING (33.2X2.4)
$4.20¢2 099
1
