FRONT BRAKE MASTER CYLINDER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

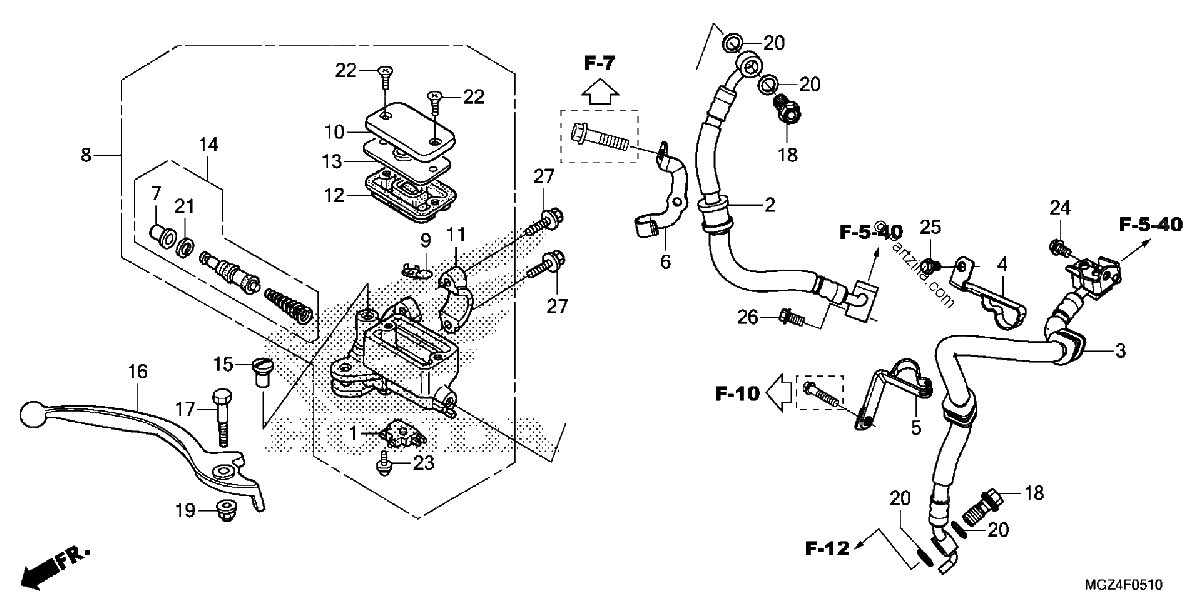

Diagrama de FRONT BRAKE MASTER CYLINDER 2

Repuestos

#1
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
1
#001
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
1
#2
45125-MGZ-J11
HOSE A, Front BRAKE
$33.59¢16 796
1
#002
45125-MGZ-J11
HOSE A, Front BRAKE
$33.59¢16 796
1
#3
45126-MGZ-J11
HOSE B, Front BRAKE
$76.58¢38 289
1
#003
45126-MGZ-J11
HOSE B, Front BRAKE
$76.58¢38 289
1
#004
45155-MGZ-J10
CLAMP A, FR. BRAKE HOSE
$4.73¢2 363
1
#4
45155-MGZ-J10
CLAMP A, FR. BRAKE HOSE
$4.73¢2 363
1
#005
45156-MGZ-J10
CLAMP B, FR. BRAKE HOSE
$2.35¢1 173
1
#5
45156-MGZ-J10
CLAMP B, FR. BRAKE HOSE
$2.35¢1 173
1
#006
45157-MGZ-J00
CLAMP C, FR. BRAKE HOSE
$3.42¢1 708
1
#6
45157-MGZ-J00
CLAMP C, FR. BRAKE HOSE
$3.42¢1 708
1
#7
45504-410-003
BOOT
$13.10¢6 549
1
#007
45504-410-003
BOOT
$13.10¢6 549
1
#8
45510-MGZ-315
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$144.55¢72 277
1
#008
45510-MGZ-315
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$144.55¢72 277
1
#9
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#009
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#10
45513-HR0-305
CAP, MASTER CYLINDER (COO)
$4.63¢2 317
1
#010
45513-HR0-305
CAP, MASTER CYLINDER (COO)
$4.63¢2 317
1
#010
45513-KK1-771
CAP, MASTER CYLINDER
$4.63¢2 317
1
#10
45513-KK1-771
CAP, MASTER CYLINDER
$4.63¢2 317
1
#11
45517-166-006
HOLDER, MASTER CYLINDER
$14.48¢7 239
1
#011
45517-166-006
HOLDER, MASTER CYLINDER
$14.48¢7 239
1
#012
45520-GE2-006
DIAPHRAGM
$10.00¢5 002
1
#12
45520-GE2-006
DIAPHRAGM
$10.00¢5 002
1
#12
45520-MG7-006
DIAPHRAGM
$11.33¢5 664
1
#13
45521-K21-901
PLATE, DIAPHRAGM
$2.69¢1 346
1
#013
45521-K21-901
PLATE, DIAPHRAGM
$2.69¢1 346
1
#14
45530-471-831
MASTER CYLINDER SET
$42.69¢21 344
1
#014
45530-471-831
MASTER CYLINDER SET
$42.69¢21 344
1
#15
53174-116-670
PLUG, HANDLE LEVER BRACKET
$2.94¢1 472
1
#015
53174-116-670
PLUG, HANDLE LEVER BRACKET
$2.94¢1 472
1
#16
53175-KYJ-305
LEVER, R. HANDLEBAR (COO)
$17.54¢8 769
1
#016
53175-KYJ-305
LEVER, R. HANDLEBAR (COO)
$17.54¢8 769
1
#17
90114-166-006
BOLT, HANDLE LEVER PIVOT
$7.24¢3 622
1
#017
90114-166-006
BOLT, HANDLE LEVER PIVOT
$7.24¢3 622
1
#18
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#018
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#019
90202-KCW-870
NUT, CAP (6MM)
$3.36¢1 679
1
#19
90202-KCW-870
NUT, CAP (6MM)
$3.36¢1 679
1
#20
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#020
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#21
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#021
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#22
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#022
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#022
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#22
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#23
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#023
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#023
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#23
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#24
95701-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#024
95701-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#025
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#25
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#026
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#26
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#027
96001-06022-07
BOLT, FLANGE (6X22)
$2.18¢1 092
1
#27
96001-06022-07
BOLT, FLANGE (6X22)
$2.18¢1 092
1
