TOP SHELTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

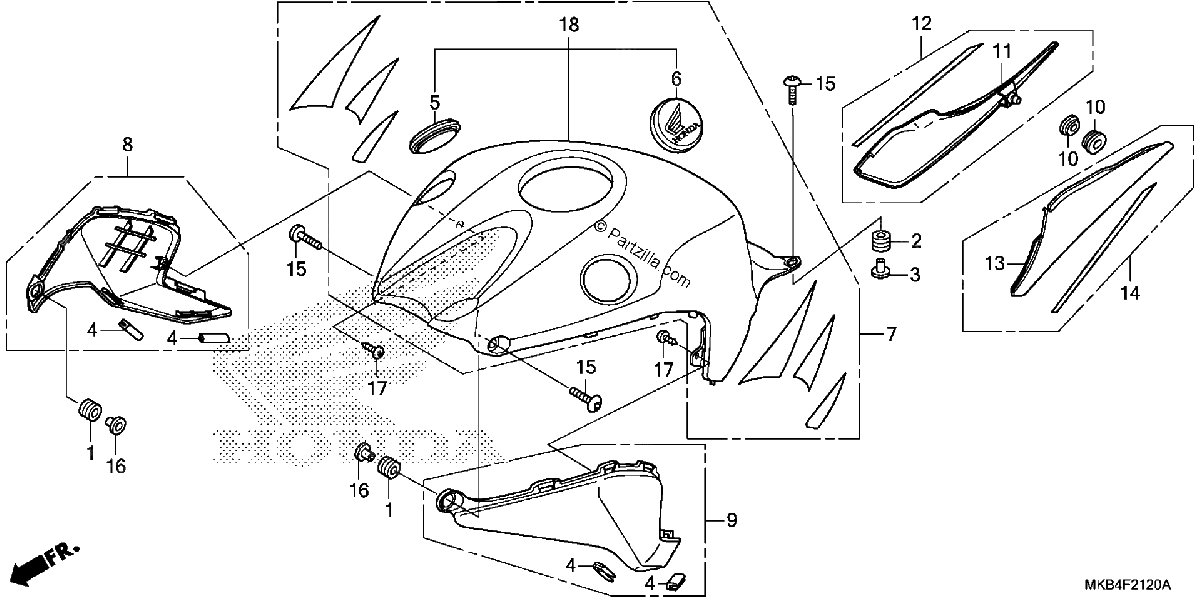

Diagrama de TOP SHELTER

Repuestos

#1
17227-GS3-000
RUBBER, AIR CLEANER MOUNTING
$3.39¢1 696
1
#2
33181-MBB-000
RUBBER, POSITION LIGHT
$5.29¢2 645
1
#3
33712-GC6-000
COLLAR, TAILLIGHT
$3.36¢1 679
1
#4
64121-MEL-000
RUBBER, PROTECTOR
$2.42¢1 208
1
#5
64503-MFL-000
BADGE, R. PRODUCT
$41.08¢20 539
1
#6
64508-MFL-000
BADGE, L. PRODUCT
$41.08¢20 539
1
#7
83150-MKB-A60ZA
SHELTER SET, TOP (TYPE1) (WL)
$1409.92¢704 961
1
#8
83165-MGP-D00
COVER, R. AIR CLEANER SIDE
$32.79¢16 393
1
#9
83166-MGP-D00
COVER, L. AIR CLEANER SIDE
$32.79¢16 393
1
#10
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
1
#11
83600-MGP-D00ZB
COVER, Right SIDE R334 (VICTORY RED)
$28.13¢14 064
1
#13
83700-MGP-D00ZB
COVER, L SIDE R334 (VICTORY RED)
$28.13¢14 064
1
#15
90115-MFL-D20
SCREW, PAN (6X20)
$2.43¢1 213
1
#16
90502-KGB-610
COLLAR, HEAD SIDE COVER
$2.51¢1 254
1
#17
93903-24280
SCREW, TAPPING (4X10)
$1.60¢799
1
