STEP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

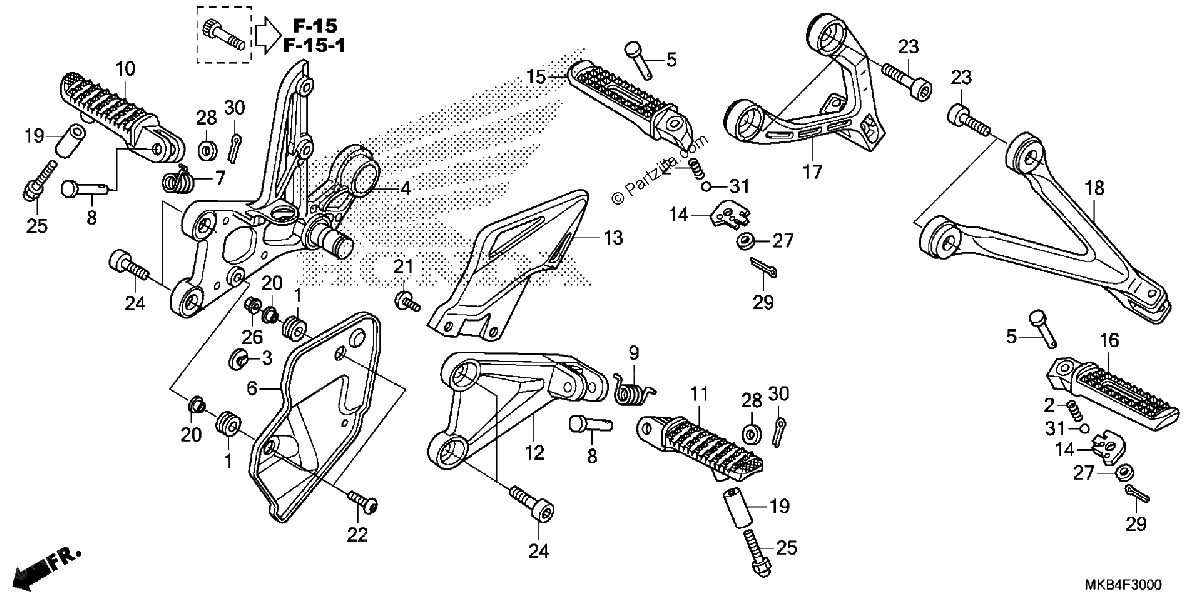

Diagrama de STEP

Repuestos

#1
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.59¢1 294
1
#2
28333-300-000
SPRING, KICK STARTER STOPPER
$3.36¢1 679
1
#3
40514-377-000
PLUG, CHAIN CASE
$3.06¢1 529
1
#4
50600-MGP-D60
HOLDER, R. MAIN STEP
$142.90¢71 450
1
#5
50603-MFL-D20
PIN C, PILLION STEP
$2.74¢1 368
1
#6
50610-MFL-000
GUARD, MAIN STEP HEAT
$15.29¢7 648
1
#7
50617-MCJ-750
SPRING, R. STEP RETURN
$4.74¢2 369
1
#8
50639-MFL-D20
PIN, STEP BAR
$3.36¢1 679
1
#9
50644-MCJ-750
SPRING, L. STEP RETURN
$4.74¢2 369
1
#10
50660-MEL-305
ARM, R. MAIN STEP (COO)
$53.47¢26 737
1
#11
50665-MEL-305
ARM, L. MAIN STEP (COO)
$53.07¢26 536
1
#12
50700-MGP-D60
HOLDER, L. MAIN STEP
$95.09¢47 547
1
#13
50707-MFL-000
GUARD, L. STEP
$41.49¢20 746
1
#14
50718-MEE-D00
PLATE, PILLION STEP CLICK
$3.13¢1 564
1
#15
50720-MEL-305
ARM, R. PILLION STEP (COO)
$55.41¢27 704
1
#16
50730-MEL-305
ARM, L. PILLION STEP (COO)
$62.07¢31 033
1
#17
50750-MFL-D20
HOLDER, R. PILLION STEP
$131.93¢65 964
1
#18
50760-MFL-D20
HOLDER, L. PILLION STEP
$131.93¢65 964
1
#19
51486-MEL-000
COLLAR, STEP (LOWER)
$4.50¢2 248
1
#20
84706-415-000
COLLAR
$2.77¢1 386
1
#21
90106-MAV-000
SCREW, PAN
$2.59¢1 294
1
#22
90115-MEL-000
SCREW, PAN (5X15)
$2.24¢1 121
1
#23
90130-MFL-000
BOLT, SOCKET (8X20)
$2.24¢1 121
1
#24
90157-MFL-D20
BOLT, SOCKET (8X22)
$3.93¢1 967
1
#25
92501-06050-0A
BOLT, CAP (6X50)
$3.36¢1 679
1
#26
94050-05070
NUT, FLANGE (5MM)
$1.53¢765
1
#27
94101-06000
WASHER, PLAIN (6MM)
$0.77¢385
1
#27
94101-06080
WASHER, PLAIN (6MM)
$0.77¢385
1
#27
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#28
94102-08000
WASHER, PLAIN (8MM)
$1.06¢529
1
#29
94201-20120
PIN, SPLIT (2.0X12)
$1.17¢586
1
#30
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#31
96211-08000
BALL, STEEL (#8) (1/4)
$1.47¢736
1
