FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

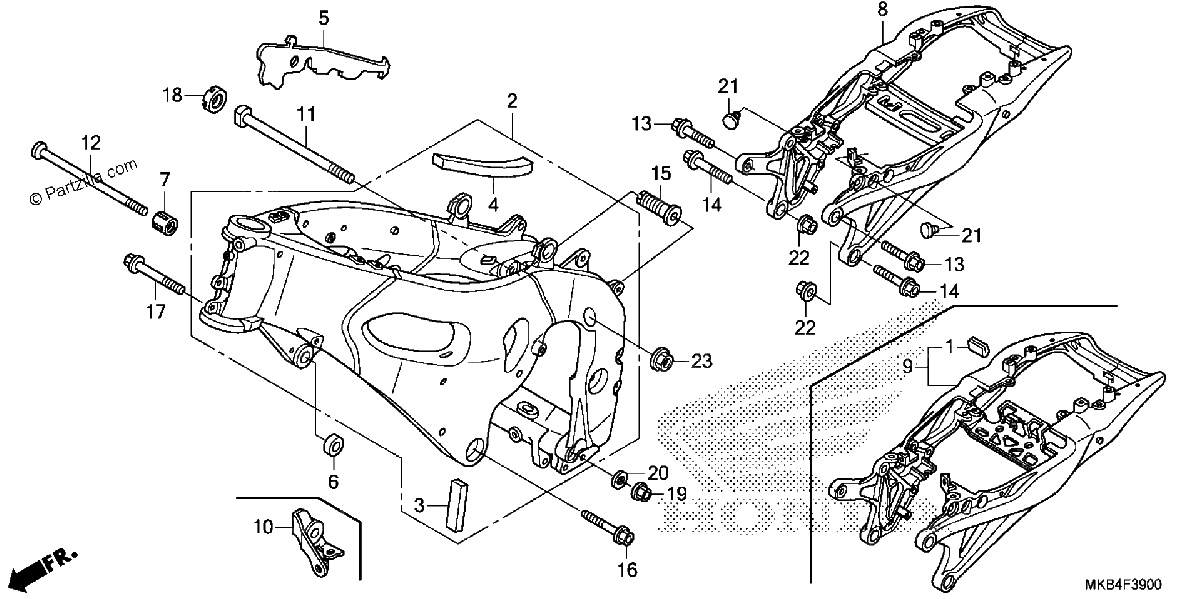

Diagrama de FRAME

Repuestos

#1
17516-KCZ-000ZB
TRIM, FUEL TANK NH1 (BLACK)
$2.39¢1 196
1
#2
50010-MFL-671ZA
FRAME SET *NH461M* (TEMPLE BLACK METALLIC)
$3438.18¢1 719 089
1
#3
50131-MFJ-D00
MAT, L. ENGINE HANGER
$2.24¢1 121
1
#4
50132-MFJ-J00
MAT A, PIVOT BRACKET
$2.83¢1 414
1
#5
50137-MFL-D00
RUBBER, R. FRAME
$23.47¢11 736
1
#7
50194-MFL-000
COLLAR C, ENGINE HANGER
$24.53¢12 265
1
#9
50200-MFL-D00ZA
RAIL ASSY., SEAT *NH461M* (TEMPLE BLACK METALLIC)
$862.09¢431 043
1
#10
57401-MFL-D00
STAY, FR. POWER UNIT (UPPER)
$21.85¢10 925
1
#11
90101-MFL-000
BOLT, SPECIAL (12X261.5)
$16.04¢8 021
1
#12
90102-MFL-000
BOLT, SPECIAL (12X269.5)
$25.94¢12 972
1
#13
90109-MFL-000
BOLT, FLANGE (10X29)
$7.97¢3 985
1
#14
90110-MFL-000
BOLT, FLANGE (10X33.5)
$7.97¢3 985
1
#15
90152-MFL-000
BOLT, ADJUSTING (20X1.0X49.5)
$17.87¢8 936
1
#16
90163-MFL-D20
BOLT, FLANGE (12X50)
$4.96¢2 478
1
#17
90164-MFL-D20
BOLT, FLANGE (12X45)
$4.96¢2 478
1
#18
90303-MFJ-D00
NUT, LOCK (20MM) (P=1.0)
$8.07¢4 036
1
#19
90371-MFL-000
NUT, FLANGE (12MM)
$2.06¢1 029
1
#20
90439-SB2-010
WASHER, SPECIAL (24X12X2.3)
$17.19¢8 596
1
#21
90572-KV3-300
RUBBER, SEPARATOR MOUNTING
$4.78¢2 392
1
#22
94050-10000
NUT, FLANGE (10MM)
$1.75¢874
1
#23
94050-12000
NUT, FLANGE (12MM)
$1.17¢586
1
