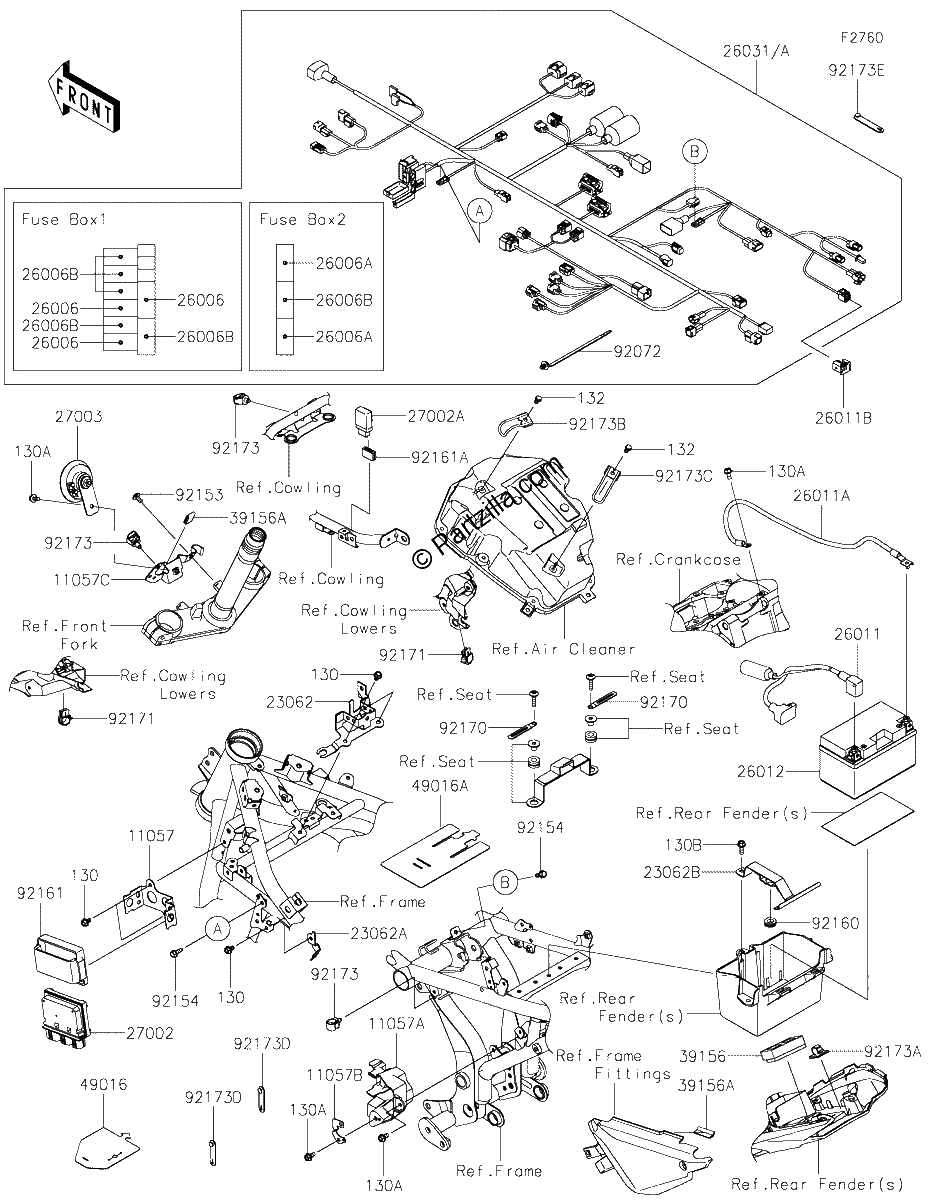

CHASSIS ELECTRICAL EQUIPMENT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT FLANGED,6X10
$1.26¢631
#130A
BOLT-FLANGED,6X12 | [CA]
$1.64¢819
#130B
BOLT-FLANGED,6X18
$1.52¢763
#132
BOLT-FLANGED-SMALL,6X10
$1.66¢831
#11057
BRACKET,RELAY BOX
$8.85¢4 425
#11057A
BRACKET,MAGNETIC SW.
$9.11¢4 556
#11057B
BRACKET,COUPLER
$2.58¢1 288
#11057C
BRACKET,HORN
$11.33¢5 663
#23062
BRACKET,VEHICLE DOWN SENSOR
$17.20¢8 600
#23062A
BRACKET-COMP,FUSE BOX
$3.08¢1 538
#23062B
BRACKET-COMP,BATTERY
$12.04¢6 019
#26006
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
#26006A
FUSE,MINI BLADE,5A,TAN
$5.06¢2 531
#26006B
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
#26011
WIRE-LEAD,BATTERY(+)
$45.04¢22 519
#26011B
WIRE-LEAD,DIAG CONNECTOR
$44.84¢22 419
#26011A
WIRE-LEAD,BATTERY(-)
$36.45¢18 225
#26012
BATTERY,YTZ10,12V 8.6AH
$269.24¢134 619
#26031A
HARNESS,MAIN
$866.59¢433 294
#26031
HARNESS,MAIN
$866.59¢433 294
#26031
HARNESS,MAIN
$866.59¢433 294
#27002A
RELAY Assembly,SIGNAL LAMP
$90.79¢45 394
#27002
RELAY Assembly
$214.27¢107 137
#27003
HORN
$82.71¢41 356
#39156A
PAD,40X15X2
$1.09¢544
#39156
PAD,DIAGNOSTIC-CONNECTOR
$13.88¢6 938
#49016A
COVER-SEAL,ECU CONNECTOR
$10.89¢5 444
#49016
COVER-SEAL
$6.59¢3 294
#92072
BAND
$3.70¢1 850
#92153
BOLT,SOCKET,6X12
$1.79¢894
#92154
BOLT,FLANGED,6X18
$1.42¢712
#92160
DAMPER
$4.36¢2 181
#92161A
DAMPER,15X25X8.5
$1.95¢975
#92161
DAMPER,RELAY BOX
$11.73¢5 863
#92170
CLAMP
$4.29¢2 144
#92171
CLAMP,EDGE CLIP
$9.25¢4 625
#92173A
CLAMP,DRAIN
$6.49¢3 244
#92173B
CLAMP,A/C CASE,FR
$5.78¢2 888
#92173C
CLAMP,A/C CASE,RR
$5.78¢2 888
#92173D
CLAMP
$1.55¢775
#92173
CLAMP,12MM DIA.
$5.01¢2 506
#92173E
CLAMP
$1.55¢775
