FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

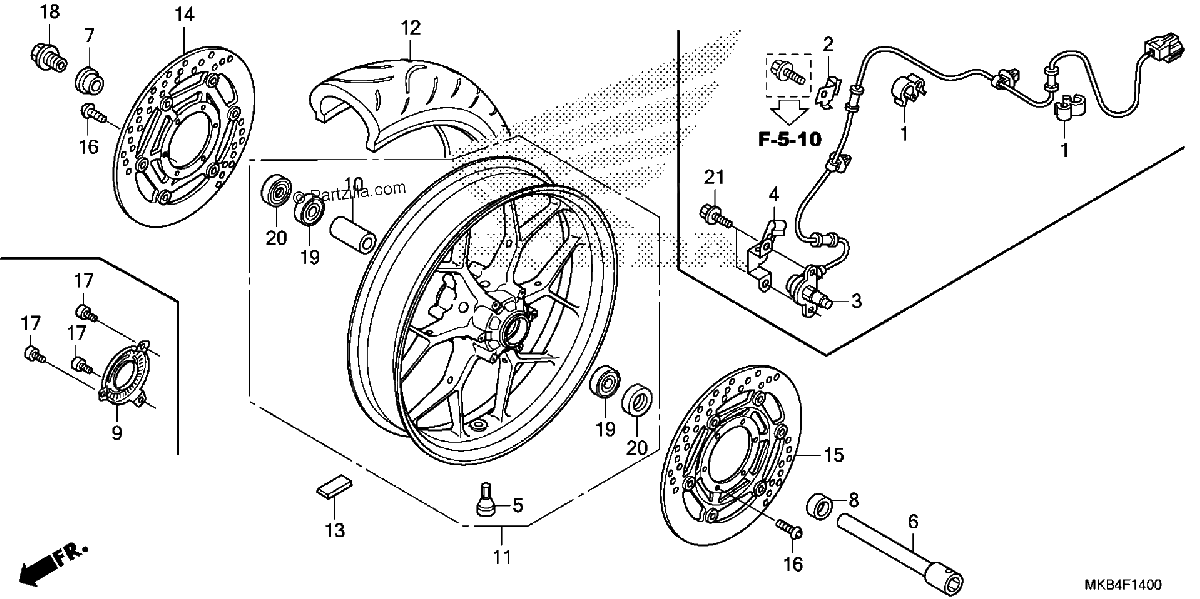

Diagrama de FRONT WHEEL

Repuestos

#1
11152-KS4-003
CLAMP, PIPE
$7.95¢3 973
1
#2
38514-MEJ-J00
CLAMP B, SENSOR WIRE
$2.68¢1 340
1
#3
38520-MFL-D01
SENSOR, FR. WHEEL SPEED
$216.67¢108 336
1
#4
38525-MFJ-A50
GUIDE, FR. SENSOR WIRE
$15.21¢7 607
1
#5
42753-ML7-003
VALVE, RIM (BS)
$13.60¢6 802
1
#5
42753-ML7-004
VALVE, RIM (DUNLOP)
$13.60¢6 802
1
#6
44301-MFL-000
AXLE, FR. WHEEL
$92.23¢46 115
1
#7
44311-MFL-000
COLLAR, R. FR. WHEEL SIDE
$11.51¢5 756
1
#8
44312-MFL-000
COLLAR, L. FR. WHEEL SIDE
$8.74¢4 370
1
#9
44515-MFJ-A50
RING, FR. PULSER
$53.61¢26 806
1
#10
44620-MCJ-000
COLLAR, FR. WHEEL DISTANCE
$22.52¢11 258
1
#11
44650-MGP-305ZE
WHEEL SUB-ASSY., FR. (TYPE2) (COO)
$1088.69¢544 347
1
#12
44711-MGP-003
TIRE, FR. (120/70ZR17) (M/C 58W) (BS)
$174.51¢87 256
1
#12
44711-MGP-004
TIRE, Front. (120/70ZR17) (M/C 58W) (DUNLOP) (NOT AVAILABLE)
No Disponible
1
#13
44721-MGC-003
WEIGHT, BALANCE (10G)
$5.22¢2 610
1
#13
44722-MGC-003
WEIGHT, BALANCE (15G)
$6.22¢3 111
1
#13
44723-MGC-003
WEIGHT, BALANCE (20G)
$6.22¢3 111
1
#14
45120-MFL-D01
DISK, R. FR. BRAKE
$681.92¢340 958
1
#15
45220-MFL-003
DISK, L. FR. BRAKE
$694.21¢347 105
1
#16
90106-MFL-D20
BOLT, BRAKE DISK (6X17)
$2.94¢1 472
1
#17
90131-KFK-630
BOLT, TORX (5X10)
$3.36¢1 679
1
#18
90306-MFL-D00
BOLT, FR. AXLE
$17.96¢8 981
1
#19
91052-MCF-003
BEARING, RADIAL BALL (6005)
$16.03¢8 015
1
#20
91253-MFL-003
DUST SEAL (31X47X7)
$7.07¢3 536
1
#21
96001-06014-07
BOLT, FLANGE (6X14)
$1.41¢707
1
