TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

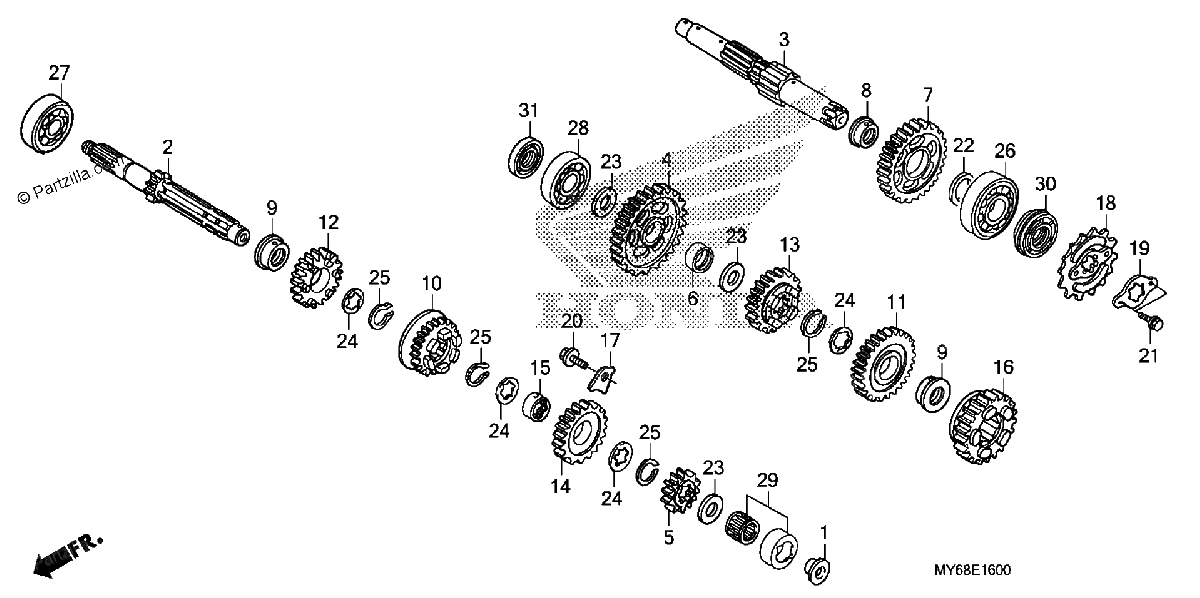

Diagrama de TRANSMISSION

Repuestos

#001
15171-KN8-000
GUIDE, LIFTER ROD
$17.63¢8 815
1
#1
15171-KN8-000
GUIDE, LIFTER ROD
$17.63¢8 815
1
#002
23211-MAN-690
MAINSHAFT (12T)
$193.84¢96 922
1
#2
23211-MAN-690
MAINSHAFT (12T)
$193.84¢96 922
1
#003
23220-MAN-690
COUNTERSHAFT
$200.53¢100 263
1
#3
23220-MAN-690
COUNTERSHAFT
$200.53¢100 263
1
#4
23411-MN9-000
GEAR, COUNTERSHAFT LOW (32T)
$195.53¢97 767
1
#004
23411-MN9-000
GEAR, COUNTERSHAFT LOW (32T)
$195.53¢97 767
1
#005
23421-MN9-641
GEAR, MAINSHAFT SECOND (17T)
$79.67¢39 836
1
#5
23421-MN9-641
GEAR, MAINSHAFT SECOND (17T)
$79.67¢39 836
1
#6
23422-MG2-000
BUSH (20MM)
$27.24¢13 622
1
#006
23422-MG2-000
BUSH (20MM)
$27.24¢13 622
1
#7
23431-MN9-000
GEAR, COUNTERSHAFT SECOND (28T)
$175.04¢87 521
1
#007
23431-MN9-000
GEAR, COUNTERSHAFT SECOND (28T)
$175.04¢87 521
1
#008
23432-MK2-000
BUSH (25MM)
$33.09¢16 543
1
#8
23432-MK2-000
BUSH (25MM)
$33.09¢16 543
1
#9
23432-MN1-670
BUSH (25MM)
$33.09¢16 543
1
#009
23432-MN1-670
BUSH (25MM)
$33.09¢16 543
1
#010
23441-MN9-000
GEAR, MAINSHAFT THIRD (20T)
$200.87¢100 435
1
#10
23441-MN9-000
GEAR, MAINSHAFT THIRD (20T)
$200.87¢100 435
1
#11
23451-MN9-000
GEAR, COUNTERSHAFT THIRD (25T)
$163.06¢81 529
1
#011
23451-MN9-000
GEAR, COUNTERSHAFT THIRD (25T)
$163.06¢81 529
1
#012
23461-MN9-000
GEAR, MAINSHAFT FOURTH (23T)
$163.09¢81 547
1
#12
23461-MN9-000
GEAR, MAINSHAFT FOURTH (23T)
$163.09¢81 547
1
#013
23471-MN9-000
GEAR, COUNTERSHAFT FOURTH (23T)
$213.20¢106 599
1
#13
23471-MN9-000
GEAR, COUNTERSHAFT FOURTH (23T)
$213.20¢106 599
1
#14
23481-MN9-000
GEAR, MAINSHAFT FIFTH (25T)
$163.06¢81 529
1
#014
23481-MN9-000
GEAR, MAINSHAFT FIFTH (25T)
$163.06¢81 529
1
#015
23485-369-000
BUSH, SPLINE (28MM)
$35.05¢17 526
1
#15
23485-369-000
BUSH, SPLINE (28MM)
$35.05¢17 526
1
#16
23491-MN9-000
GEAR, COUNTERSHAFT FIFTH (21T)
$194.26¢97 129
1
#016
23491-MN9-000
GEAR, COUNTERSHAFT FIFTH (21T)
$194.26¢97 129
1
#017
23531-MG2-790
PLATE, BEARING SETTING
$5.28¢2 639
1
#17
23531-MG2-790
PLATE, BEARING SETTING
$5.28¢2 639
1
#018
23801-MY6-670
SPROCKET, DRIVE (15T)
$67.64¢33 822
1
#18
23801-MY6-670
SPROCKET, DRIVE (15T)
$67.64¢33 822
1
#19
23811-MN8-000
PLATE, FIXING
$12.55¢6 273
1
#019
23811-MN8-000
PLATE, FIXING
$12.55¢6 273
1
#020
90071-MF5-000
BOLT, FLANGE SOCKET (6X14)
$3.74¢1 869
1
#20
90071-MF5-000
BOLT, FLANGE SOCKET (6X14)
$3.74¢1 869
1
#021
90118-958-003
BOLT, FLANGE (6X12)
$3.61¢1 805
1
#21
90118-958-003
BOLT, FLANGE (6X12)
$3.61¢1 805
1
#022
90412-ZE5-000
WASHER, THRUST (25MM)
$6.13¢3 065
1
#22
90412-ZE5-000
WASHER, THRUST (25MM)
$6.13¢3 065
1
#023
90451-MG3-000
PLATE, THRUST (20MM)
$4.90¢2 449
1
#23
90451-MG3-000
PLATE, THRUST (20MM)
$4.90¢2 449
1
#24
90451-413-000
WASHER, THRUST (25MM)
$2.59¢1 294
1
#024
90451-413-000
WASHER, THRUST (25MM)
$2.59¢1 294
1
#25
90601-107-000
CIRCLIP (25MM)
$4.17¢2 087
1
#025
90601-107-000
CIRCLIP (25MM)
$4.17¢2 087
1
#026
91002-MG2-791
BEARING, RADIAL BALL (6305) (TOYO)
$48.66¢24 328
1
#26
91002-MG2-791
BEARING, RADIAL BALL (6305) (TOYO)
$48.66¢24 328
1
#27
91002-422-008
BEARING, RADIAL BALL (5205A)
$81.05¢40 526
1
#027
91002-422-008
BEARING, RADIAL BALL (5205A)
$81.05¢40 526
1
#28
91003-MK2-680
BEARING, RADIAL BALL (6204U)
$23.33¢11 667
1
#028
91003-MK2-680
BEARING, RADIAL BALL (6204U)
$23.33¢11 667
1
#028
96140-62040-10
BEARING, RADIAL BALL (6204U)
$23.33¢11 667
1
#28
96140-62040-10
BEARING, RADIAL BALL (6204U)
$23.33¢11 667
1
#29
91022-MG2-791
BEARING, NEEDLE (20MM)
$55.43¢27 715
1
#029
91022-MG2-791
BEARING, NEEDLE (20MM)
$55.43¢27 715
1
#30
91204-MG3-003
OIL SEAL (25X45X7) (ARAI)
$10.55¢5 273
1
#030
91204-MG3-003
OIL SEAL (25X45X7) (ARAI)
$10.55¢5 273
1
#31
91204-216-003
OIL SEAL (20X35X5.5) (ARAI)
$7.05¢3 525
1
#031
91204-216-003
OIL SEAL (20X35X5.5) (ARAI)
$7.05¢3 525
1
