HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

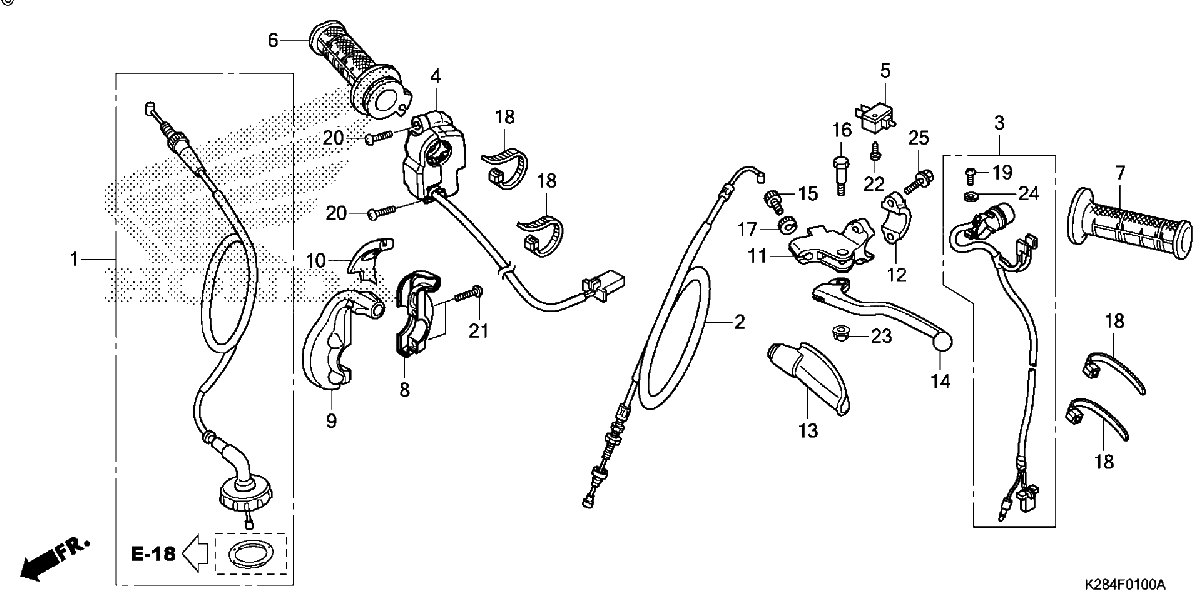

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#1
17920-K28-306
CABLE SET, THROTTLE
$50.30¢25 151
1
#2
22870-K28-921
CABLE, CLUTCH
$28.15¢14 076
1
#3
35130-K28-911
SWITCH ASSY., ENGINE STOP
$48.77¢24 386
1
#4
35150-K28-921
SWITCH ASSY., STARTER
$62.16¢31 079
1
#5
35330-MK5-003
SWITCH ASSY., CLUTCH
$19.11¢9 557
1
#6
53140-K28-305
GRIP, THROTTLE (COO)
$34.33¢17 164
1
#7
53166-K28-305
GRIP, L. HANDLE (COO)
$11.51¢5 756
1
#8
53167-KYK-910
HOUSING, THROTTLE (LOWER)
$31.97¢15 985
1
#9
53168-K28-910
HOUSING, THROTTLE (UPPER)
$33.73¢16 865
1
#10
53169-KYK-910
SLIDER, THROTTLE
$8.13¢4 065
1
#11
53172-K28-910
BRACKET, L. HANDLE LEVER
$71.51¢35 753
1
#12
53174-K28-910
HOLDER, L. LEVER BRACKET
$18.15¢9 074
1
#13
53177-KZZ-900
COVER, L. HANDLE LEVER
$3.36¢1 679
1
#14
53178-K28-305
LEVER, L. HANDLE (COO)
$52.46¢26 231
1
#15
53192-KTJ-900
BOLT, WIRE ADJUSTING
$6.27¢3 134
1
#16
90113-KYY-900
BOLT, HANDLE LEVER PIVOT
$3.36¢1 679
1
#17
90321-KTJ-900
NUT, FIXING
$10.68¢5 342
1
#18
90650-KW3-000
BAND, WIRE
$4.99¢2 496
1
#19
93500-04012-0A
SCREW, PAN (4X12)
$0.98¢489
1
#19
93500-04012-1A
SCREW, PAN (4X12)
$0.98¢489
1
#20
93500-04014-0G
SCREW, PAN (4X14)
$0.86¢431
1
#21
93500-05016-0G
SCREW, PAN (5X16)
$1.07¢535
1
#22
93901-32220
SCREW, TAPPING (3X10)
$1.07¢535
1
#23
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#24
94111-04000
WASHER, SPRING (4MM)
$1.26¢633
1
#25
96001-06022-00
BOLT, FLANGE (6X22)
$1.47¢736
1
