GEARSHIFT DRUM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

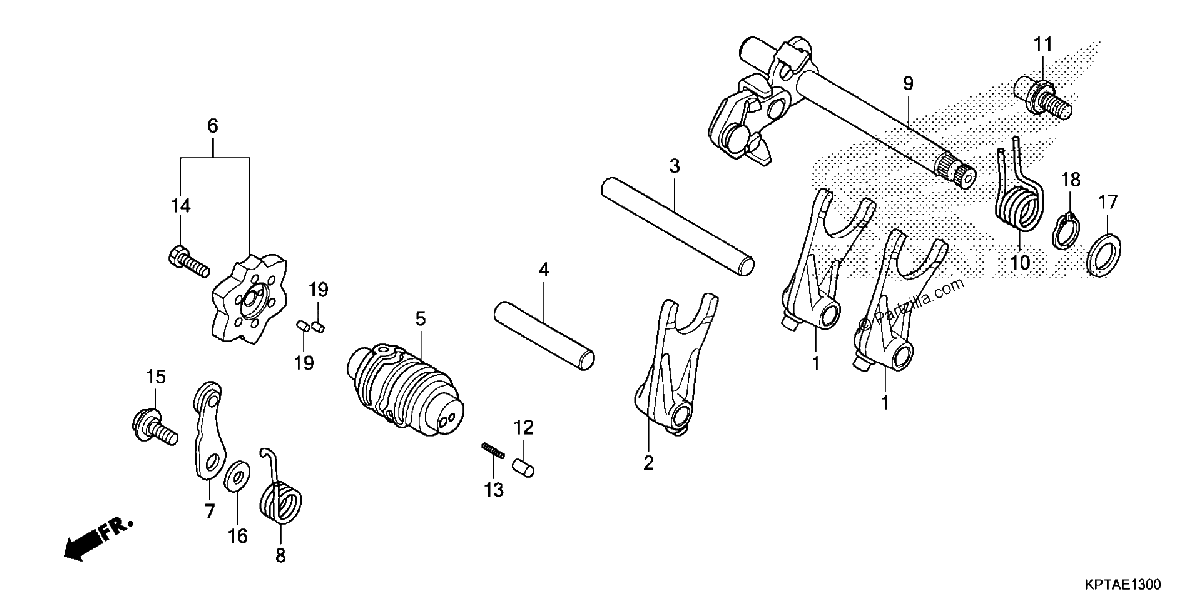

Diagrama de GEARSHIFT DRUM

Repuestos

#1
24211-KPT-A00
FORK, GEARSHIFT
$45.82¢22 908
1
#2
24212-KPT-A00
FORK, CENTER GEARSHIFT
$56.82¢28 411
1
#3
24241-KRM-840
SHAFT A, GEARSHIFT FORK
$8.61¢4 307
1
#4
24242-KRM-840
SHAFT B, GEARSHIFT FORK
$9.02¢4 508
1
#5
24301-KPT-A00
DRUM, GEARSHIFT
$56.88¢28 440
1
#6
24410-KVS-305
PLATE SET, SHIFT DRUM
$30.43¢15 215
1
#7
24430-KRM-B10
STOPPER, GEARSHIFT DRUM
$14.66¢7 331
1
#8
24436-KRM-840
SPRING, SHIFT DRUM STOPPER
$0.94¢471
1
#9
24610-KRM-840
SPINDLE, GEARSHIFT
$33.71¢16 853
1
#10
24651-KRM-840
SPRING, GEARSHIFT RETURN
$2.78¢1 392
1
#11
24652-KRM-840
PIN, SHIFT RETURN SPRING
$7.05¢3 525
1
#12
35751-KPH-900
CAP, CHANGE SWITCH CONTACT
$0.76¢380
1
#13
35752-KRM-840
SPRING, CHANGE SWITCH CONTACT
$0.60¢299
1
#14
90003-KVS-900
BOLT, HEX. (6X20)
$2.42¢1 208
1
#15
90022-KRM-840
PIVOT, SHIFT DRUM STOPPER ARM
$1.64¢822
1
#16
90417-360-000
WASHER, DRUM STOPPER
$2.06¢1 029
1
#16
90417-KRM-840
WASHER, DRUM STOPPER
$2.06¢1 029
1
#17
90457-KRM-840
WASHER (14MM)
$0.86¢431
1
#18
90606-KRM-840
CIRCLIP (OUTER) (14MM)
$1.21¢604
1
#18
94510-14000
CIRCLIP, OUTER (14MM)
$1.21¢604
1
#19
96220-30085
ROLLER (3X8.5)
$0.62¢311
1
