FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

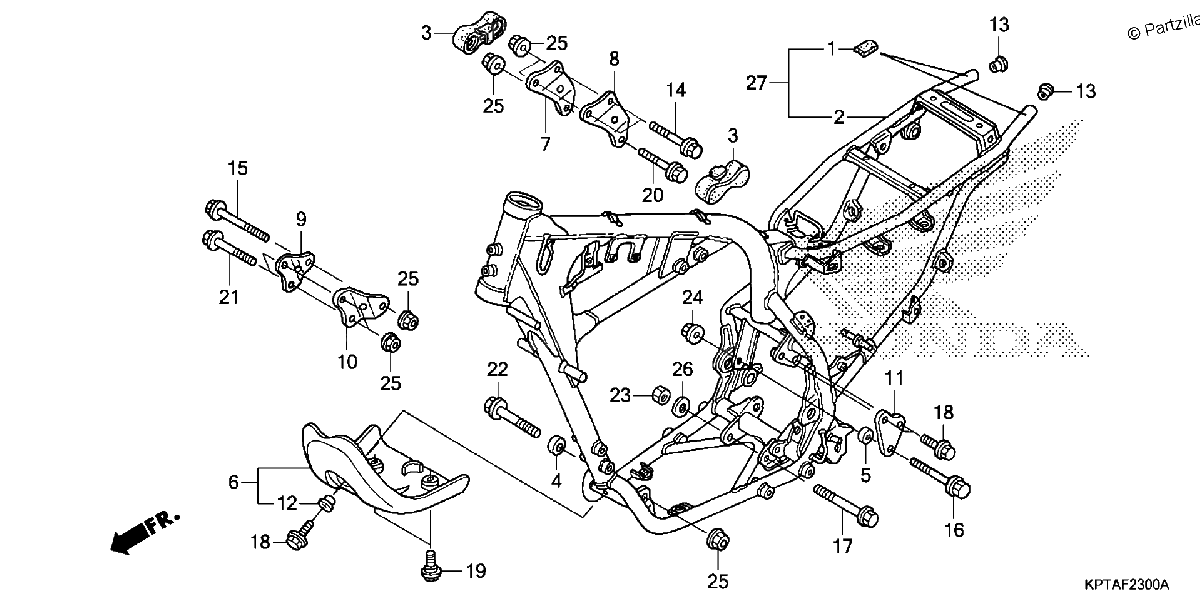

Diagrama de FRAME

Repuestos

#1
17518-KPF-900
RUBBER B, FUEL TANK
$2.06¢1 029
1
#3
50212-KPS-900
RUBBER, TANK GUARD
$4.47¢2 237
1
#4
50318-GE2-000
COLLAR, ENGINE MOUNTING
$7.31¢3 657
1
#5
50318-KPT-A00
COLLAR, RR. ENGINE MOUNT (UPPER)
$3.32¢1 662
1
#6
50351-KPT-A00ZA
PLATE, SKID *NH201R* (HUSKY GRAY)
$35.80¢17 900
1
#7
50531-KPT-A00
PLATE, R. ENGINE HANGER (UPPER)
$9.12¢4 560
1
#8
50532-KPT-A00
PLATE, L. ENGINE HANGER (UPPER)
$7.13¢3 565
1
#9
50533-KPS-900
PLATE, R. FR. ENGINE HANGER
$4.60¢2 300
1
#10
50534-KPS-900
PLATE, L. FR. ENGINE HANGER
$4.60¢2 300
1
#11
50535-KPT-900
PLATE, L. RR. ENGINE HANGER (UPPER)
$3.07¢1 535
1
#12
80138-KPS-900
COLLAR (14X5)
$2.51¢1 254
1
#13
84103-392-000
CAP, RR. BUMPER
$4.34¢2 168
1
#14
90013-KRH-D20
BOLT, FLANGE (8X56)
$1.85¢926
1
#15
90024-MV9-670
BOLT, FLANGE (8X88)
$8.88¢4 439
1
#16
90102-KPT-A00
BOLT, FLANGE (10X118)
$9.94¢4 968
1
#17
90105-MG3-000
BOLT, FLANGE (10X110)
$10.94¢5 468
1
#18
90107-KPS-900
BOLT, FLANGE (8X16)
$1.21¢604
1
#19
90111-162-000
BOLT, FLANGE (6MM)
$3.36¢1 679
1
#20
90150-GN1-000
BOLT, FLANGE (8X47)
$6.69¢3 347
1
#21
90154-KB7-700
BOLT, FLANGE (8X73)
$25.04¢12 518
1
#22
90156-KK6-000
BOLT, FLANGE (8X96)
$10.74¢5 371
1
#23
90203-GHR-850
NUT, HEX. (10MM)
$1.13¢564
1
#23
94030-10200
NUT, HEX. (10MM)
$1.15¢575
1
#24
90208-GHR-650
NUT, FLANGE (10MM)
$1.00¢500
1
#24
90303-KPS-900
NUT, FLANGE (10MM)
$1.00¢500
1
#25
90208-GHR-640
NUT, FLANGE (8MM)
$2.77¢1 386
1
#25
90306-KPS-900
NUT, FLANGE (8MM)
$2.77¢1 386
1
#26
90441-MT3-000
WASHER (10MM)
$11.65¢5 825
1
#27
50010-KPT-B80ZA
FRAME ASSY. *NH146M* (ACCURATE SILVER METALLIC)
$785.33¢392 667
1
