AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

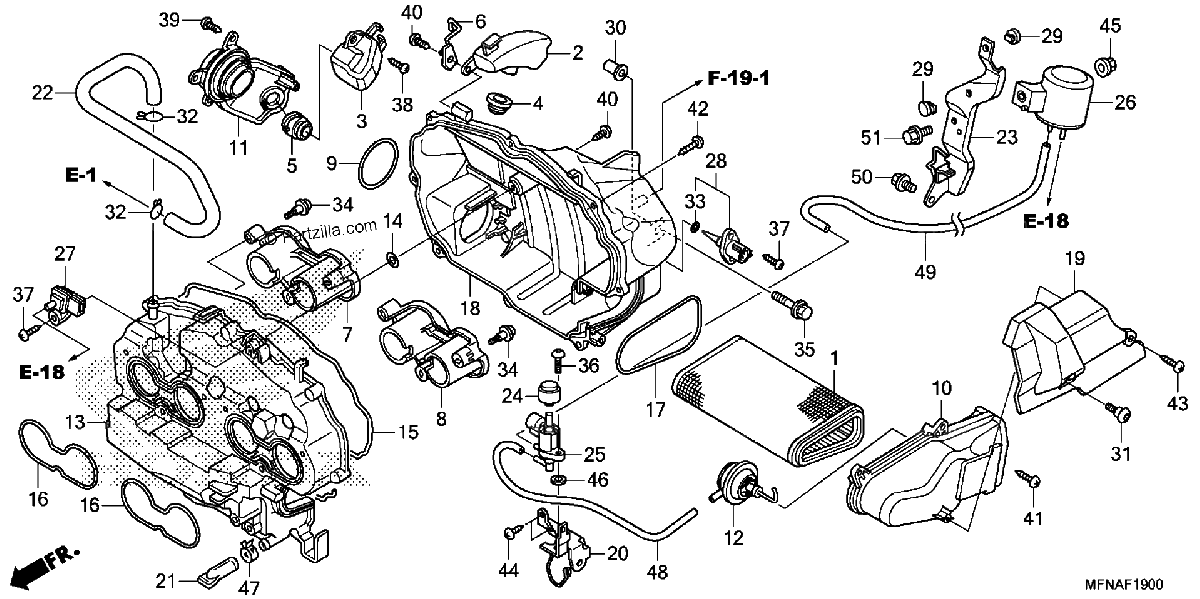

Diagrama de AIR CLEANER

Repuestos

#1
17210-MFN-D02
ELEMENT, AIR CLEANER
$50.19¢25 093
1
#2
17213-MFG-D03
RESONATOR, AIR CLEANER
$13.18¢6 590
1
#3
17215-MFG-D03
RESONATOR, R. AIR DUCT
$15.25¢7 624
1
#4
17216-MFG-D00
TUBE, AIR CLEANER RESONATOR
$0.86¢431
1
#5
17218-MFG-D00
TUBE, R. AIR DUCT RESONATOR
$0.86¢431
1
#6
17219-MFN-L60
CLAMP, BREATHER TUBE
$3.48¢1 742
1
#7
17225-MFN-D01
FUNNEL, R. AIR CLEANER
$3.10¢1 553
1
#8
17226-MFN-D01
FUNNEL, L. AIR CLEANER
$3.10¢1 553
1
#9
17229-MFG-D00
SEAL, R. AIR CLEANER DUCT
$1.13¢564
1
#10
17235-MFN-D01
DUCT, L. AIR CLEANER
$30.61¢15 307
1
#11
17236-MFG-D02
DUCT, R. AIR CLEANER
$20.57¢10 287
1
#12
17238-MW4-003
DIAPHRAGM, CONTROL VALVE
$60.86¢30 429
1
#13
17240-MFN-D00
CASE A, AIR CLEANER
$14.78¢7 389
1
#14
17241-MFA-D00
SEAL A, AIR CLEANER
$1.32¢661
1
#15
17242-MFN-D00
SEAL, AIR CLEANER HOUSING
$5.81¢2 904
1
#16
17243-MFA-D00
SEAL, AIR CLEANER
$2.36¢1 179
1
#17
17244-MFA-D00
SEAL, AIR CLEANER DUCT
$3.66¢1 829
1
#18
17250-MFN-D00
CASE B, AIR CLEANER
$19.81¢9 907
1
#19
17260-MFN-L60
COVER, AIR CLEANER
$12.65¢6 325
1
#20
17261-MFN-D00
STAY, CHAMBER
$17.72¢8 861
1
#21
17358-MZ8-G20
TUBE, DRAIN
$6.88¢3 439
1
#22
17554-MFN-D00
TUBE, BREATHER
$16.04¢8 021
1
#23
32123-MFN-D00
STAY, VACUUM TANK
$15.97¢7 987
1
#24
36138-PR7-A01
FILTER ASSY., SOLENOID VALVE
$40.49¢20 246
1
#25
36163-PV0-004
VALVE ASSY., BYPASS CONTROL SOLENOID
$316.48¢158 240
1
#26
36625-P0A-A01
TANK, VACUUM
$82.89¢41 446
1
#27
37830-MEL-003
SENSOR ASSY., MAP
$138.08¢69 040
1
#28
37880-P05-A00
SENSOR ASSY., AIR TEMPERATURE
$35.01¢17 503
1
#29
50352-GS6-000
RUBBER, LINK STOPPER
$5.04¢2 519
1
#30
90111-KFB-000
NUT, SPECIAL (6X1.0)
$3.69¢1 846
1
#31
90114-MEL-000
SCREW, SPECIAL (5X11)
$2.85¢1 426
1
#32
90646-657-000
CLIP, AIR HOSE (16MM)
$8.18¢4 088
1
#33
91303-PK2-005
O-RING (7.5X1.5)
$3.33¢1 667
1
#34
91508-MM5-000
SCREW, PAN (5MM)
$4.55¢2 277
1
#35
93404-06030-08
BOLT-WASHER (6X30)
$3.56¢1 783
1
#36
93500-05016-0A
SCREW, PAN (5X16)
$1.07¢535
1
#37
93901-25420
SCREW, TAPPING (5X20)
$0.98¢489
1
#38
93903-24480
SCREW, TAPPING (4X16)
$1.07¢535
1
#39
93903-25280
SCREW, TAPPING (5X12)
$1.53¢765
1
#40
93903-25380
SCREW, TAPPING (5X16)
$1.07¢535
1
#41
93903-25480
SCREW, TAPPING (5X20)
$0.79¢397
1
#42
93903-25580
SCREW, TAPPING (5X25)
$1.30¢650
1
#43
93913-24220
SCREW, TAPPING (4X12)
$1.07¢535
1
#44
93913-25420
SCREW, TAPPING (5X16)
$1.02¢512
1
#45
94050-06070
NUT, FLANGE (6MM)
$1.71¢857
1
#46
94103-05000
WASHER, PLAIN (5MM)
$0.70¢351
1
#47
95002-41250-00
CLAMP, TUBE (D12.5)
$1.59¢793
1
#48
95005-35001-20M
BULK HOSE, VACUUM (3.5X1000) (3.5X90)
$10.42¢5 210
1
#49
95005-35008-10M
BULK HOSE, VACUUM (3.5X8000) (3.5X820)
$113.87¢56 936
1
#50
95701-06012-07
BOLT, FLANGE (6X12)
$1.92¢960
1
#51
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
