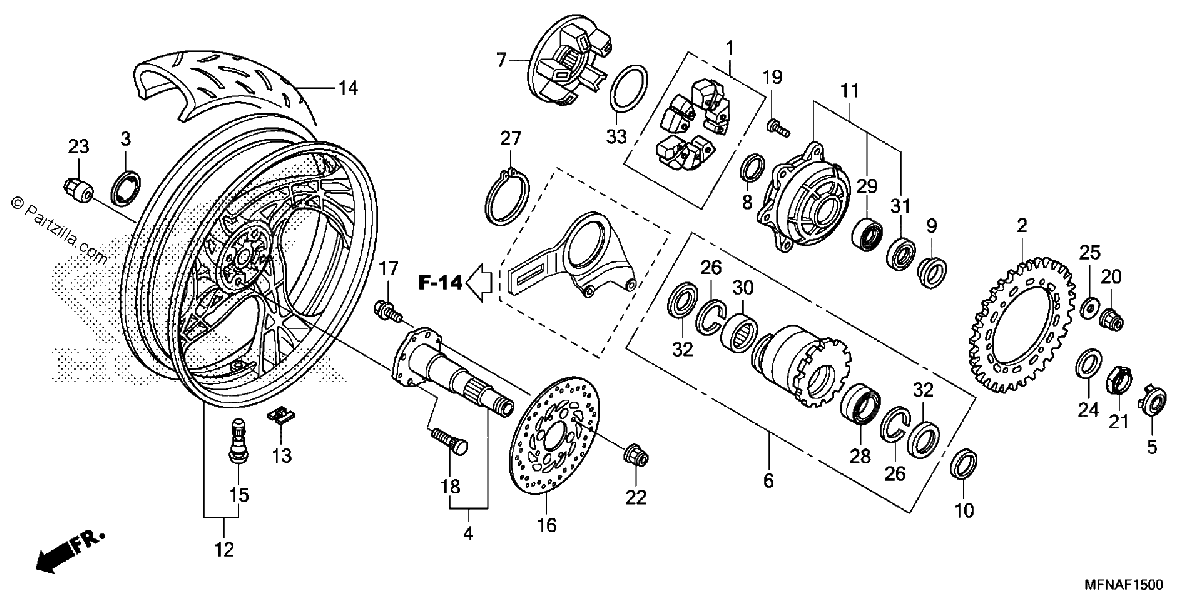

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER SET, FINAL DRIVEN
$112.34¢56 172
#2
SPROCKET, FINAL DRIVEN (44T)
$79.50¢39 750
#3
CAP, RR. WHEEL
$5.35¢2 674
#4
AXLE, RR.
$343.00¢171 499
#5
CAP, RR. AXLE
$1.36¢678
#6
HOLDER, BEARING
$350.87¢175 433
#7
HUB, FINAL DRIVEN
$261.73¢130 864
#8
COLLAR, RR. AXLE DISTANCE
$23.41¢11 707
#9
COLLAR, RR. AXLE SIDE
$25.92¢12 960
#10
COLLAR, RR. AXLE
$26.71¢13 357
#11
HUB ASSY., SPROCKET
$253.94¢126 971
#12
WHEEL SUB-ASSY., RR. (COO)
$357.76¢178 883
#13
WEIGHT, BALANCE (10G)
$10.04¢5 020
#13
WEIGHT, BALANCE (20G)
$20.62¢10 310
#13
WEIGHT, BALANCE (30G)
$20.32¢10 160
#14
TIRE, RR. (180/55ZR17) (M/C 73W) (BS)
$237.51¢118 755
#15
VALVE, RIM (WONDER)
$13.60¢6 802
#15
VALVE, RIM (TRITON)
$0.66¢328
#15
VALVE, RIM (BS)
$13.60¢6 802
#15
VALVE, RIM (SCHRADER)
$13.60¢6 802
#16
DISK, RR. BRAKE
$92.85¢46 425
#17
BOLT, FLANGE (8X20)
$2.28¢1 138
#18
BOLT, WHEEL (NAGOYA RASHI)
$3.20¢1 598
#18
BOLT, WHEEL (ROCKNEL FASTENER)
$3.20¢1 598
#19
BOLT (10X30)
$3.45¢1 725
#20
NUT, U FLANGE (10MM)
$3.13¢1 564
#21
NUT, LOCK (35MM)
$13.74¢6 871
#22
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$3.74¢1 869
#22
NUT, FLANGE (8MM)
$3.74¢1 869
#23
NUT, WHEEL (FUSE RASHI)
$12.62¢6 308
#24
WASHER, CONICAL SPRING (35)
$9.14¢4 571
#25
WASHER (10MM)
$2.86¢1 432
#26
CIRCLIP (INNER) (62MM)
$7.08¢3 542
#27
CIRCLIP (OUTER) (75MM)
$12.35¢6 176
#28
BEARING, RADIAL BALL (6908LU)
$50.80¢25 398
#29
BEARING, RADIAL BALL (35X55X10)
$95.02¢47 512
#30
BEARING, RR. AXLE NEEDLE
$45.31¢22 655
#31
DUST SEAL (45X55X5) (ARAI)
$9.31¢4 658
#32
DUST SEAL (50X62X5)
$13.65¢6 825
#33
O-RING, SPROCKET HUB
$3.09¢1 547
