CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

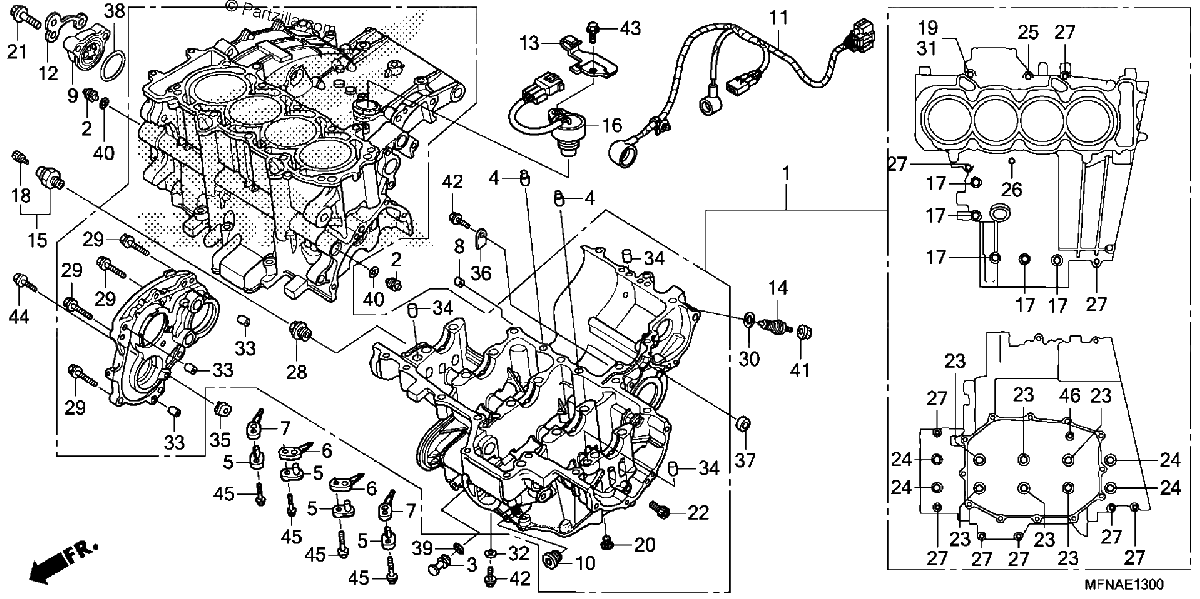

Diagrama de CRANKCASE

Repuestos

#1
11000-MFN-L60
CRANKCASE SET
$3666.16¢1 833 081
1
#2
11103-MEL-000
PLUG, SEALING
$10.76¢5 381
1
#3
11104-MEL-000
PLUG, OIL COOLER
$8.88¢4 438
1
#4
11105-MEL-000
ORIFICE (1.6MM)
$9.90¢4 950
1
#5
11145-MEL-000
BUSH, ORIFICE
$26.36¢13 181
1
#6
11146-MEL-000
ORIFICE A (#100)
$29.51¢14 756
1
#7
11147-MEL-000
ORIFICE B (#100)
$29.51¢14 756
1
#8
11206-MEL-000
ORIFICE (1.4MM)
$2.91¢1 456
1
#9
11360-MFN-D00
FINDER, OIL LEVEL
$39.40¢19 700
1
#10
12208-PR3-000
BOLT, SEALING (20MM)
$11.74¢5 869
1
#11
32101-MFN-D00
SUB-HARNESS, ENGINE
$54.59¢27 294
1
#12
32114-MFN-D00
GUIDE, OIL PRESSURE SWITCH WIRE
$4.71¢2 356
1
#13
32125-MFN-D00
HOLDER, CONNECTOR
$7.82¢3 912
1
#14
35600-MK4-860
SWITCH ASSY., NEUTRAL
$21.92¢10 962
1
#15
37240-P13-013
SWITCH ASSY., OIL PRESSURE (DENSO)
$52.05¢26 025
1
#16
37700-MEL-000
SENSOR ASSY., SPEED
$151.44¢75 719
1
#17
90001-MFA-D00
BOLT, FLANGE (8X55)
$1.86¢931
1
#18
90002-PA6-003
BOLT-WASHER (4X8) (DENSO)
$7.54¢3 769
1
#19
90004-MFA-D00
BOLT, SPECIAL (7X42.5)
$3.30¢1 650
1
#20
90005-MAZ-000
BOLT, SOCKET (10MM)
$2.91¢1 456
1
#21
90006-MFN-D00
BOLT, FLANGE (6X28)
$3.05¢1 525
1
#22
90010-MEL-000
BOLT, SOCKET (8X12)
$2.44¢1 219
1
#23
90015-MFA-D01
BOLT, FLANGE (9X105)
$5.84¢2 919
1
#24
90016-MFA-D01
BOLT, FLANGE (9X125)
$6.19¢3 094
1
#25
90017-MFA-D00
BOLT, FLANGE (7X60)
$3.40¢1 700
1
#26
90018-MFA-D00
BOLT, FLANGE (7X80)
$4.69¢2 344
1
#27
90019-MFA-D00
BOLT, FLANGE (7X40)
$2.60¢1 300
1
#28
90048-MFL-000
BOLT, SEALING (22MM)
$12.24¢6 119
1
#29
90133-MEL-000
BOLT, FLANGE (8X30)
$4.26¢2 131
1
#30
90443-MJ6-000
WASHER, NEUTRAL
$2.48¢1 238
1
#31
90447-KE1-000
WASHER, SEALING (7MM)
$3.43¢1 713
1
#32
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#33
90701-MEL-000
PIN, DOWEL (8X14)
$3.21¢1 606
1
#34
90701-MV9-670
PIN, DOWEL (10X16)
$5.21¢2 606
1
#35
91011-MEL-000
PLATE A, BEARING SETTING
$7.19¢3 594
1
#36
91012-MEL-000
PLATE B, BEARING SETTING
$2.48¢1 238
1
#37
91202-MEL-003
OIL SEAL (8X16X7)
$4.47¢2 238
1
#38
91301-MEE-003
O-RING (32X1.7)
$2.44¢1 219
1
#39
91302-ZE9-000
O-RING (11.8X2.4)
$3.15¢1 575
1
#39
91302-ZE9-003
O-RING (11.8X2.4)
$3.15¢1 575
1
#40
91303-377-000
O-RING (13.8X2.5)
$4.15¢2 075
1
#41
94050-04000
NUT, FLANGE (4MM)
$1.57¢788
1
#42
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#43
95701-06018-00
BOLT, FLANGE (6X18)
$2.09¢1 044
1
#44
95701-06020-00
BOLT, FLANGE (6X20)
$2.27¢1 138
1
#45
95701-06025-00
BOLT, FLANGE (6X25)
$2.31¢1 156
1
#46
95701-08040-00
BOLT, FLANGE (8X40)
$1.54¢769
1
