HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

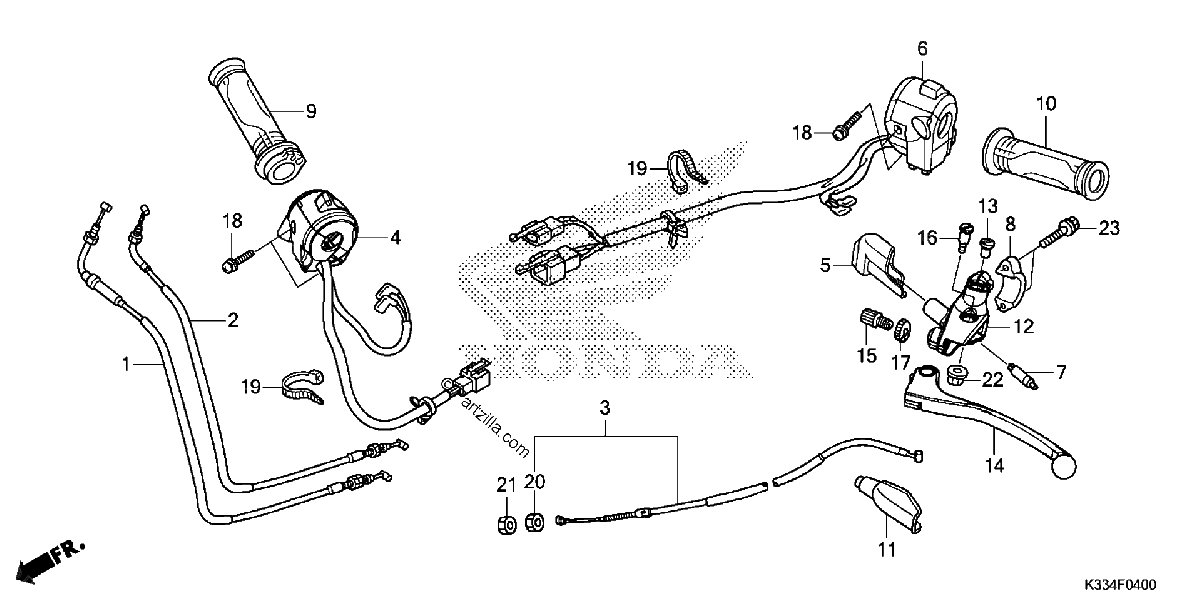

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#1
17910-K33-D00
CABLE A, THROTTLE
$19.84¢9 919
1
#001
17910-K33-D00
CABLE A, THROTTLE
$19.84¢9 919
1
#2
17920-KYJ-901
CABLE B, THROTTLE
$19.18¢9 591
1
#002
17920-KYJ-901
CABLE B, THROTTLE
$19.18¢9 591
1
#3
22870-KYJ-900
CABLE, CLUTCH
$11.52¢5 761
1
#003
22870-KYJ-900
CABLE, CLUTCH
$11.52¢5 761
1
#4
35130-K33-D01
SWITCH Assembly., STARTER & ENGINESTOP
$47.02¢23 512
1
#004
35130-K33-D01
SWITCH Assembly., STARTER & ENGINESTOP
$47.02¢23 512
1
#004
35130-K33-D02
SWITCH Assembly., STARTER & ENGINESTOP
$47.02¢23 512
1
#5
35152-KRY-970
COVER, CLUTCH SWITCH
$10.80¢5 399
1
#005
35152-KRY-970
COVER, CLUTCH SWITCH
$10.80¢5 399
1
#006
35200-K33-A02
SWITCH Assembly., TURN SIGNAL
$67.77¢33 885
1
#006
35200-K33-A01
SWITCH ASSY., TURN SIGNAL
$67.77¢33 885
1
#6
35200-K33-A01
SWITCH ASSY., TURN SIGNAL
$67.77¢33 885
1
#7
35330-KYJ-901
SWITCH, Front LEVER
$7.37¢3 686
1
#007
35330-KYJ-901
SWITCH, Front LEVER
$7.37¢3 686
1
#8
45517-KCW-870
HOLDER, MASTER CYLINDER
$11.65¢5 825
1
#008
45517-KCW-870
HOLDER, MASTER CYLINDER
$11.65¢5 825
1
#9
53140-KYJ-305
GRIP, THROTTLE (COO)
$10.88¢5 440
1
#009
53140-KYJ-305
GRIP, THROTTLE (COO)
$10.88¢5 440
1
#010
53166-KYJ-305
GRIP, L. HANDLE (COO)
$6.32¢3 162
1
#10
53166-KYJ-305
GRIP, L. HANDLE (COO)
$6.32¢3 162
1
#11
53172-402-700
COVER, L HANDLE LEVER
$8.03¢4 013
1
#011
53172-402-700
COVER, L HANDLE LEVER
$8.03¢4 013
1
#12
53172-KYJ-900
BRACKET, HANDLE LEVER
$14.96¢7 481
1
#012
53172-KYJ-900
BRACKET, HANDLE LEVER
$14.96¢7 481
1
#013
53174-116-670
PLUG, HANDLE LEVER BRACKET
$2.94¢1 472
1
#13
53174-116-670
PLUG, HANDLE LEVER BRACKET
$2.94¢1 472
1
#14
53178-K33-305
LEVER, L HANDLE (COO)
$18.41¢9 206
1
#014
53178-K33-305
LEVER, L HANDLE (COO)
$18.41¢9 206
1
#015
53192-268-000
BOLT, WIRE ADJUSTING
$7.29¢3 645
1
#15
53192-268-000
BOLT, WIRE ADJUSTING
$7.29¢3 645
1
#16
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$8.46¢4 232
1
#016
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$8.46¢4 232
1
#17
90321-315-670
NUT, FIXING
$8.15¢4 077
1
#017
90321-315-670
NUT, FIXING
$8.15¢4 077
1
#18
90507-MGZ-J00
SCREW-WASHER (5X20)
$0.59¢293
1
#018
90507-MGZ-J00
SCREW-WASHER (5X20)
$0.59¢293
1
#19
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
1
#019
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
1
#20
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#020
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#21
94030-08000
NUT, HEX. (8MM)
$1.26¢633
1
#021
94030-08000
NUT, HEX. (8MM)
$1.26¢633
1
#022
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#22
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#23
96001-06022-07
BOLT, FLANGE (6X22)
$2.18¢1 092
1
#023
96001-06022-07
BOLT, FLANGE (6X22)
$2.18¢1 092
1
