AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

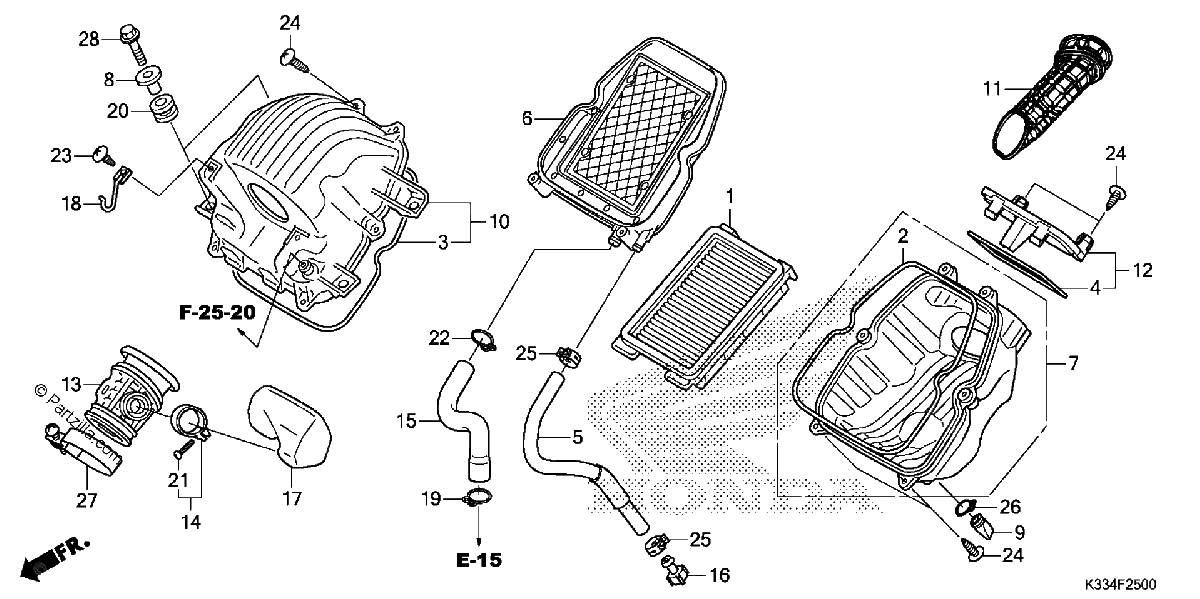

Diagrama de AIR CLEANER

Repuestos

#1
17211-KYJ-900
ELEMENT, AIR CLEANER
$14.19¢7 095
1
#2
17213-KYJ-900
SEAL, AIR CLEANER
$2.13¢1 064
1
#3
17213-KYJ-900
SEAL, AIR CLEANER
$2.13¢1 064
1
#4
17214-KYJ-900
SEAL, LID
$1.64¢822
1
#5
17215-KYJ-900
TUBE, AIR CLEANER DRAIN
$14.44¢7 222
1
#6
17220-KYJ-900
HOLDER, ELEMENT
$11.85¢5 923
1
#7
17225-KYJ-900
CASE SUB-ASSY., AIR CLEANER
$11.32¢5 658
1
#8
17232-KYJ-900
COLLAR, AIR CLEANER MOUNTING
$1.03¢518
1
#9
17234-KCW-871
TUBE, AIR CLEANER DRAIN
$3.06¢1 529
1
#10
17235-KYJ-900
COVER SUB-ASSY., AIR CLEANER
$19.02¢9 510
1
#11
17240-K33-D00
DUCT, INLET
$18.42¢9 212
1
#12
17245-KYJ-901
LID SUB-ASSY., AIR CLEANER
$4.62¢2 311
1
#13
17253-K33-D00
TUBE, AIR CLEANER CONNECTING
$32.73¢16 365
1
#14
17255-MCG-000
BAND, RESONATOR (28)
$10.94¢5 468
1
#15
17265-KYJ-900
TUBE, BREATHER
$6.30¢3 151
1
#16
17370-419-700
PLUG, BREATHER TUBE
$4.17¢2 087
1
#17
17410-KYJ-900
RESONATOR
$7.49¢3 743
1
#18
17512-KYJ-960
GUIDE, BREATHER TUBE
$5.05¢2 524
1
#19
17724-102-700
CLIP, SUB-TANK HOSE
$4.89¢2 444
1
#20
83545-KCJ-690
RUBBER, SIDE COVER
$1.66¢828
1
#21
90227-GHR-E00
SCREW, PAN (5X25)
$2.46¢1 231
1
#22
90646-657-000
CLIP, AIR HOSE (16MM)
$8.18¢4 088
1
#23
93903-25280
SCREW, TAPPING (5X12)
$1.53¢765
1
#24
93903-25480
SCREW, TAPPING (5X20)
$0.79¢397
1
#25
95002-41200-00
CLAMP, TUBE (D12)
$2.77¢1 386
1
#26
95002-80000
CLIP, TUBE (C12)
$0.55¢276
1
#27
95018-56250
BAND, AIR CLEANER CONNECTING TUBE (56)
$6.04¢3 019
1
#28
95701-06020-08
BOLT, FLANGE (6X20)
$0.44¢218
1
