RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

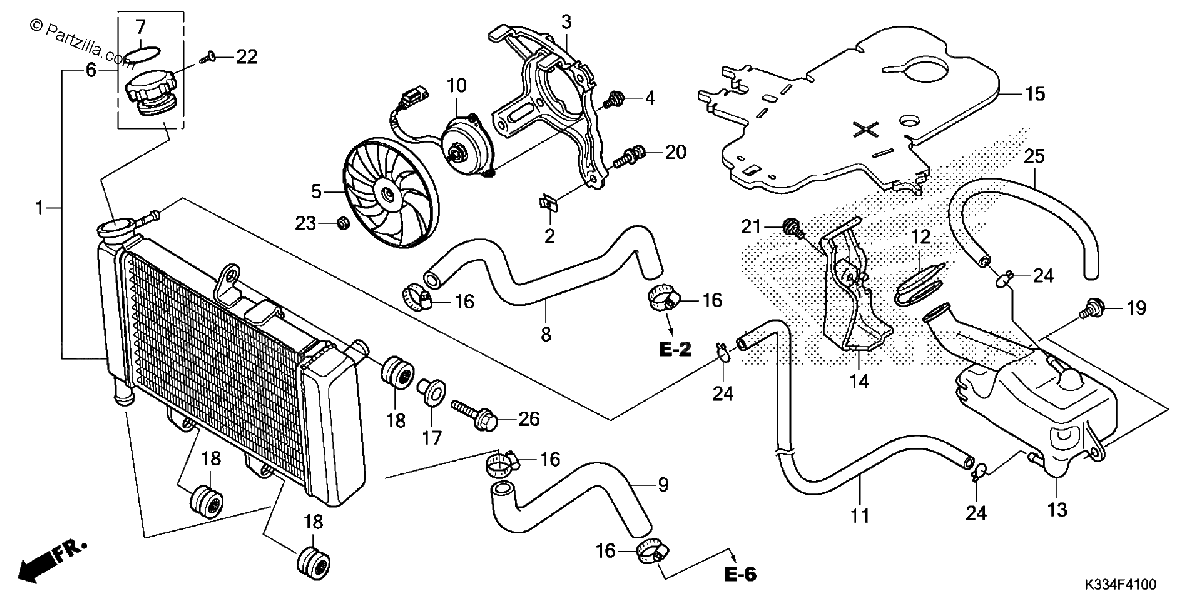

Diagrama de RADIATOR

Repuestos

#1
19010-KYJ-305
RADIATOR (COO)
$133.16¢66 579
1
#2
19014-KEA-003
NUT, SETTING (6MM)
$3.45¢1 725
1
#3
19015-KYJ-305
SHROUD (COO)
$22.23¢11 115
1
#4
19016-KEA-003
SCREW, PAN (4X8.5)
$1.92¢960
1
#5
19020-KVZ-631
FAN, COOLING
$31.31¢15 657
1
#6
19045-KPC-D51
CAP, RADIATOR (TOYO)
$46.08¢23 040
1
#7
19055-KPC-D51
SEAL, RADIATOR CAP
$34.29¢17 147
1
#8
19062-KYJ-900
HOSE, RADIATOR (UPPER)
$16.74¢8 372
1
#9
19067-KYJ-900
HOSE, RADIATOR (LOWER)
$16.27¢8 136
1
#10
19080-KYJ-901
MOTOR Assembly., FAN
$128.62¢64 308
1
#11
19105-KYJ-900
TUBE, RADIATOR BREATHER
$11.01¢5 503
1
#12
19109-KPC-640
CAP, RESERVE TANK
$5.36¢2 680
1
#13
19110-KYJ-900
TANK, RADIATOR RESERVE
$9.61¢4 807
1
#14
19111-KYJ-900
COVER, RADIATOR RESERVE TANK
$2.06¢1 029
1
#15
19125-KYJ-900
RUBBER, HEAT GUARD
$14.36¢7 182
1
#16
19517-ML7-691
CLAMP, HOSE (22-29MM)
$12.41¢6 204
1
#17
61102-KTY-D30
COLLAR, RADIATOR MOUNTING
$4.47¢2 237
1
#18
61304-415-000
RUBBER, HEADLIGHT CASE MOUNTING
$3.86¢1 932
1
#19
90111-162-000
BOLT, FLANGE (6MM)
$3.36¢1 679
1
#20
90120-KCR-003
BOLT-WASHER (6X16)
$4.90¢2 449
1
#21
91509-GE2-760
SCREW, PAN (5X11.5)
$2.81¢1 403
1
#22
93901-22020
SCREW, TAPPING (3X6)
$1.07¢535
1
#23
90315-MFL-003
NUT, FLANGE (3MM)
$2.75¢1 374
1
#24
95002-02100
CLIP, TUBE (B10)
$2.24¢1 121
1
#25
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
1
#26
95701-06022-07
BOLT, FLANGE (6X22)
$1.12¢558
1
