HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

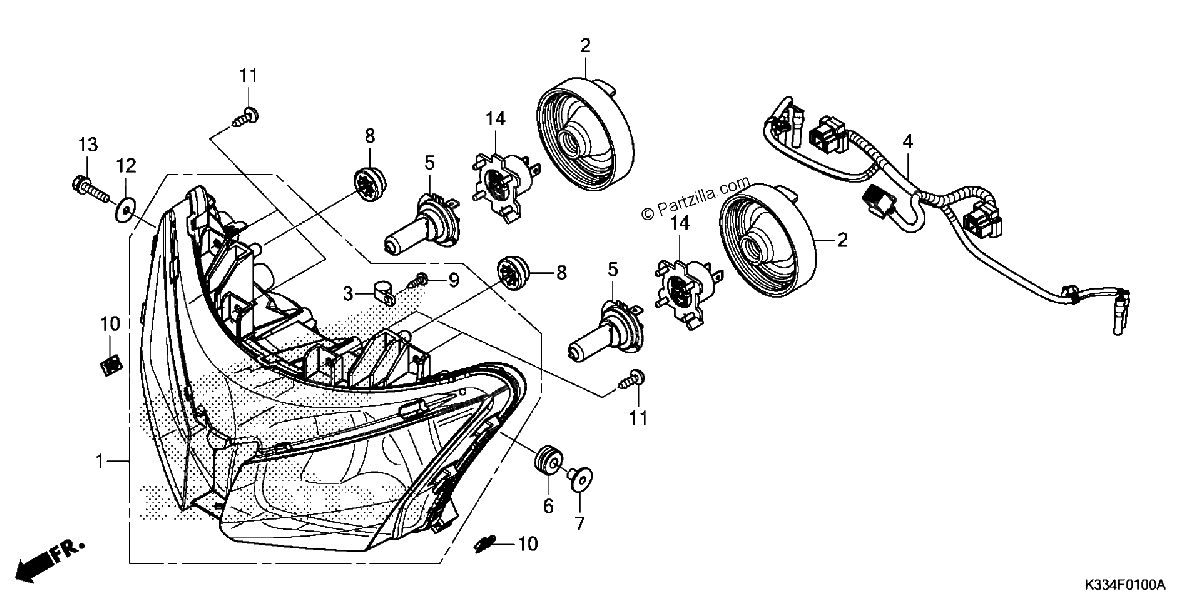

Diagrama de HEADLIGHT

Repuestos

#1
33110-K33-305
HEADLIGHT UNIT (COO)
$272.84¢136 419
1
#001
33110-K33-305
HEADLIGHT UNIT (COO)
$272.84¢136 419
1
#002
33112-KWR-003
COVER, RUBBER
$11.53¢5 763
1
#2
33112-KWR-003
COVER, RUBBER
$11.53¢5 763
1
#3
33115-K33-D01
CLAMP
$2.63¢1 313
1
#003
33115-K33-D01
CLAMP
$2.63¢1 313
1
#004
33120-K33-A01
SOCKET
$58.79¢29 394
1
#4
33120-K33-A01
SOCKET
$58.79¢29 394
1
#5
34901-MGZ-J01
BULB, HEADLIGHT (12V 55W) (H7)(KOITO)
$26.85¢13 425
1
#005
34901-MGZ-J01
BULB, HEADLIGHT (12V 55W) (H7)(KOITO)
$26.85¢13 425
1
#006
61103-357-000
RUBBER, FR. FENDER MOUNTING
$3.98¢1 988
1
#6
61103-357-000
RUBBER, FR. FENDER MOUNTING
$3.98¢1 988
1
#7
61104-KZZ-900
COLLAR
$2.38¢1 188
1
#007
61104-KZZ-900
COLLAR
$2.38¢1 188
1
#8
61304-KRY-900
RUBBER, HEADLIGHT CASE MOUNTING
$1.64¢819
1
#008
61304-KRY-900
RUBBER, HEADLIGHT CASE MOUNTING
$1.64¢819
1
#009
90111-K33-D01
SCREW, TAPPING (4X12)
$2.40¢1 200
1
#9
90111-K33-D01
SCREW, TAPPING (4X12)
$2.40¢1 200
1
#010
90677-KAN-T00
NUT, CLIP (5MM)
$0.83¢413
1
#10
90677-KAN-T00
NUT, CLIP (5MM)
$0.83¢413
1
#11
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
#011
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
#12
94103-06800
WASHER, PLAIN (6MM)
$1.00¢500
1
#012
94103-06800
WASHER, PLAIN (6MM)
$1.00¢500
1
#13
96001-06022-00
BOLT, FLANGE (6X22)
$1.60¢800
1
#013
96001-06022-00
BOLT, FLANGE (6X22)
$1.60¢800
1
#014
33111-K33-D01
ADAPTER
$8.66¢4 331
1
#14
33111-K33-D01
ADAPTER
$8.66¢4 331
1
