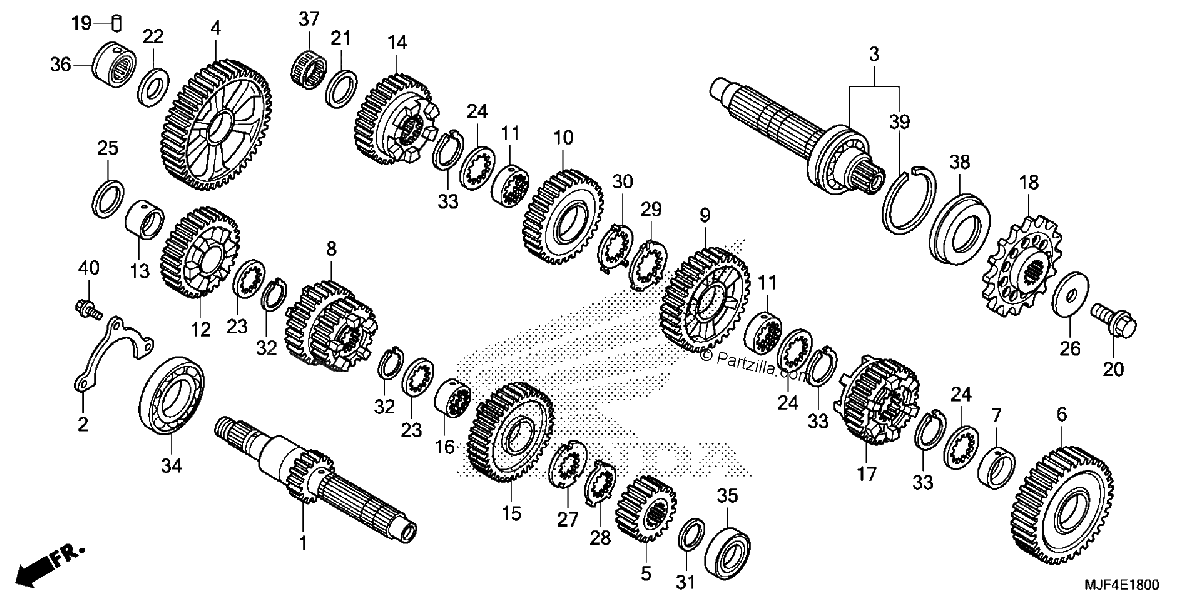

Diagrama de TRANSMISSION CTX700N NA

Repuestos

#001
23211-MGS-D30
MAINSHAFT (16T)
$297.09¢148 544
1
#1
23211-MGS-D30
MAINSHAFT (16T)
$297.09¢148 544
1
#002
23212-MGS-D30
PLATE, MAINSHAFT BEARING SETTING
$4.13¢2 063
1
#2
23212-MGS-D30
PLATE, MAINSHAFT BEARING SETTING
$4.13¢2 063
1
#3
23220-MGS-D30
COUNTERSHAFT
$435.94¢217 969
1
#003
23220-MGS-D30
COUNTERSHAFT
$435.94¢217 969
1
#4
23421-MGS-D30
GEAR, COUNTER FIRST (45T)
$231.68¢115 838
1
#004
23421-MGS-D30
GEAR, COUNTER FIRST (45T)
$231.68¢115 838
1
#5
23431-MGS-D30
GEAR, MAINSHAFT SECOND (19T)
$93.20¢46 600
1
#005
23431-MGS-D30
GEAR, MAINSHAFT SECOND (19T)
$93.20¢46 600
1
#6
23441-MGS-D30
GEAR, COUNTERSHAFT SECOND (36T)
$183.63¢91 813
1
#006
23441-MGS-D30
GEAR, COUNTERSHAFT SECOND (36T)
$183.63¢91 813
1
#7
23442-MM4-000
COLLAR (28MM)
$25.85¢12 925
1
#007
23442-MM4-000
COLLAR (28MM)
$25.85¢12 925
1
#8
23451-MGS-D30
GEAR, MAINSHAFT THIRD & FOURTH(22T/25T)
$220.32¢110 163
1
#008
23451-MGS-D30
GEAR, MAINSHAFT THIRD & FOURTH(22T/25T)
$220.32¢110 163
1
#009
23461-MGS-D30
GEAR, COUNTERSHAFT THIRD (32T)
$121.50¢60 750
1
#9
23461-MGS-D30
GEAR, COUNTERSHAFT THIRD (32T)
$121.50¢60 750
1
#010
23481-MGS-D30
GEAR, COUNTER FOURTH (30T)
$110.25¢55 125
1
#10
23481-MGS-D30
GEAR, COUNTER FOURTH (30T)
$110.25¢55 125
1
#011
23482-MV9-670
COLLAR, SPLINE (28X31X9)
$24.69¢12 344
1
#11
23482-MV9-670
COLLAR, SPLINE (28X31X9)
$24.69¢12 344
1
#012
23491-MGS-D30
GEAR, MAINSHAFT FIFTH (30T)
$121.50¢60 750
1
#12
23491-MGS-D30
GEAR, MAINSHAFT FIFTH (30T)
$121.50¢60 750
1
#013
23492-MGS-D30
COLLAR (25X28X19)
$11.76¢5 881
1
#13
23492-MGS-D30
COLLAR (25X28X19)
$11.76¢5 881
1
#14
23501-MGS-D30
GEAR, COUNTERSHAFT FIFTH (31T)
$217.50¢108 750
1
#014
23501-MGS-D30
GEAR, COUNTERSHAFT FIFTH (31T)
$217.50¢108 750
1
#015
23511-MGS-D30
GEAR, MAINSHAFT SIXTH (37T)
$137.01¢68 506
1
#15
23511-MGS-D30
GEAR, MAINSHAFT SIXTH (37T)
$137.01¢68 506
1
#016
23512-MV9-670
COLLAR, SPLINE (25X28X13)
$34.91¢17 456
1
#16
23512-MV9-670
COLLAR, SPLINE (25X28X13)
$34.91¢17 456
1
#17
23521-MGS-D30
GEAR, COUNTERSHAFT SIXTH (31T)
$189.24¢94 619
1
#017
23521-MGS-D30
GEAR, COUNTERSHAFT SIXTH (31T)
$189.24¢94 619
1
#018
23801-MGS-D30
SPROCKET, DRIVE (16T)
$74.30¢37 150
1
#18
23801-MGS-D30
SPROCKET, DRIVE (16T)
$74.30¢37 150
1
#19
24261-283-000
PIN, GEARSHIFT FORK GUIDE
$5.11¢2 556
1
#019
24261-283-000
PIN, GEARSHIFT FORK GUIDE
$5.11¢2 556
1
#020
90037-422-003
BOLT, SPECIAL (10MM)
$8.89¢4 444
1
#20
90037-422-003
BOLT, SPECIAL (10MM)
$8.89¢4 444
1
#21
90402-MEW-920
WASHER, THRUST (24X32X1.5)
$2.91¢1 456
1
#021
90402-MEW-920
WASHER, THRUST (24X32X1.5)
$2.91¢1 456
1
#022
90451-704-000
WASHER A, THRUST (20MM)
$4.13¢2 063
1
#22
90451-704-000
WASHER A, THRUST (20MM)
$4.13¢2 063
1
#023
90451-KY2-000
WASHER, SPLINE (25X31X1.5)
$4.63¢2 313
1
#23
90451-KY2-000
WASHER, SPLINE (25X31X1.5)
$4.63¢2 313
1
#24
90452-MR7-000
WASHER, SPLINE (28X34X1.5)
$8.15¢4 075
1
#024
90452-MR7-000
WASHER, SPLINE (28X34X1.5)
$8.15¢4 075
1
#025
90456-MA6-000
WASHER, THRUST (25MM)
$3.26¢1 631
1
#25
90456-MA6-000
WASHER, THRUST (25MM)
$3.26¢1 631
1
#026
90459-438-000
WASHER (10.2MM)
$7.08¢3 538
1
#26
90459-438-000
WASHER (10.2MM)
$7.08¢3 538
1
#27
90461-MW0-000
WASHER, SPLINE (25MM)
$7.15¢3 575
1
#027
90461-MW0-000
WASHER, SPLINE (25MM)
$7.15¢3 575
1
#028
90462-MBW-000
WASHER, LOCK (25MM)
$8.79¢4 394
1
#28
90462-MBW-000
WASHER, LOCK (25MM)
$8.79¢4 394
1
#29
90463-MR7-000
WASHER, SPLINE (28MM)
$13.61¢6 806
1
#029
90463-MR7-000
WASHER, SPLINE (28MM)
$13.61¢6 806
1
#030
90464-MR7-000
WASHER, LOCK (28MM)
$13.61¢6 806
1
#30
90464-MR7-000
WASHER, LOCK (28MM)
$13.61¢6 806
1
#31
90469-ME5-000
WASHER, THRUST (20X0.9)
$6.19¢3 094
1
#031
90469-ME5-000
WASHER, THRUST (20X0.9)
$6.19¢3 094
1
#032
90601-107-000
CIRCLIP (25MM)
$4.54¢2 269
1
#32
90601-107-000
CIRCLIP (25MM)
$4.54¢2 269
1
#033
90603-MN4-000
CIRCLIP (28MM)
$4.54¢2 269
1
#33
90603-MN4-000
CIRCLIP (28MM)
$4.54¢2 269
1
#34
91001-MGS-D31
BEARING, RADIAL BALL (31X68X15)
$27.24¢13 619
1
#034
91001-MGS-D31
BEARING, RADIAL BALL (31X68X15)
$27.24¢13 619
1
#35
91006-MGS-D31
BEARING, RADIAL BALL (6204U)
$22.31¢11 156
1
#035
91006-MGS-D31
BEARING, RADIAL BALL (6204U)
$22.31¢11 156
1
#036
91022-MJE-DB1
BEARING, NEEDLE (20MM) (NTN)
$56.28¢28 138
1
#036
91022-KT7-003
BEARING, NEEDLE (20MM) (NTN)
$56.28¢28 138
1
#36
91022-KT7-003
BEARING, NEEDLE (20MM) (NTN)
$56.28¢28 138
1
#37
91026-MEL-003
BEARING, NEEDLE (24X28X10)
$14.00¢7 000
1
#037
91026-MEL-003
BEARING, NEEDLE (24X28X10)
$14.00¢7 000
1
#38
91207-KT8-003
OIL SEAL (34X62X8)
$14.84¢7 419
1
#038
91207-KT8-003
OIL SEAL (34X62X8)
$14.84¢7 419
1
#039
94560-62200
RING, SNAP (62MM)
$4.26¢2 131
1
#39
94560-62200
RING, SNAP (62MM)
$4.26¢2 131
1
#040
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#40
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
