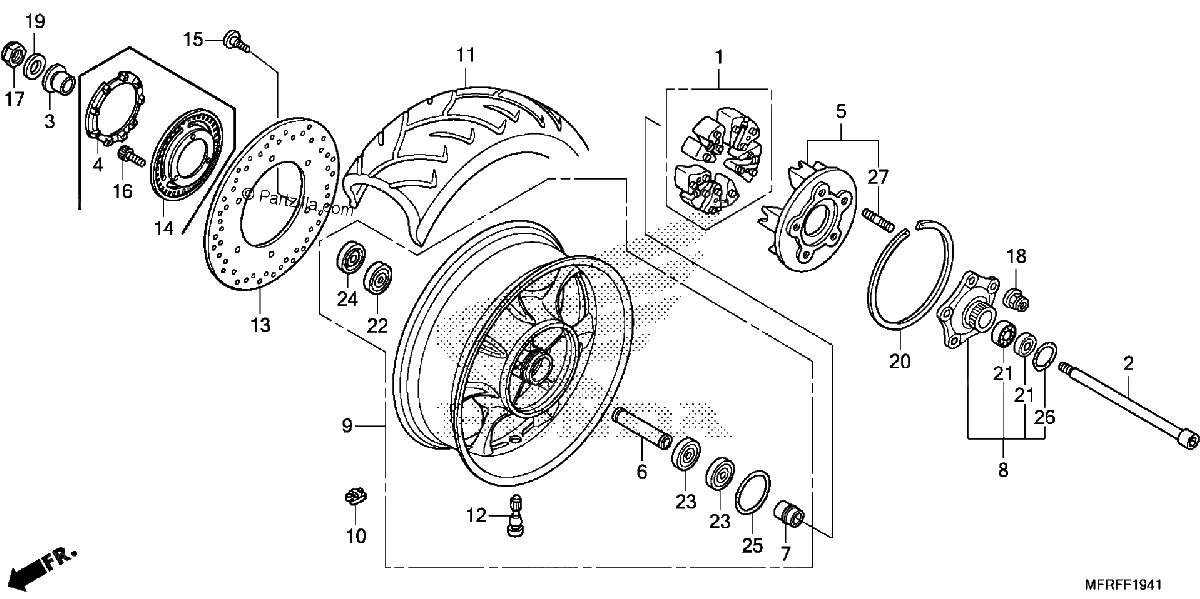

REAR WHEEL 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER SET, WHEEL
$62.81¢31 406
#2
AXLE, RR. WHEEL
$79.37¢39 686
#3
COLLAR, RR. WHEEL
$55.84¢27 922
#4
COVER, PULSER RING
$23.85¢11 925
#5
FLANGE B, FINAL DRIVEN
$297.32¢148 661
#6
COLLAR, RR. AXLE DISTANCE
$40.81¢20 407
#7
COLLAR A, RR. AXLE DISTANCE
$32.84¢16 422
#8
FLANGE SET, FINAL DRIVEN
$311.93¢155 963
#9
WHEEL SUB-ASSY., RR. (COO)
$1439.44¢719 722
#10
WEIGHT, BALANCE (30G)
$20.32¢10 160
#10
WEIGHT, BALANCE (10G)
$10.04¢5 020
#10
WEIGHT, BALANCE (20G)
$20.62¢10 310
#11
TIRE, RR. (200/50R18 M/C 76H) (DUNLOP)
$443.18¢221 588
#11
TIRE, RR. (200/50R18 M/C 76H) (DUNLOP)
$443.18¢221 588
#11
TIRE, RR. (200/50R18 M/C 76H) (METZELER)
$322.48¢161 242
#12
VALVE, RIM (PIRELLI)
$8.61¢4 307
#12
VALVE, RIM (DUNLOP)
$13.60¢6 802
#13
DISK, RR. BRAKE
$504.93¢252 465
#14
RING, FR. PULSER
$157.26¢78 631
#15
BOLT, FR. DISK (8X24) (SAGA)
$6.59¢3 295
#15
BOLT, FR. DISK (8X24)
$6.76¢3 381
#15
BOLT, BRAKE DISK (8X24)
$6.92¢3 461
#15
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$6.92¢3 461
#16
BOLT, TORX (5X10)
$3.36¢1 679
#17
NUT, U (22MM)
$8.58¢4 289
#18
NUT, FLANGE (12MM) (FUSE RASHI)
$4.30¢2 151
#19
WASHER (22X38X2.5)
$6.58¢3 289
#20
CIRCLIP (INNER) (188)
$20.99¢10 494
#21
BEARING, RADIAL BALL (6905RS)
$18.54¢9 269
#22
BEARING, RADIAL BALL (6205X2)
$18.46¢9 229
#23
BEARING, RADIAL BALL (60/28)
$19.99¢9 994
#24
DUST SEAL (35X52X7.5)
$7.72¢3 858
#25
O-RING (61X2)
$5.76¢2 881
#26
O-RING (50.5X3.5) (ARAI)
$4.20¢2 099
#26
O-RING (50.5X3.5) (NOK)
$4.20¢2 099
#27
BOLT 2, STUD (12X32)
$3.36¢1 679
