HANDLE SWITCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

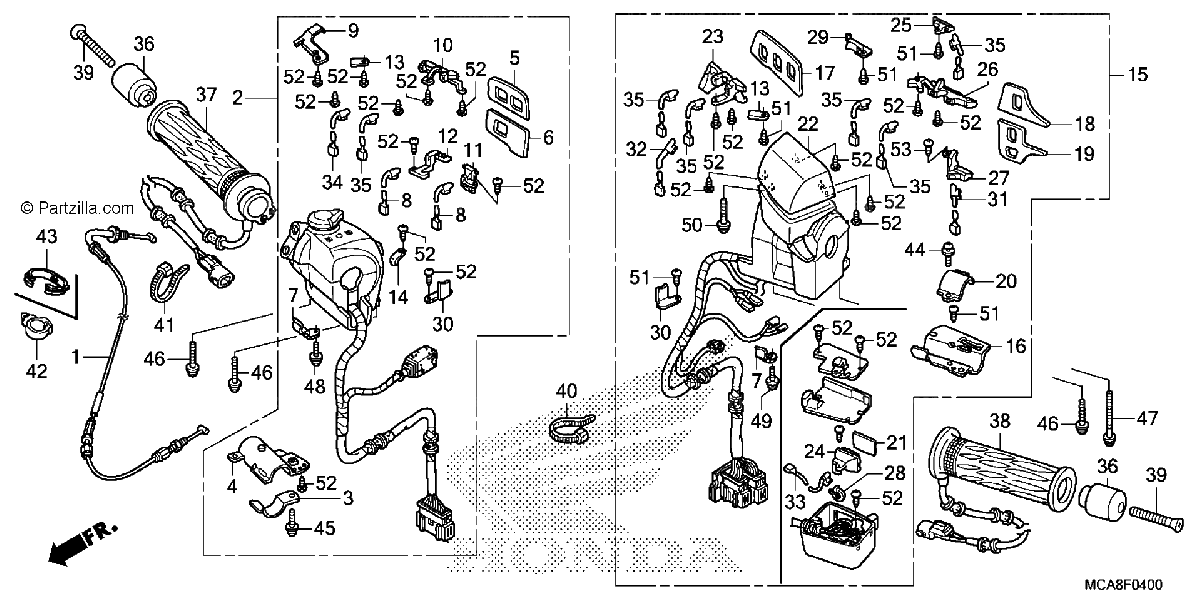

Diagrama de HANDLE SWITCH

Repuestos

#1
17910-MCA-A60
CABLE A, THROTTLE
$25.99¢12 994
1
#2
35130-MCA-S41
SWITCH ASSY., STARTER STOP CRUISE
$393.45¢196 725
1
#3
35132-MCA-003
PLATE A, STOP SWITCH SETTING
$6.80¢3 400
1
#4
35133-MCA-003
PLATE B, STOP SWITCH SETTING
$7.13¢3 563
1
#5
35134-MCA-A20
PLATE, ORNAMENT (A)
$3.65¢1 825
1
#6
35135-MCA-A20
PLATE, ORNAMENT (B)
$3.65¢1 825
1
#7
35135-MCA-A70
CLAMP, WIRE
$1.44¢719
1
#8
35139-MCA-A20
BULB
$11.88¢5 938
1
#9
35141-MCA-A20
CLAMP, WIRE (A)
$1.56¢781
1
#10
35142-MCA-A20
LENS, R. (UPPER)
$20.43¢10 213
1
#11
35143-MCA-A20
LENS, R. (LOWER) (A)
$20.43¢10 213
1
#12
35144-MCA-A20
LENS, R. (LOWER) (B)
$20.43¢10 213
1
#13
35145-MCA-A20
CLAMP, WIRE (B)
$1.56¢781
1
#14
35146-MCA-A20
CLAMP, WIRE (D)
$1.56¢781
1
#15
35200-MCA-S41
SWITCH ASSY., TURN SIGNAL AUDIO
$839.91¢419 956
1
#15
35200-MCA-S81
SWITCH ASSY., TURN SIGNAL AUDIO
$989.00¢494 500
1
#16
35202-MCA-003
PLATE SET A, TURN SIGNAL
$7.31¢3 656
1
#17
35203-MCA-A20
PLATE, ORNAMENT (A)
$5.81¢2 906
1
#18
35205-MCA-S40
PLATE, ORNAMENT (C)
$4.94¢2 469
1
#19
35206-MCA-A20
PLATE, ORNAMENT (D)
$6.44¢3 219
1
#20
35207-MCA-003
PLATE SET B, TURN SIGNAL
$4.04¢2 019
1
#21
35209-MCA-A70
PLATE, ORNAMENT (ZOOM MAP/GUIDE)
$16.23¢8 113
1
#22
35211-MCA-A20
CASE, AUDIO (UPPER)
$17.38¢8 688
1
#23
35212-MCA-A20
LENS, AUDIO
$27.85¢13 925
1
#24
35212-MCA-A70
LENS, NAVIGATION
$12.25¢6 125
1
#25
35213-MCA-A20
LENS, TURN SIGNAL (A)
$20.43¢10 213
1
#26
35214-MCA-A20
LENS, TURN SIGNAL (B)
$17.38¢8 688
1
#27
35215-MCA-A20
LENS (LOWER)
$17.38¢8 688
1
#28
35216-MCA-A70
BAND, WIRE HARNESS
$1.63¢813
1
#29
35217-MCA-S40
CLAMP, WIRE
$1.56¢781
1
#30
35218-MCA-A20
CLAMP, WIRE
$1.56¢781
1
#31
35219-MCA-A20
BULB (T3) (A)
$13.88¢6 938
1
#32
35220-MCA-A20
BULB (T3) (B)
$13.88¢6 938
1
#33
35222-MCA-A70
BULB (T3) (D)
$13.32¢6 663
1
#34
39206-MCA-013
BULB (T3) (C)
$13.85¢6 925
1
#35
39208-MCA-003
BULB (T3) (B)
$13.85¢6 925
1
#36
53105-MK4-620
WEIGHT, HANDLEBAR
$17.44¢8 719
1
#37
53165-MCA-305
GRIP, R. HEATED (COO)
$274.24¢137 119
1
#38
53166-MCA-315
GRIP, L. HEATED (COO)
$292.10¢146 050
1
#39
93901-32320
SCREW, TAPPING (3X12)
$1.11¢556
1
#39
90191-KBG-000
SCREW, OVAL (6X65)
$5.99¢2 994
1
#40
90650-KV6-003
BAND, WIRE (95MM)
$3.77¢1 888
1
#41
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.65¢1 825
1
#42
90652-HC4-003
CLAMP, HARNESS
$7.21¢3 606
1
#43
90683-KJ2-003
CLIP, WIRE HARNESS
$4.33¢2 163
1
#44
93892-05010-08
SCREW-WASHER (5X10)
$1.47¢737
1
#45
93892-05020-08
SCREW-WASHER (5X20)
$1.39¢694
1
#46
93892-05025-07
SCREW-WASHER (5X25)
$1.39¢694
1
#47
93892-05045-07
SCREW-WASHER (5X45)
$1.66¢831
1
#48
93893-04008-07
SCREW-WASHER (4X8)
$0.94¢469
1
#48
93893-04008-17
SCREW-WASHER (4X8)
$1.71¢856
1
#49
93893-04008-17
SCREW-WASHER (4X8)
$1.71¢856
1
#49
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#49
93893-04008-07
SCREW-WASHER (4X8)
$0.94¢469
1
#50
93893-05032-08
SCREW-WASHER (5X32)
No Disponible
1
#51
93901-32120
SCREW, TAPPING (3X8)
$1.01¢506
1
#52
93901-32220
SCREW, TAPPING (3X10)
$1.16¢581
1
