WIRE HARNESS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

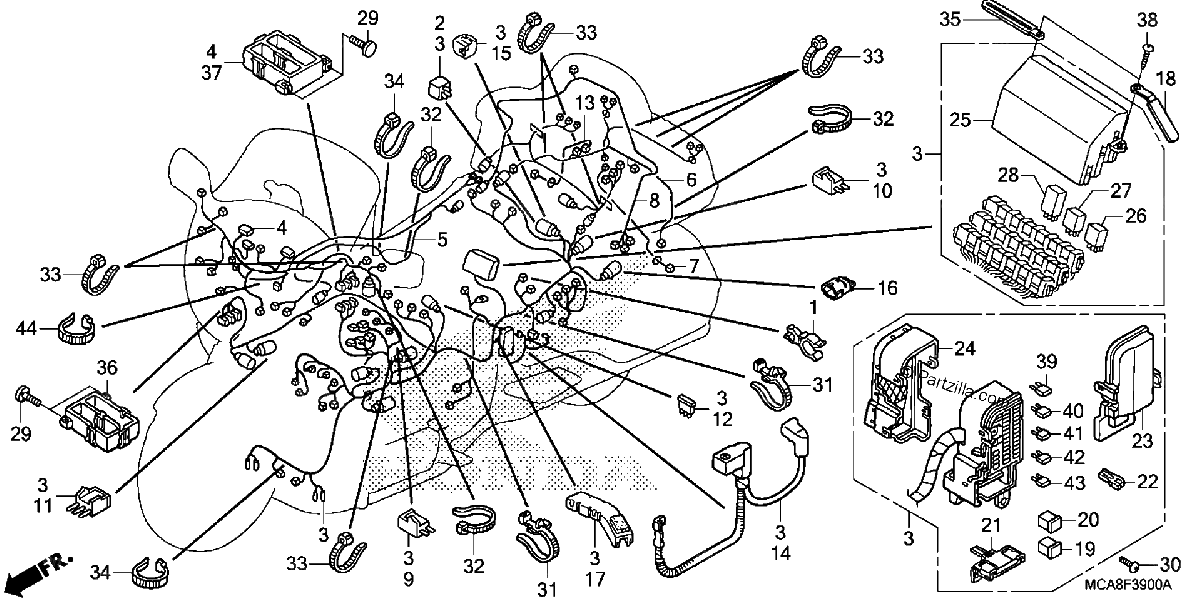

Diagrama de WIRE HARNESS

Repuestos

#1
11338-KJ9-751
CLIP, BREATHER TUBE
$3.53¢1 765
1
#2
31700-MM8-610
RECTIFIER, SILICON
$28.21¢14 105
1
#3
32100-MCA-S50
WIRE HARNESS
$3715.05¢1 857 526
1
#3
32100-MCA-S70
WIRE HARNESS
$3555.29¢1 777 647
1
#3
32100-MCA-S80
WIRE HARNESS
No Disponible
1
#4
32105-MCA-S40
SUB-HARNESS, FAIRING
$371.51¢185 754
1
#4
32105-MCA-S80
SUB-HARNESS, FAIRING
$387.08¢193 539
1
#5
32119-MCA-S40
SUB-HARNESS, AUDIO
$135.25¢67 626
1
#5
32119-MCA-S80
SUB-HARNESS, NAVIGATION
$189.78¢94 892
1
#6
32120-MCA-S40
SUB-HARNESS, RR.
$374.84¢187 421
1
#6
32120-MCA-S80
SUB-HARNESS, RR.
$437.56¢218 782
1
#7
32130-MCA-S40
SUB-HARNESS, L. SADDLEBAG
$41.14¢20 568
1
#8
32140-MCA-S40
SUB-HARNESS, TRUNK UNIT
$165.68¢82 840
1
#9
32146-SH3-003
CONNECTOR, DIODE (2P)
$19.79¢9 896
1
#10
32146-SH3-003
CONNECTOR, DIODE (2P)
$19.79¢9 896
1
#11
32146-SJ4-003
DIODE (3P)
$19.02¢9 510
1
#12
32147-SF1-003
CONNECTOR, DIODE (3P)
$44.25¢22 126
1
#13
32180-MCA-S40
SUB-HARNESS, R. SADDLEBAG
$37.19¢18 596
1
#14
32401-MCA-S40
CABLE, STARTER BATTERY
$42.42¢21 212
1
#15
32606-GEV-761
CAP, DUMMY (4P) (RED)
$5.36¢2 680
1
#16
32606-KCW-J91
CAP, DUMMY (2P) (RED)
$3.81¢1 903
1
#17
32702-MCA-A61
PROTECTOR, HARNESS (B)
$6.14¢3 070
1
#18
32901-MA1-000
CLIP, SUB-WIRE
$6.16¢3 082
1
#19
38211-MCA-A61
FUSE, BLOCK (60A) (LOW-PROFILE)
$2.64¢1 322
1
#20
38211-SNA-A11
FUSE, BLOCK (30A)
$4.83¢2 415
1
#21
38231-SFE-J01
FUSE A, MULTI BLOCK (120A/40A)
$23.72¢11 862
1
#22
38235-S04-003
PULLER, MINI FUSE (SUMITOMO)
$1.15¢575
1
#23
38252-MCA-A61
COVER (UPPER)
$8.85¢4 427
1
#24
38256-MCA-A61
COVER (LOWER)
$8.14¢4 071
1
#25
38281-MCA-A61
COVER (UPPER)
$16.12¢8 061
1
#26
38501-MCA-A61
RELAY ASSY., POWER (MICRO ISO 4P)
$16.51¢8 257
1
#27
38502-MCA-A61
RELAY ASSY., POWER (MICRO ISO 5P)
$16.51¢8 257
1
#28
38503-MCA-A61
RELAY, POWER (MICRO ISO 4P)
$4.47¢2 237
1
#29
90101-TF6-003
BOLT, WELDING (5X16)
$5.07¢2 536
1
#30
90114-KFK-000
SCREW, SPECIAL (5X12)
$1.89¢943
1
#31
90649-SC2-003
BAND, WIRE HARNESS (150MM) (NATURAL)
$6.47¢3 237
1
#32
90650-KV6-003
BAND, WIRE (95MM)
$3.47¢1 737
1
#33
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
1
#34
90652-KT1-771
BAND, WIRE (BLACK)
$4.99¢2 496
1
#35
91411-679-000
CLIP
$19.19¢9 597
1
#36
91571-MCA-P00
HOLDER, CONNECTOR
$3.98¢1 989
1
#37
91571-SR3-003
HOLDER, CONNECTOR
$3.53¢1 765
1
#38
93903-25380
SCREW, TAPPING (5X16)
$1.07¢535
1
#39
98200-40500
FUSE, MINI (5A)
$1.37¢684
1
#40
98200-41000
FUSE, MINI (10A)
$1.56¢782
1
#41
98200-41500
FUSE, MINI (15A)
$1.37¢684
1
#42
98200-42000
FUSE, MINI (20A)
$1.37¢684
1
#43
98200-43000
FUSE, MINI (30A)
$1.98¢989
1
#44
90652-KT1-771
BAND, WIRE (BLACK)
$4.99¢2 496
1
