CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

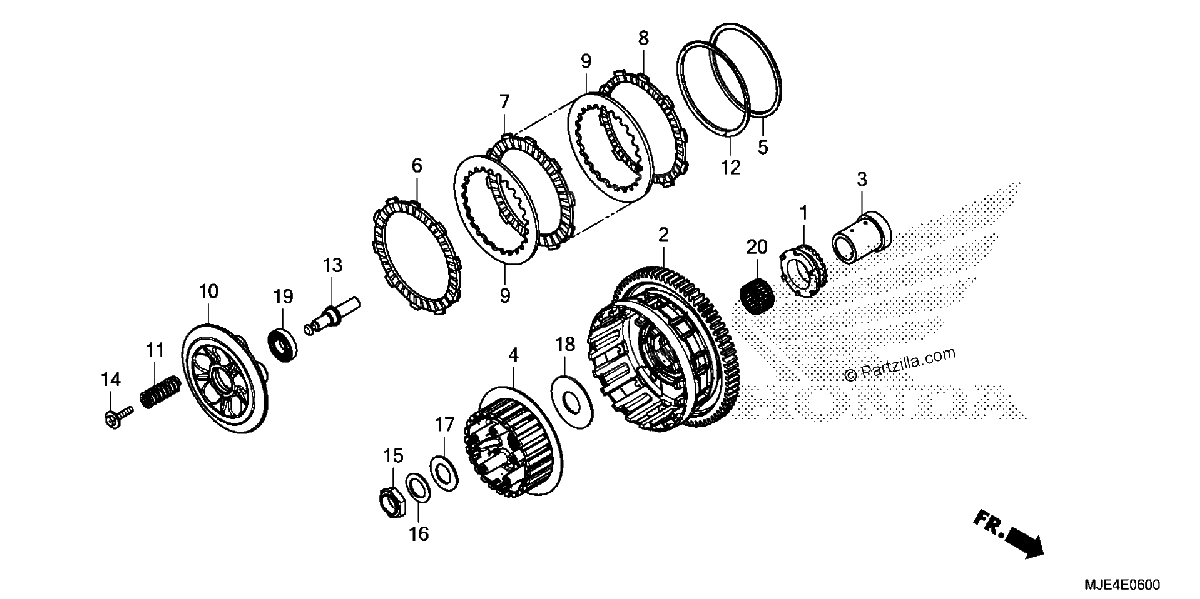

Diagrama de CLUTCH

Repuestos

#001
15131-MJE-D01
SPROCKET, OIL PUMP DRIVE (25T)
$50.82¢25 412
1
#1
15131-MJE-D01
SPROCKET, OIL PUMP DRIVE (25T)
$50.82¢25 412
1
#2
22100-MJE-D00
CLUTCH OUTER (71T)
$282.01¢141 006
1
#002
22100-MJE-D00
CLUTCH OUTER (71T)
$282.01¢141 006
1
#3
22116-MJE-D00
GUIDE, CLUTCH (OUTER)
$23.59¢11 794
1
#003
22116-MJE-D00
GUIDE, CLUTCH (OUTER)
$23.59¢11 794
1
#4
22120-MJE-D00
CENTER, CLUTCH
$46.19¢23 094
1
#004
22120-MJE-D00
CENTER, CLUTCH
$46.19¢23 094
1
#005
22125-ML7-000
SEAT, JUDDER SPRING
$12.49¢6 244
1
#5
22125-ML7-000
SEAT, JUDDER SPRING
$12.49¢6 244
1
#6
22201-MAE-000
DISK, CLUTCH FRICTION
$20.58¢10 288
1
#006
22201-MAE-000
DISK, CLUTCH FRICTION
$20.58¢10 288
1
#7
22201-MFJ-D00
DISK, CLUTCH FRICTION
$15.26¢7 631
1
#007
22201-MFJ-D00
DISK, CLUTCH FRICTION
$15.26¢7 631
1
#008
22202-MAE-000
DISK B, CLUTCH FRICTION
$18.59¢9 294
1
#8
22202-MAE-000
DISK B, CLUTCH FRICTION
$18.59¢9 294
1
#9
22321-ML7-000
PLATE, CLUTCH
$16.39¢8 194
1
#009
22321-ML7-000
PLATE, CLUTCH
$16.39¢8 194
1
#9
22321-MR7-000
PLATE, CLUTCH
$21.15¢10 575
1
#010
22350-MCJ-000
PLATE, CLUTCH PRESSURE
$74.65¢37 325
1
#10
22350-MCJ-000
PLATE, CLUTCH PRESSURE
$74.65¢37 325
1
#011
22401-MJE-D00
SPRING, CLUTCH
$3.65¢1 825
1
#11
22401-MJE-D00
SPRING, CLUTCH
$3.65¢1 825
1
#12
22402-MAS-E00
SPRING, JUDDER
$24.59¢12 294
1
#012
22402-MAS-E00
SPRING, JUDDER
$24.59¢12 294
1
#13
22847-MJE-D00
PIN, CLUTCH LIFTER
$28.11¢14 056
1
#013
22847-MJE-D00
PIN, CLUTCH LIFTER
$28.11¢14 056
1
#14
90024-MAS-000
BOLT-WASHER (6X28)
$4.53¢2 263
1
#014
90024-MAS-000
BOLT-WASHER (6X28)
$4.53¢2 263
1
#015
90231-MJE-D00
NUT, LOCK (22MM)
$5.34¢2 669
1
#15
90231-MJE-D00
NUT, LOCK (22MM)
$5.34¢2 669
1
#16
90432-MM5-000
WASHER, SPRING (22MM)
$9.98¢4 988
1
#016
90432-MM5-000
WASHER, SPRING (22MM)
$9.98¢4 988
1
#17
90451-KG4-000
WASHER, THRUST (22X39X2)
$5.69¢2 844
1
#017
90451-KG4-000
WASHER, THRUST (22X39X2)
$5.69¢2 844
1
#18
90459-MM4-000
WASHER (60X25X2)
$12.45¢6 225
1
#018
90459-MM4-000
WASHER (60X25X2)
$12.45¢6 225
1
#19
91009-MAS-003
BEARING, RADIAL BALL (16003)
$26.36¢13 181
1
#019
91009-MAS-003
BEARING, RADIAL BALL (16003)
$26.36¢13 181
1
#020
91102-MEE-003
BEARING B, NEEDLE (35X41X23.8) (WHITE)
$7.94¢3 969
1
#20
91102-MEE-003
BEARING B, NEEDLE (35X41X23.8) (WHITE)
$7.94¢3 969
1
