REAR BRAKE MASTER CYLINDER CBR650F

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

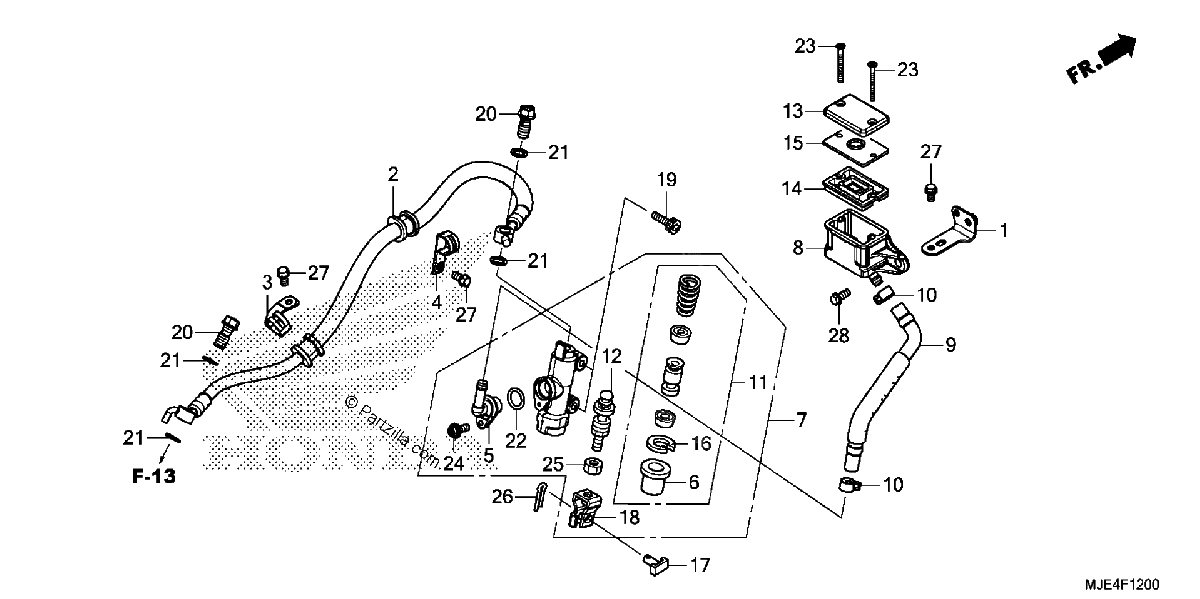

Diagrama de REAR BRAKE MASTER CYLINDER CBR650F

Repuestos

#1
43159-MJE-D00
STAY C, RR. BRAKE
$7.14¢3 571
1
#2
43310-MJE-D01
HOSE, RR. BRAKE
$27.84¢13 921
1
#3
43314-MJE-D00
CLAMP A, RR. BRAKE HOSE
$5.52¢2 760
1
#4
43315-MJE-D00
CLAMP B, RR. BRAKE HOSE
$4.34¢2 168
1
#5
43503-MER-D01
CONNECTOR, MASTER CYLINDER
$9.17¢4 583
1
#6
43504-MB2-006
BOOT
$10.80¢5 399
1
#7
43510-MJE-305
MASTER CYLINDER SUB-ASSY., RR. (COO)
$202.87¢101 436
1
#8
43511-KV3-831
CUP, OIL
$25.32¢12 661
1
#9
43512-MJE-D01
HOSE, RR. MASTER CYLINDER
$12.36¢6 181
1
#10
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
1
#11
43520-MB2-315
PISTON SET, MASTER CYLINDER (NISSIN)
$49.67¢24 834
1
#12
43530-KV3-701
ROD, PUSH
$23.49¢11 747
1
#13
45513-HR0-305
CAP, MASTER CYLINDER (COO)
$4.63¢2 317
1
#13
45513-KK1-771
CAP, MASTER CYLINDER
$4.63¢2 317
1
#14
45520-MG7-006
DIAPHRAGM
$11.33¢5 664
1
#15
45521-HA2-006
PLATE, DIAPHRAGM
$11.59¢5 796
1
#16
46182-MEL-D21
CIRCLIP
$2.30¢1 150
1
#17
46503-MFG-D00
PIN, BRAKE ROD
$5.30¢2 651
1
#18
46504-MAL-601
JOINT, BRAKE ROD
$15.87¢7 935
1
#19
90135-MEL-000
BOLT, SOCKET (6X20)
$1.92¢960
1
#20
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#21
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#22
91212-422-006
O-RING (14.8X2.4)
$3.04¢1 518
1
#23
93600-04040-1G
SCREW, FLAT (4X40)
$0.56¢282
1
#24
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#24
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#25
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#26
94201-20120
PIN, SPLIT (2.0X12)
$1.17¢586
1
#27
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#28
96001-06014-07
BOLT, FLANGE (6X14)
$1.41¢707
1
