AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

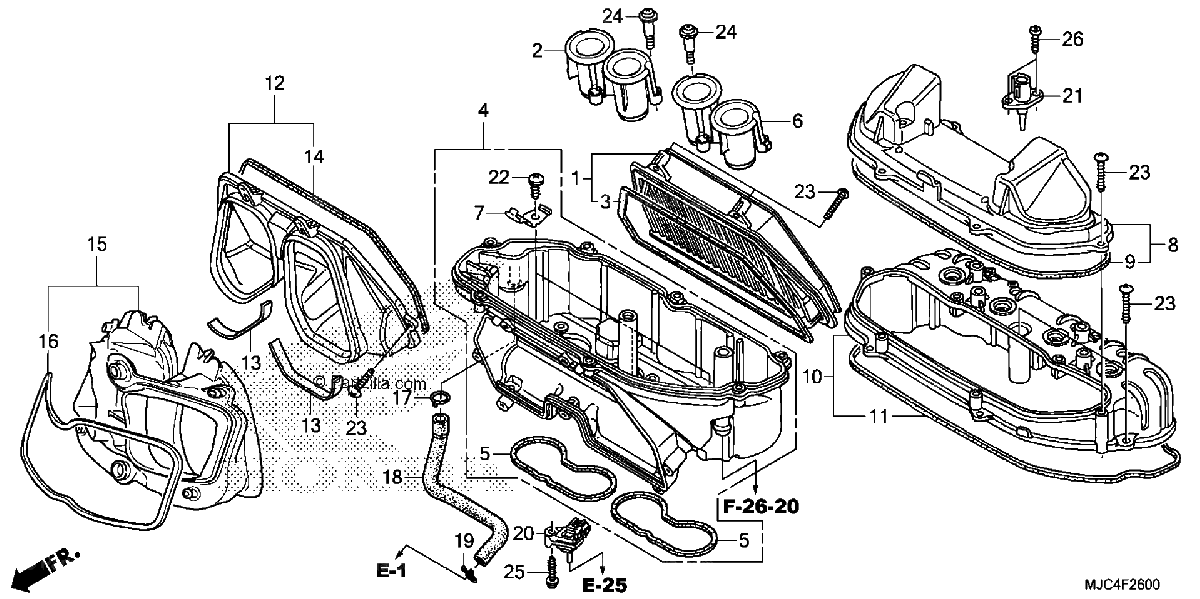

Diagrama de AIR CLEANER

Repuestos

#001
17210-MFJ-D00
ELEMENT, AIR CLEANER
$49.65¢24 825
1
#1
17210-MFJ-D00
ELEMENT, AIR CLEANER
$49.65¢24 825
1
#002
17215-MJC-A00
FUNNEL, R. AIR
$29.49¢14 744
1
#2
17215-MJC-A00
FUNNEL, R. AIR
$29.49¢14 744
1
#003
17218-MFJ-305
SEAL, ELEMENT
$13.30¢6 650
1
#3
17218-MFJ-305
SEAL, ELEMENT
$13.30¢6 650
1
#004
17220-MFJ-D00
HOUSING, AIR CLEANER (LOWER)
$151.54¢75 769
1
#4
17220-MFJ-D00
HOUSING, AIR CLEANER (LOWER)
$151.54¢75 769
1
#5
17222-MFJ-D00
SEAL, THROTTLE BODY
$2.85¢1 425
1
#005
17222-MFJ-D00
SEAL, THROTTLE BODY
$2.85¢1 425
1
#6
17225-MJC-A00
FUNNEL, L. AIR
$29.49¢14 744
1
#006
17225-MJC-A00
FUNNEL, L. AIR
$29.49¢14 744
1
#007
17227-MFJ-D00
RETAINER, AIR CLEANER ELEMENT
$8.49¢4 244
1
#7
17227-MFJ-D00
RETAINER, AIR CLEANER ELEMENT
$8.49¢4 244
1
#008
17230-MFJ-A40
COVER, AIR CLEANER
$86.16¢43 081
1
#8
17230-MFJ-A40
COVER, AIR CLEANER
$86.16¢43 081
1
#009
17232-MFJ-D00
SEAL, AIR CLEANER COVER
$10.29¢5 144
1
#9
17232-MFJ-D00
SEAL, AIR CLEANER COVER
$10.29¢5 144
1
#010
17240-MFJ-D00
HOUSING, AIR CLEANER MIDDLE
$65.16¢32 581
1
#10
17240-MFJ-D00
HOUSING, AIR CLEANER MIDDLE
$65.16¢32 581
1
#011
17242-MFJ-D00
SEAL A, AIR CLEANER MIDDLE CASE
$13.36¢6 681
1
#11
17242-MFJ-D00
SEAL A, AIR CLEANER MIDDLE CASE
$13.36¢6 681
1
#12
17250-MFJ-D00
JOINT A, AIR IN.
$21.85¢10 925
1
#012
17250-MFJ-D00
JOINT A, AIR IN.
$21.85¢10 925
1
#013
17251-MFJ-A40
SEAL, AIR DUCT
$3.66¢1 831
1
#13
17251-MFJ-A40
SEAL, AIR DUCT
$3.66¢1 831
1
#014
17252-MFJ-D00
SEAL, DUCT JOINT
$10.29¢5 144
1
#14
17252-MFJ-D00
SEAL, DUCT JOINT
$10.29¢5 144
1
#015
17271-MJC-A00
JOINT B, AIR IN.
$90.39¢45 194
1
#15
17271-MJC-A00
JOINT B, AIR IN.
$90.39¢45 194
1
#016
17272-MJC-A00
SEAL, JOINT
$16.16¢8 081
1
#16
17272-MJC-A00
SEAL, JOINT
$16.16¢8 081
1
#17
17366-MJ0-000
CLIP B, TUBE
$2.89¢1 444
1
#017
17366-MJ0-000
CLIP B, TUBE
$2.89¢1 444
1
#018
17451-MFJ-D00
TUBE, ENGINE HEAD COVER BREATHER
$9.54¢4 769
1
#18
17451-MFJ-D00
TUBE, ENGINE HEAD COVER BREATHER
$9.54¢4 769
1
#019
17724-102-700
CLIP, SUB-TANK HOSE
$5.31¢2 656
1
#19
17724-102-700
CLIP, SUB-TANK HOSE
$5.31¢2 656
1
#20
37830-MEL-003
SENSOR ASSY., MAP
$150.09¢75 044
1
#020
37830-MEL-003
SENSOR ASSY., MAP
$150.09¢75 044
1
#21
37880-KWW-C01
SENSOR ASSY., AIR TEMPERATURE
$51.75¢25 875
1
#021
37880-KWW-C01
SENSOR ASSY., AIR TEMPERATURE
$51.75¢25 875
1
#22
90101-HW4-680
SCREW, TAPPING (5X12) (DELTA PT)
$2.24¢1 119
1
#022
90101-HW4-680
SCREW, TAPPING (5X12) (DELTA PT)
$2.24¢1 119
1
#023
90105-MFJ-D00
SCREW, TAPPING (4X18) (DELTA PT)
$2.64¢1 319
1
#23
90105-MFJ-D00
SCREW, TAPPING (4X18) (DELTA PT)
$2.64¢1 319
1
#024
91508-MGP-D00
SCREW, PAN (5MM)
$4.84¢2 419
1
#24
91508-MGP-D00
SCREW, PAN (5MM)
$4.84¢2 419
1
#25
93901-25420
SCREW, TAPPING (5X20)
$1.06¢531
1
#025
93901-25420
SCREW, TAPPING (5X20)
$1.06¢531
1
#26
93911-25420
SCREW, TAPPING (5X16)
$1.25¢625
1
#026
93911-25420
SCREW, TAPPING (5X16)
$1.25¢625
1
