TOP SHELTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

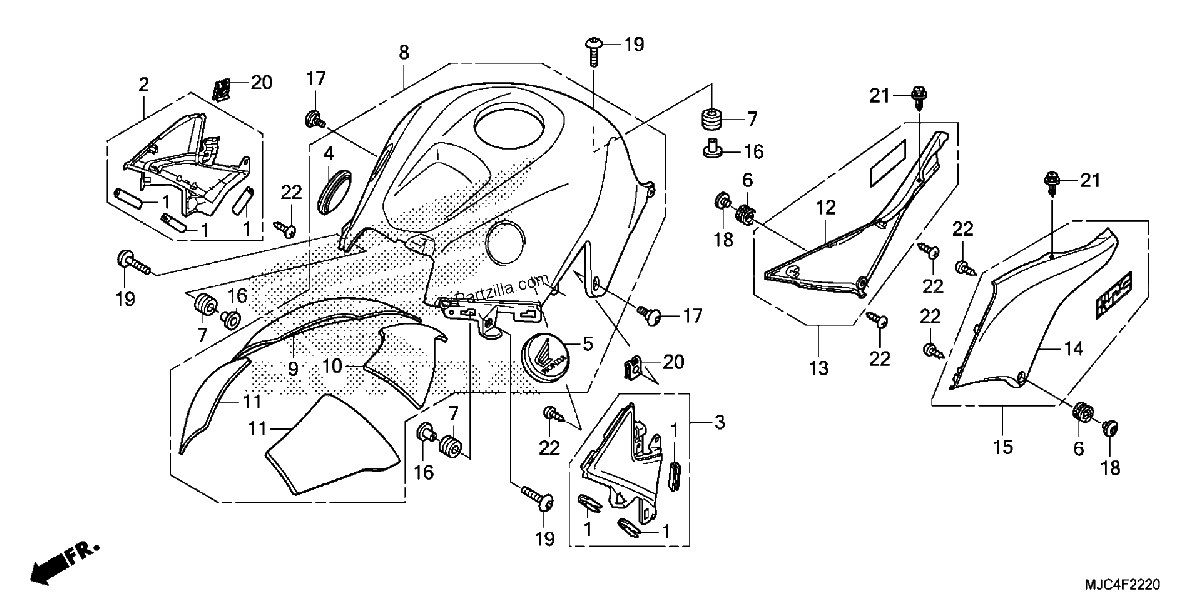

Diagrama de TOP SHELTER

Repuestos

#1
64121-MEL-000
RUBBER, PROTECTOR
$2.42¢1 208
1
#001
64121-MEL-000
RUBBER, PROTECTOR
$2.42¢1 208
1
#2
64315-MJC-A00
COVER, R. MIDDLE
$22.34¢11 172
1
#002
64315-MJC-A00
COVER, R. MIDDLE
$22.34¢11 172
1
#003
64365-MJC-A00
COVER, L. MIDDLE
$22.34¢11 172
1
#3
64365-MJC-A00
COVER, L. MIDDLE
$22.34¢11 172
1
#004
64503-MFL-000
BADGE, R. PRODUCT
$41.08¢20 539
1
#4
64503-MFL-000
BADGE, R. PRODUCT
$41.08¢20 539
1
#5
64508-MFL-000
BADGE, L. PRODUCT
$41.08¢20 539
1
#005
64508-MFL-000
BADGE, L. PRODUCT
$41.08¢20 539
1
#6
64535-MFJ-D00
RUBBER, SIDE COVER
$2.30¢1 150
1
#006
64535-MFJ-D00
RUBBER, SIDE COVER
$2.30¢1 150
1
#7
80101-165-000
RUBBER, Rear FENDER CUSHION
$4.16¢2 081
1
#007
80101-165-000
RUBBER, Rear FENDER CUSHION
$4.16¢2 081
1
#8
83100-MJC-A00ZD
SHELTER Assembly., TOP (TYPE2) (WL)
$1746.82¢873 408
1
#008
83100-MJC-A00ZD
SHELTER Assembly., TOP (TYPE2) (WL)
$1746.82¢873 408
1
#8
83100-MJC-A00ZE
SHELTER Assembly., TOP (TYPE1) (WL)
$1900.39¢950 193
1
#008
83100-MJC-A00ZE
SHELTER Assembly., TOP (TYPE1) (WL)
$1900.39¢950 193
1
#009
83161-MFJ-A00
MAT, R. RR. TOP SHELTER
$12.18¢6 089
1
#9
83161-MFJ-A00
MAT, R. RR. TOP SHELTER
$12.18¢6 089
1
#10
83162-MFJ-A00
MAT, L. RR. TOP SHELTER
$12.18¢6 089
1
#010
83162-MFJ-A00
MAT, L. RR. TOP SHELTER
$12.18¢6 089
1
#11
83165-MFJ-A00
(BOTH SIDES)
$10.94¢5 468
1
#011
83165-MFJ-A00
(BOTH SIDES)
$10.94¢5 468
1
#012
83601-MJC-A00ZB
COVER, R. SIDE *R334* (VICTORY RED)
$22.64¢11 322
1
#12
83601-MJC-A00ZB
COVER, R. SIDE *R334* (VICTORY RED)
$22.64¢11 322
1
#012
83601-MJC-A00ZC
COVER, R. SIDE *NHB01* (GRAPHITE BLACK)
$22.64¢11 322
1
#12
83601-MJC-A00ZC
COVER, R. SIDE *NHB01* (GRAPHITE BLACK)
$22.64¢11 322
1
#014
83701-MJC-A00ZB
COVER, L. SIDE *R334* (VICTORY RED)
$22.64¢11 322
1
#14
83701-MJC-A00ZB
COVER, L. SIDE *R334* (VICTORY RED)
$22.64¢11 322
1
#14
83701-MJC-A00ZC
COVER, L. SIDE *NHB01* (GRAPHITE BLACK)
$22.64¢11 322
1
#014
83701-MJC-A00ZC
COVER, L. SIDE *NHB01* (GRAPHITE BLACK)
$22.64¢11 322
1
#16
84706-163-670
COLLAR, TAILLIGHT MOUNTING
$4.55¢2 277
1
#016
84706-163-670
COLLAR, TAILLIGHT MOUNTING
$4.55¢2 277
1
#17
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#017
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#18
90114-MFJ-D00
SCREW, SPECIAL (5X6)
$2.53¢1 265
1
#018
90114-MFJ-D00
SCREW, SPECIAL (5X6)
$2.53¢1 265
1
#19
90118-MEJ-J00
SCREW, PAN (6X20)
$2.53¢1 265
1
#019
90118-MEJ-J00
SCREW, PAN (6X20)
$2.53¢1 265
1
#20
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#020
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#021
90683-GR1-003
CLIP, BODY COVER
$3.36¢1 679
1
#21
90683-GR1-003
CLIP, BODY COVER
$3.36¢1 679
1
#022
93903-24280
SCREW, TAPPING (4X10)
$1.60¢799
1
#22
93903-24280
SCREW, TAPPING (4X10)
$1.60¢799
1
