SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

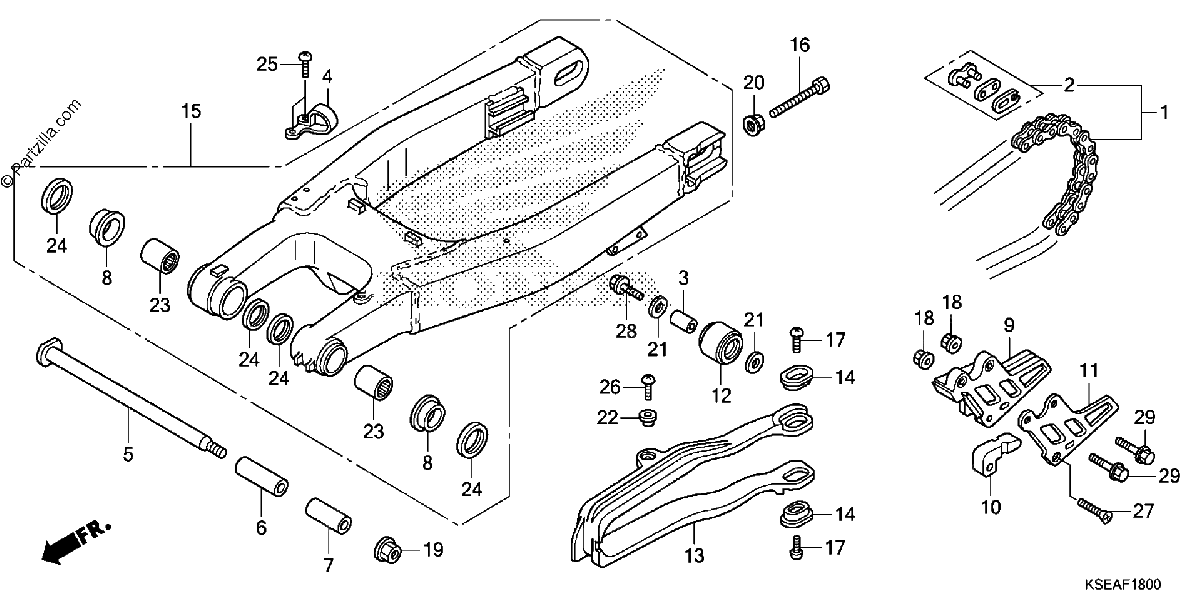

Diagrama de SWINGARM

Repuestos

#1
40530-KSE-671
CHAIN, DRIVE (DID420DS3-120RB) (DAIDO)
$100.11¢50 054
1
#1
40540-KSE-003
CHAIN, DRIVE (DID420DS3-130RB) (DAIDO)
$81.57¢40 785
1
#2
40531-KSE-671
MASTER LINK
$9.18¢4 589
1
#3
43435-392-000
COLLAR, LINK
$6.59¢3 295
1
#4
43468-MEB-000
GUIDE, RR. BRAKE HOSE
$4.30¢2 151
1
#5
52101-KSE-000
SHAFT, SWINGARM PIVOT
$17.51¢8 757
1
#6
52141-GBF-J00
COLLAR, R. SWINGARM
$20.24¢10 120
1
#7
52142-GBF-J00
COLLAR, L. SWINGARM
$17.84¢8 918
1
#8
52143-GBF-J00
COLLAR, THRUST PIVOT
$7.80¢3 899
1
#9
52146-KSE-000
GUIDE, CHAIN
$31.89¢15 945
1
#10
52147-GM7-701
SLIDER, CHAIN GUIDE
$15.65¢7 826
1
#11
52147-KSE-000
PLATE, CHAIN GUIDE
$29.01¢14 507
1
#12
52158-GBF-830
ROLLER, CHAIN TENSIONER
$19.01¢9 505
1
#13
52170-KSE-000
SLIDER, CHAIN
$34.35¢17 175
1
#14
52171-KR6-000
WASHER, CHAIN SLIDER
$3.06¢1 529
1
#15
52200-KSE-000
SWINGARM SUB-ASSY., RR.
$891.23¢445 614
1
#16
90105-MEN-000
BOLT, HEX. (8X47.5)
$3.36¢1 679
1
#17
90115-KV3-700
SCREW, PAN (5X8)
$3.09¢1 547
1
#18
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.54¢2 271
1
#19
90306-KF0-003
NUT, FLANGE (12MM) (FUSE RASHI)
$4.30¢2 151
1
#20
90309-357-000
NUT, HEX. (8MM)
$3.79¢1 897
1
#21
90485-KSE-000
WASHER (8MM)
$2.39¢1 196
1
#22
90520-134-000
WASHER, HEADLIGHT CASE SETTING
$3.15¢1 576
1
#23
91070-GC4-601
BEARING, NEEDLE (20X26X20) (NTN)
$26.42¢13 208
1
#24
91254-KS6-003
DUST SEAL (20X26X4.5) (ARAI)
$9.90¢4 951
1
#25
93500-05008-0A
SCREW, PAN (5X8)
$1.03¢518
1
#26
93500-05010-0G
SCREW, PAN (5X10)
$1.07¢535
1
#27
93600-06040-0A
SCREW, FLAT (6X40)
$1.54¢771
1
#28
95701-08035-00
BOLT, FLANGE (8X35)
$2.71¢1 357
1
#29
96001-06035-00
BOLT, FLANGE (6X35)
$1.66¢828
1
