LEFT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

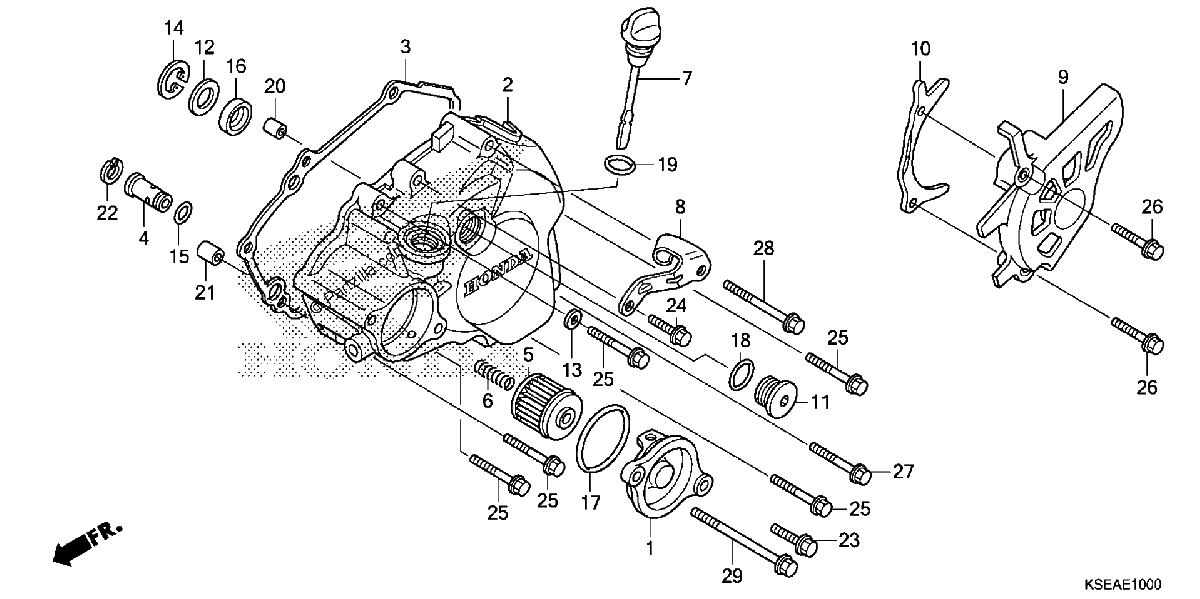

Diagrama de LEFT CRANKCASE COVER

Repuestos

#1
11333-KSE-670
COVER, OIL FILTER
$59.61¢29 806
1
#2
11340-KSE-671
COVER, L. CRANKCASE
$133.19¢66 594
1
#3
11395-KSE-671
GASKET, L. COVER
$15.00¢7 500
1
#4
15220-MEB-670
VALVE ASSY., RELIEF
$32.46¢16 231
1
#5
15412-MEN-671
FILTER, ENGINE OIL
$9.11¢4 556
1
#6
15414-MEB-670
SPRING, OIL FILTER
$3.38¢1 688
1
#7
15650-KSE-670
DIPSTICK, OIL
$14.40¢7 200
1
#8
22838-KSE-670
RECEIVER, CLUTCH CABLE
$10.58¢5 288
1
#9
23810-KSE-670
COVER, DRIVE SPROCKET
$36.19¢18 094
1
#10
23812-KSE-670
GUIDE, DRIVE CHAIN
$17.88¢8 938
1
#11
90084-HB3-000
CAP (14MM)
$14.88¢7 438
1
#11
90084-MN8-010
CAP (14MM)
$14.88¢7 438
1
#12
90401-MEY-670
WASHER (13X24X1.6)
$2.54¢1 269
1
#13
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#14
90602-MEB-670
CIRCLIP, SPECIAL INNER (24MM)
$3.71¢1 856
1
#15
90751-GK1-003
O-RING (8.5X1.7)
$3.49¢1 744
1
#16
91204-HP1-601
OIL SEAL (10X21X5)
$4.45¢2 225
1
#17
91302-PA9-003
O-RING (39.8X2.2) (ARAI)
$6.50¢3 250
1
#18
91303-377-000
O-RING (13.8X2.5)
$4.15¢2 075
1
#19
91307-035-000
O-RING (18X3)
$3.65¢1 825
1
#20
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#21
94301-10160
PIN, DOWEL (10X16)
$2.92¢1 463
1
#22
94520-14000
CIRCLIP, INNER (14MM)
$1.19¢594
1
#23
96001-06016-00
BOLT, FLANGE (6X16)
$1.35¢675
1
#24
96001-06018-00
BOLT, FLANGE (6X18)
$2.21¢1 106
1
#25
96001-06028-00
BOLT, FLANGE (6X28)
$2.79¢1 394
1
#26
96001-06030-00
BOLT, FLANGE (6X30)
$1.80¢900
1
#27
96001-06035-00
BOLT, FLANGE (6X35)
$1.80¢900
1
#28
96001-06045-00
BOLT, FLANGE (6X45)
$2.52¢1 263
1
#29
96001-06075-00
BOLT, FLANGE (6X75)
$2.88¢1 438
1
