FINAL DRIVEN GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

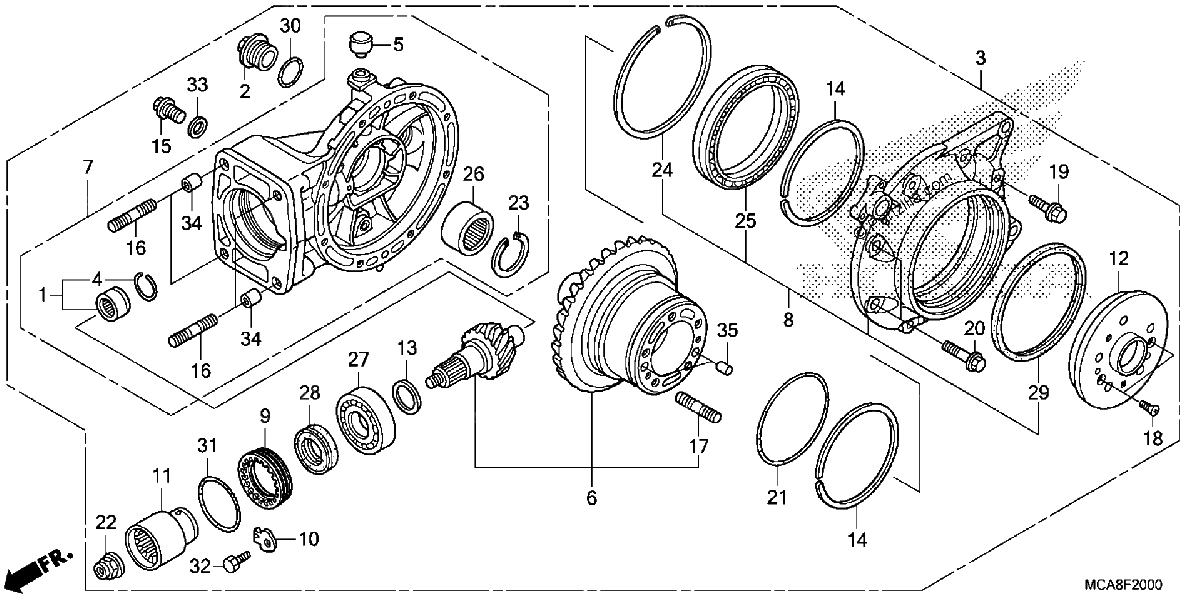

Diagrama de FINAL DRIVEN GEAR

Repuestos

#1
06910-MCA-000
BEARING SET, NEEDLE
$22.76¢11 381
1
#2
12361-035-000
CAP, TAPPET ADJUSTING HOLE
$12.51¢6 256
1
#2
12361-300-000
CAP, VALVE ADJ.
No Disponible
1
#2
12361-371-980
CAP, VALVE ADJ.
No Disponible
1
#3
41300-MJG-670
GEAR ASSY., FINAL
No Disponible
1
#4
41305-MB4-770
RING, STOPPER
$7.24¢3 619
1
#5
41306-MB0-020
CAP, BREATHER
$10.81¢5 406
1
#6
41310-MCA-010
GEAR SET, FINAL
$701.50¢350 750
1
#7
41311-MJG-670
CASE SUB-ASSY., FINAL GEAR
$1732.09¢866 044
1
#8
41320-MCA-000
COVER SUB-ASSY., FINAL GEAR
$500.93¢250 463
1
#9
41331-MN5-000
RETAINER, BEARING
$148.49¢74 244
1
#10
41332-415-000
LOCK A, BEARING ADJUSTING (SINGLE TAB)
$3.24¢1 619
1
#10
41333-415-000
LOCK B, BEARING ADJUSTING (DOUBLE TABS)
$3.24¢1 619
1
#11
41410-MN5-000
JOINT, PINION
$72.45¢36 225
1
#12
41441-MCA-010
FLANGE, FINAL GEAR SIDE
$212.44¢106 219
1
#13
41450-MG9-000
SHIM A, PINION GEAR (1.32)
$9.24¢4 619
1
#13
41451-MG9-000
SHIM B, PINION GEAR (1.38)
$9.24¢4 619
1
#13
41452-MG9-000
SHIM C, PINION GEAR (1.44)
$9.24¢4 619
1
#13
41453-MG9-000
SHIM D, PINION GEAR (1.50)
$9.24¢4 619
1
#13
41454-MG9-000
SHIM E, PINION GEAR (1.56)
$9.24¢4 619
1
#13
41455-MG9-000
SHIM F, PINION GEAR (1.62)
$9.24¢4 619
1
#13
41456-MG9-000
SHIM G, PINION GEAR (1.68)
$9.24¢4 619
1
#14
41547-MCA-000
SHIM S, RING GEAR (1.76)
$10.94¢5 469
1
#14
41546-MCA-000
SHIM R, RING GEAR (1.70)
$11.09¢5 544
1
#14
41542-MCA-000
SHIM M, RING GEAR (2.54)
$6.54¢3 269
1
#14
41541-MCA-000
SHIM L, RING GEAR (2.48)
$10.10¢5 050
1
#14
41540-MCA-000
SHIM K, RING GEAR (2.42)
$10.10¢5 050
1
#14
41539-MCA-000
SHIM J, RING GEAR (2.36)
$10.10¢5 050
1
#14
41538-MCA-000
SHIM I, RING GEAR (2.30)
$10.10¢5 050
1
#14
41537-MCA-000
SHIM H, RING GEAR (2.24)
$10.10¢5 050
1
#14
41536-MCA-000
SHIM G, RING GEAR (2.18)
$10.10¢5 050
1
#14
41535-MCA-000
SHIM F, RING GEAR (2.12)
$10.10¢5 050
1
#14
41534-MCA-000
SHIM E, RING GEAR (2.06)
$10.10¢5 050
1
#14
41533-MCA-000
SHIM D, RING GEAR (2.00)
$10.10¢5 050
1
#14
41532-MCA-000
SHIM C, RING GEAR (1.94)
$10.10¢5 050
1
#14
41531-MCA-000
SHIM B, RING GEAR (1.88)
$10.10¢5 050
1
#14
41530-MCA-000
SHIM A, RING GEAR (1.82)
$10.10¢5 050
1
#15
90118-MCH-000
BOLT, PLUG (14MM)
$8.22¢4 113
1
#16
90124-MCA-300
BOLT, STUD (12X53)
$6.45¢3 225
1
#17
90125-MCA-300
BOLT, STUD (12X46)
$5.46¢2 731
1
#18
90132-MCA-000
SCREW, FLAT (6X16)
$1.86¢931
1
#19
90133-MCA-000
BOLT, FLANGE (8X30)
$1.01¢506
1
#20
90134-MCA-000
BOLT, FLANGE (10X38)
$3.20¢1 600
1
#21
90351-MCA-003
O-RING
$7.05¢3 525
1
#22
90381-MT3-000
NUT, HEX. (16MM)
$8.77¢4 387
1
#23
90652-MCA-003
CIRCLIP (INNER) (47MM)
$5.60¢2 800
1
#24
90653-MCA-000
CIRCLIP (INNER) (125MM)
$25.29¢12 644
1
#25
91051-MCA-003
BEARING, RADIAL BALL (100X125X26)
$152.56¢76 281
1
#26
91052-MCA-003
BEARING, NEEDLE (30X47X23)
$39.74¢19 869
1
#27
91061-MT3-003
BEARING, RADIAL BALL (QJ3/28V1)
$78.80¢39 400
1
#28
91262-MY3-003
OIL SEAL (39X56X7) (NOK)
$15.64¢7 819
1
#29
91265-MCA-003
OIL SEAL (110X125X7)
$25.21¢12 606
1
#30
91302-001-020
O-RING (30.8MM)
$4.54¢2 269
1
#31
91359-MG9-003
O-RING (64.5X3.5) (ARAI)
$5.47¢2 738
1
#32
92101-06012-0A
BOLT, HEX. (6X12)
$1.82¢913
1
#33
94109-14000
WASHER, DRAIN PLUG (14MM)
$0.80¢400
1
#34
94301-14200
PIN, DOWEL (14X20)
$2.94¢1 469
1
#35
94303-10160
PIN, DOWEL (10X16)
$3.17¢1 588
1
