FRONT BRAKE MASTER CYLINDER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

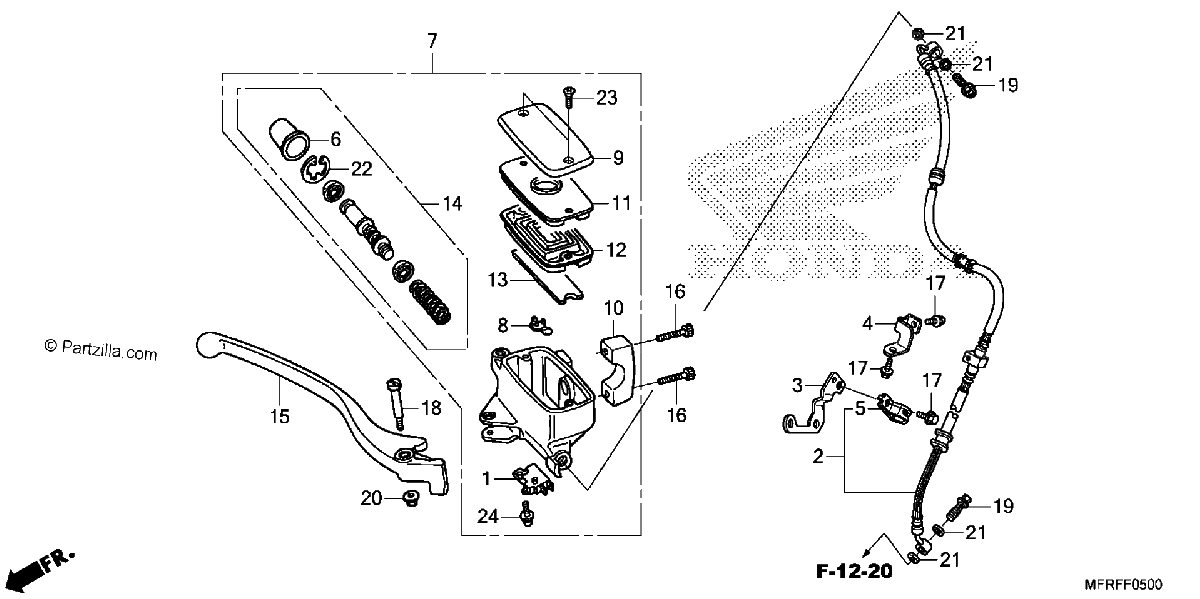

Diagrama de FRONT BRAKE MASTER CYLINDER 1

Repuestos

#1
35340-MM5-601
SWITCH ASSY., FR. STOP
$15.36¢7 682
1
#2
45124-MFY-A01
HOSE A, FR. BRAKE
$128.89¢64 446
1
#3
45152-MFY-A00
BRACKET, L. FR. BRAKE HOSE
$9.26¢4 629
1
#4
45155-MFR-670
STAY, L. FR. BRAKE HOSE
$3.96¢1 978
1
#6
45504-410-003
BOOT
$13.10¢6 549
1
#7
45510-MFR-305
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
$313.95¢156 975
1
#8
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#9
45513-MM5-016
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
1
#9
45513-MR1-016
CAP, MASTER CYLINDER (NISSIN)
$32.69¢16 347
1
#10
45517-MAV-751
HOLDER, MASTER CYLINDER (NISSIN)
$22.13¢11 063
1
#10
45517-MR1-671
HOLDER, MASTER CYLINDER (NISSIN)
$29.09¢14 548
1
#11
45518-MM5-006
PLATE, DIAPHRAGM
$11.37¢5 687
1
#12
45520-MM5-006
DIAPHRAGM
$16.26¢8 131
1
#13
45523-MN5-006
FLOAT, FR. MASTER CYLINDER (NISSIN)
$5.01¢2 507
1
#14
45530-471-831
MASTER CYLINDER SET
$42.69¢21 344
1
#15
53175-MFR-305
LEVER, R. HANDLE (COO)
$20.03¢10 017
1
#15
53175-MR5-305
LEVER, R. HANDLE (COO)
$17.54¢8 769
1
#16
90101-MCL-000
BOLT, SOCKET (6X22)
$1.71¢857
1
#17
90106-MBZ-G00
BOLT, FLANGE (6X10)
$1.60¢799
1
#18
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
1
#19
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#20
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#21
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#22
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#23
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#23
93600-04012-1A
SCREW, FLAT (4X12)
$0.74¢368
1
#23
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#24
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#24
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
