CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

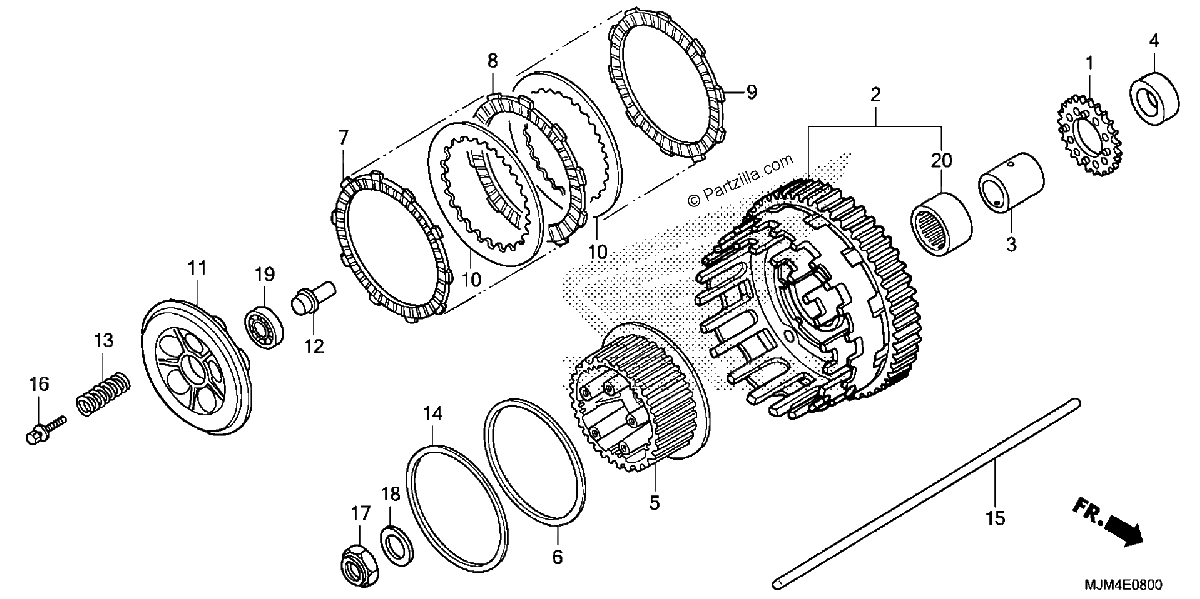

Diagrama de CLUTCH

Repuestos

#1
15131-ML7-000
SPROCKET, OIL PUMP DRIVE (26T)
$51.57¢25 787
1
#2
22100-MCW-000
CLUTCH OUTER
$504.94¢252 469
1
#3
22116-MCW-000
GUIDE, CLUTCH (OUTER)
$26.21¢13 106
1
#4
22117-MCW-000
COLLAR, CLUTCH (OUTER)
$8.43¢4 213
1
#5
22120-MBG-D00
CENTER, CLUTCH
$116.71¢58 356
1
#6
22125-ML7-000
SEAT, JUDDER SPRING
$12.49¢6 244
1
#7
22201-MAE-000
DISK, CLUTCH FRICTION
$20.58¢10 288
1
#8
22201-MAS-E00
DISK, CLUTCH FRICTION
$15.13¢7 563
1
#9
22202-MAE-000
DISK B, CLUTCH FRICTION
$18.59¢9 294
1
#10
22321-MAS-000
PLATE, CLUTCH
$18.09¢9 044
1
#11
22350-MBG-D00
PLATE, CLUTCH PRESSURE
$81.72¢40 863
1
#12
22366-MS2-611
PIECE, CLUTCH JOINT
$21.92¢10 962
1
#13
22401-MBG-D00
SPRING, CLUTCH
$4.95¢2 475
1
#14
22402-MAS-E00
SPRING, JUDDER
$24.59¢12 294
1
#15
22850-MCW-000
ROD, CLUTCH LIFTER
$36.06¢18 031
1
#16
90022-MBG-D00
BOLT-WASHER (6X25)
$1.99¢994
1
#17
90231-MM5-000
NUT, LOCK (22MM)
$12.13¢6 063
1
#18
90432-MM5-000
WASHER, SPRING (22MM)
$9.98¢4 988
1
#19
91008-362-000
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#19
91008-KK6-000
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#19
91010-HC0-003
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#19
91011-KK6-013
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#20
91024-MB0-003
BEARING, NEEDLE (35X42X30) (TOYO)
$110.84¢55 419
1
