CYLINDER HEAD RR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

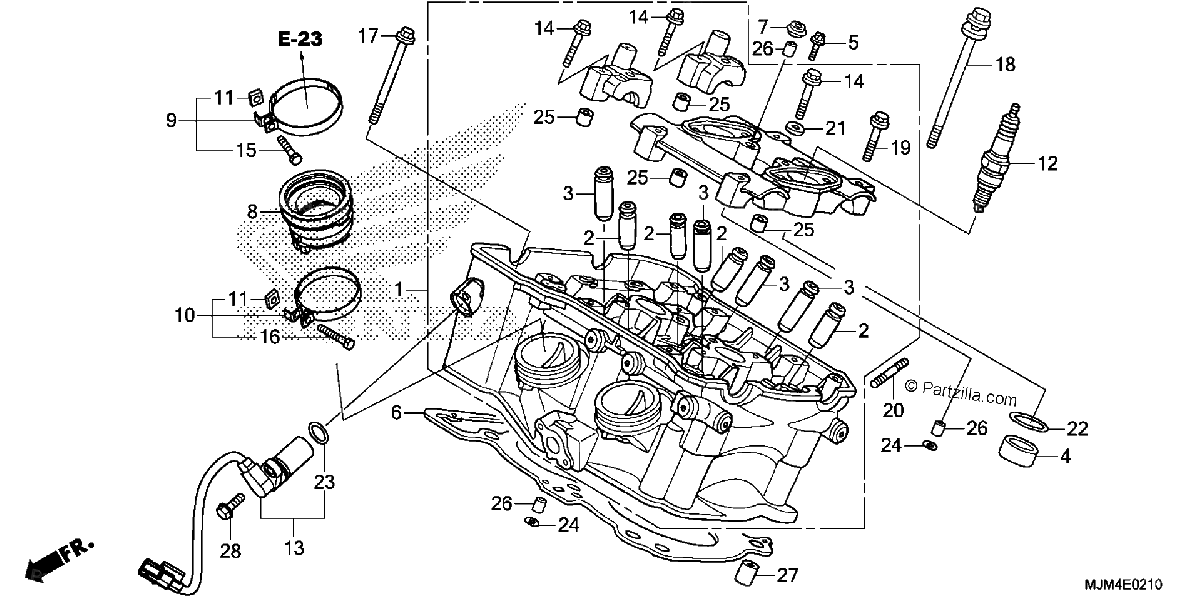

Diagrama de CYLINDER HEAD RR

Repuestos

#1
12020-MJM-D00
CYLINDER HEAD ASSY., RR.
$1474.13¢737 063
1
#2
12204-MCW-305
GUIDE A, VALVE (OVER SIZE)
$21.64¢10 819
1
#3
12205-MCW-305
GUIDE B, VALVE (OVER SIZE)
$23.20¢11 600
1
#4
12217-MBG-000
COLLAR (25MM)
$11.92¢5 962
1
#5
12217-MCE-000
BOLT, ORIFICE
$4.22¢2 113
1
#6
12252-MCW-013
GASKET, RR. CYLINDER HEAD
$60.93¢30 463
1
#7
12396-MBG-000
GASKET C, HEAD COVER
$5.99¢2 994
1
#8
16211-MCW-D00
INSULATOR, THROTTLE BODY
$22.24¢11 119
1
#9
16217-MJM-D00
BAND, INSULATOR
$7.01¢3 506
1
#10
16218-MCW-000
BAND B, INSULATOR
$4.01¢2 006
1
#11
16222-MV4-300
NUT, SQUARE (5MM)
$2.76¢1 381
1
#12
31911-HW1-671
SPARK PLUG (IMR9D-9H) (NGK)
$20.49¢10 244
1
#12
31912-HW1-671
SPARK PLUG (VNH27ZB) (DENSO)
$41.70¢20 850
1
#13
36140-MGY-641
PULSER ASSY., CAM
$241.60¢120 800
1
#14
90002-MCW-000
BOLT, FLANGE (6X45)
$2.30¢1 150
1
#15
90005-MAS-E00
BOLT, RECESSED (5X28)
$4.13¢2 063
1
#16
90005-MM4-000
BOLT, RECESSED (5X32)
$1.38¢688
1
#17
90006-GHB-780
BOLT, FLANGE (6X75) (NSHF)
$2.63¢1 313
1
#18
90007-MCW-000
BOLT-WASHER (9X100)
$5.71¢2 856
1
#19
90016-KT7-000
BOLT, FLANGE (6X37)
$3.65¢1 825
1
#20
90035-MW4-000
BOLT, STUD (6X22)
$3.69¢1 844
1
#21
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#22
91307-PY4-003
O-RING (24.5X1.9)
$3.65¢1 825
1
#23
91309-PX4-003
O-RING (16X2.1) (NOK)
$3.65¢1 825
1
#24
91317-P4V-004
O-RING (9.8X1.9) (ARAI)
$3.59¢1 794
1
#25
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#26
94301-10160
PIN, DOWEL (10X16)
$2.92¢1 463
1
#27
94301-12200
PIN, DOWEL (12X20)
$2.95¢1 475
1
#28
95701-06018-07
BOLT, FLANGE (6X18)
$2.09¢1 044
1
