MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

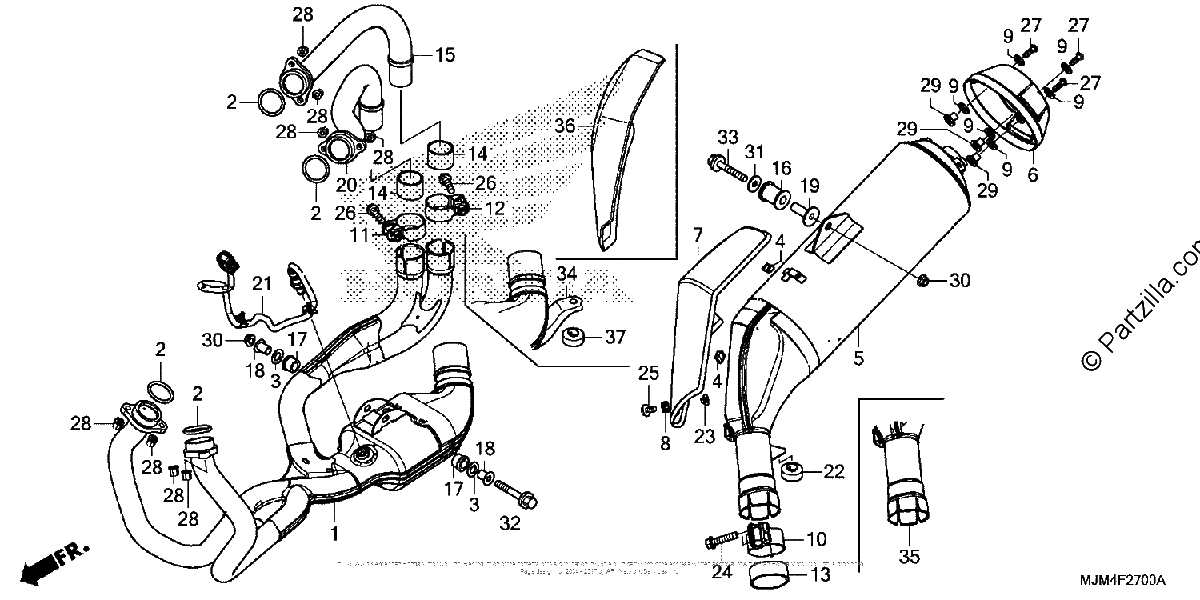

Diagrama de MUFFLER

Repuestos

#1
18150-MJM-D00
PIPE, EX.
No Disponible
1
#2
18291-MN5-650
GASKET, EX. PIPE
$4.58¢2 288
1
#3
18292-MBG-610
GASKET, PROTECTOR
$4.00¢2 000
1
#4
18293-MBC-000
RUBBER, PROTECTOR GASKET
$4.59¢2 294
1
#5
18310-MJM-305
MUFFLER (COO)
$1475.20¢737 600
1
#6
18315-MJM-D00
CAP, MUFFLER TAIL
$64.10¢32 050
1
#7
18325-MJM-D00
PROTECTOR, MUFFLER
$94.74¢47 369
1
#8
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.81¢1 406
1
#9
18365-MEE-D00
WASHER, RUBBER (8.5X13X2.5)
$2.48¢1 238
1
#10
18371-MGY-640
BAND, MUFFLER
$39.00¢19 500
1
#11
18373-MGY-640
BAND, R. EX. PIPE
$25.26¢12 631
1
#12
18374-MGY-640
BAND, L. EX. PIPE
$25.26¢12 631
1
#13
18391-ML0-003
GASKET, MUFFLER
$34.01¢17 006
1
#14
18391-ML8-000
GASKET, MUFFLER
$10.76¢5 381
1
#15
18420-MGY-640
PIPE, R. RR. EX.
$157.21¢78 606
1
#16
18421-MB0-000
RUBBER, MUFFLER MOUNTING
$7.69¢3 844
1
#17
18421-MBG-610
RUBBER, EX. MOUNTING
$9.06¢4 531
1
#18
18422-MBG-610
COLLAR, EX. MOUNTING
$5.94¢2 969
1
#19
18424-MN5-000
COLLAR, CHAMBER MOUNTING
$9.99¢4 994
1
#20
18470-MGY-640
PIPE, L. RR. EX.
$157.21¢78 606
1
#21
36531-MJM-D01
SENSOR, OXYGEN
$308.85¢154 425
1
#22
50524-MCW-D00
RUBBER, STAND STOPPER
$5.20¢2 600
1
#23
50609-MCW-D00
COLLAR, HEAT GUARD SETTING
$3.20¢1 600
1
#24
90103-KCM-620
BOLT, FLANGE (8X35)
$2.03¢1 013
1
#25
90118-MR1-000
SCREW, PAN (6X14)
$3.75¢1 875
1
#26
90125-GS9-000
BOLT, FLANGE (8X32)
$3.65¢1 825
1
#27
90132-MFJ-D00
BOLT, SPECIAL (6X18) (SUS)
$2.97¢1 487
1
#28
90304-HB3-771
NUT, SPECIAL (6MM)
$7.35¢3 675
1
#29
90501-MJM-D00
COLLAR, TAIL CAP
$3.81¢1 906
1
#30
94050-08070
NUT, FLANGE (8MM)
$1.93¢963
1
#31
94103-08700
WASHER, PLAIN (8MM)
$1.21¢606
1
#32
95801-08050-07
BOLT, FLANGE (8X50)
$2.38¢1 188
1
#33
96300-08045-08
BOLT, FLANGE (8X45)
$2.34¢1 169
1
