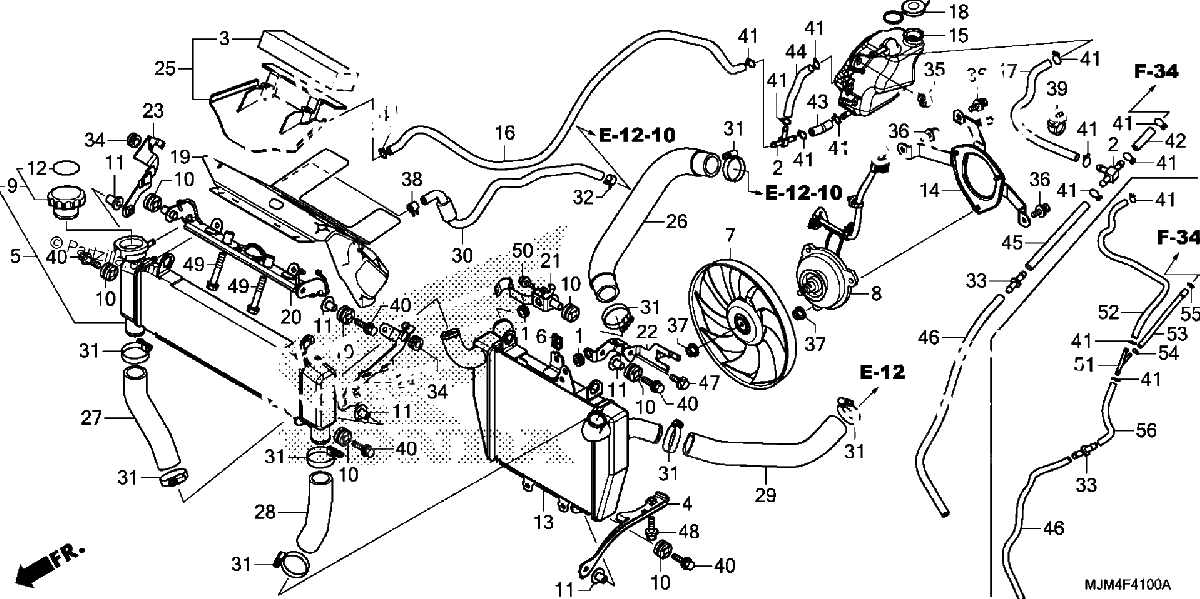

RADIATOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
GROMMET A, RR. COVER (8X16X6.6)
$3.65¢1 825
#2
PIPE, THREE WAY JOINT
$19.15¢9 575
#3
MAT, AIR CLEANER GUIDE
$23.95¢11 975
#4
STAY, RADIATOR (LOWER)
$26.39¢13 194
#5
RADIATOR (UPPER) (COO)
$543.04¢271 519
#6
NUT, SETTING (6MM)
$3.75¢1 875
#7
FAN, COOLING
$52.41¢26 206
#8
MOTOR ASSY., FAN
$410.20¢205 100
#9
CAP, RADIATOR
$47.33¢23 663
#10
RUBBER, RADIATOR MOUNTING
$4.01¢2 006
#11
COLLAR, RADIATOR MOUNTING
$3.20¢1 600
#12
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
$10.79¢5 394
#13
RADIATOR (LOWER) (COO)
$578.61¢289 306
#14
SHROUD
$66.22¢33 113
#15
TANK, RADIATOR RESERVE (COO)
$51.79¢25 894
#16
TUBE, FILLER-RESERVE TANK
$27.73¢13 863
#17
TUBE, RESERVE TANK DRAIN
$11.41¢5 706
#18
CAP, RESERVE TANK
$5.83¢2 913
#19
RUBBER, RADIATOR
$47.31¢23 656
#20
STAY, RADIATOR (UPPER)
$41.60¢20 800
#21
STAY, R. RADIATOR (LOWER/UPPER)
$15.26¢7 631
#22
STAY, L. RADIATOR (LOWER/UPPER)
$19.86¢9 931
#23
STAY, R. RADIATOR
$15.26¢7 631
#24
STAY, L. RADIATOR
$23.14¢11 569
#25
GUIDE, AIR CLEANER
$41.25¢20 625
#26
HOSE, RADIATOR (UPPER)
$27.17¢13 587
#27
HOSE, R. RADIATOR JOINT
$20.96¢10 481
#28
HOSE, L. RADIATOR JOINT
$20.96¢10 481
#29
HOSE, RADIATOR (LOWER)
$27.17¢13 587
#30
TUBE, RADIATOR BREATHER
$28.42¢14 212
#31
CLAMP, HOSE (30-37MM)
$16.15¢8 075
#32
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#33
JOINT, OIL TUBE
$4.95¢2 475
#34
RUBBER, RR. FENDER CUSHION
$2.63¢1 313
#35
BOLT, SPECIAL (6MM)
$3.65¢1 825
#36
BOLT-WASHER (6X12)
$2.48¢1 238
#37
NUT, SERRATE (5MM)
$2.99¢1 494
#38
CLIP, TUBE
$5.65¢2 825
#39
CLIP B, CABLE (9MM BLACK)
$3.75¢1 875
#40
BOLT-WASHER (6X25)
$2.40¢1 200
#41
CLIP, TUBE (B10)
$2.44¢1 219
#42
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$39.89¢19 944
#43
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$39.89¢19 944
#44
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$39.89¢19 944
#45
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$39.89¢19 944
#46
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$39.89¢19 944
#47
BOLT, FLANGE (6X12)
$2.09¢1 044
#48
BOLT, FLANGE (6X20)
$0.47¢238
#49
BOLT, FLANGE (8X45)
$1.89¢944
#50
BOLT, FLANGE (6X12)
$2.31¢1 156
