TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

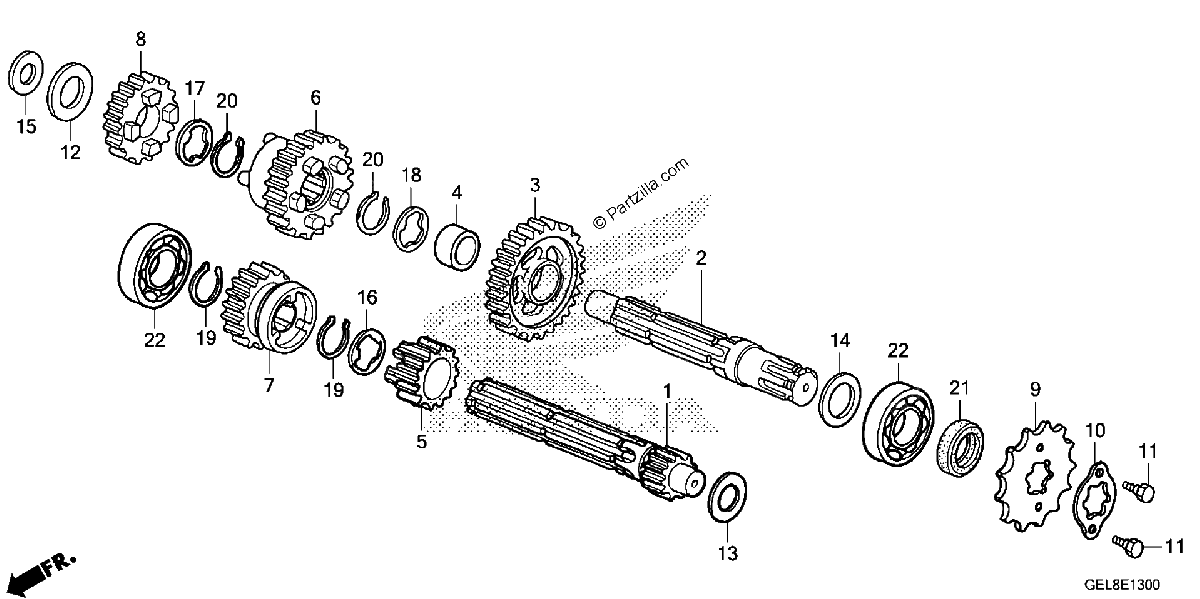

Diagrama de TRANSMISSION

Repuestos

#1
23211-GEL-A80
MAINSHAFT (11T)
$103.24¢51 619
1
#2
23221-GEL-A80
COUNTERSHAFT
$100.60¢50 300
1
#3
23421-GEL-A80
GEAR, COUNTERSHAFT LOW (36T)
$75.06¢37 531
1
#4
23422-GEL-A80
BUSH (20X10)
$13.75¢6 875
1
#5
23431-GEL-A80
GEAR, MAINSHAFT SECOND (15T)
$53.59¢26 794
1
#6
23441-GEL-A80
GEAR, COUNTERSHAFT SECOND (25T)
$86.21¢43 106
1
#7
23471-GEL-A80
GEAR, MAINSHAFT THIRD (21T)
$71.83¢35 913
1
#8
23481-GEL-A80
GEAR, COUNTERSHAFT THIRD (25T)
$64.26¢32 131
1
#9
23800-GEL-A80
SPROCKET, DRIVE (14T)
$23.49¢11 744
1
#10
23802-GEL-A80
PLATE, DRIVE SPROCKET FIXING
$6.50¢3 250
1
#11
90084-041-000
BOLT, DRIVE SPROCKET FIXING
$5.59¢2 794
1
#12
90409-GEL-A80
WASHER A, THRUST
$3.34¢1 669
1
#13
90451-GEL-A80
WASHER, THRUST (14MM)
$3.75¢1 875
1
#14
90452-GB4-770
WASHER, THRUST (17MM)
$2.64¢1 319
1
#15
90453-GEL-A80
WASHER, THRUST (13.5MM)
$3.75¢1 875
1
#16
90461-035-000
WASHER, SPLINE (17MM)
$3.33¢1 663
1
#17
90461-459-010
WASHER, SPLINE (20MM)
$7.13¢3 563
1
#18
90461-GB4-770
WASHER, SPLINE (20X1.2)
$4.36¢2 181
1
#19
90601-KYY-900
CIRCLIP (17MM)
$3.65¢1 825
1
#20
90602-KYY-900
CIRCLIP (20MM)
$4.53¢2 263
1
#21
91204-KWB-601
OIL SEAL (17X29X5)
$1.60¢800
1
#22
91015-GEL-A80
BEARING, RADIAL BALL (6203)
$26.39¢13 194
1
