LEFT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

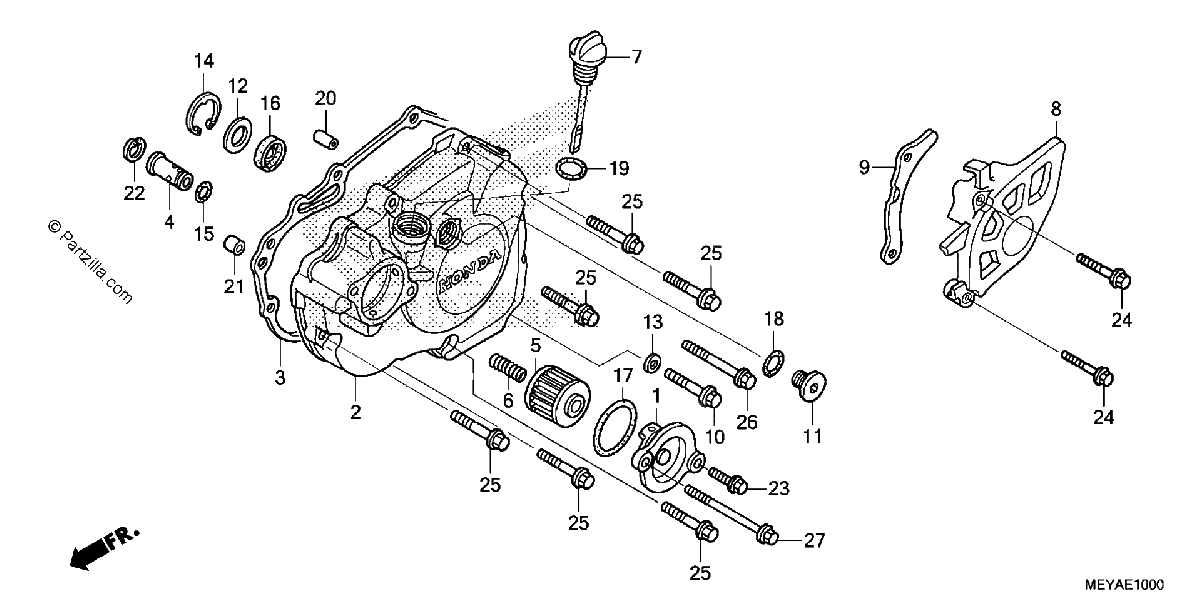

Diagrama de LEFT CRANKCASE COVER

Repuestos

#1
11333-MEB-670
COVER, OIL FILTER
$48.31¢24 156
1
#2
11340-MEY-670
COVER, L. CRANKCASE
$140.13¢70 064
1
#3
11395-MEY-671
GASKET, L. COVER
$13.83¢6 917
1
#4
15220-MEB-770
VALVE ASSY., RELIEF
$25.39¢12 696
1
#5
15412-MEN-671
FILTER, ENGINE OIL
$8.38¢4 192
1
#6
15414-MEB-670
SPRING, OIL FILTER
$3.10¢1 553
1
#7
15650-MEY-670
DIPSTICK, OIL
$19.08¢9 539
1
#8
23810-MEY-A30
COVER, DRIVE SPROCKET
$31.34¢15 669
1
#9
23812-MEY-671
GUIDE, DRIVE CHAIN
$12.71¢6 354
1
#10
90023-MEN-670
BOLT, FLANGE (8X35)
$3.61¢1 805
1
#11
90084-MN8-010
CAP (14MM)
$13.68¢6 842
1
#12
90401-MEY-670
WASHER (13X24X1.6)
$2.33¢1 167
1
#13
90474-333-000
WASHER, SEALING (8MM)
$3.69¢1 846
1
#14
90602-MEB-670
CIRCLIP, SPECIAL INNER (24MM)
$3.42¢1 708
1
#15
90751-GK1-003
O-RING (8.5X1.7)
$3.21¢1 604
1
#16
91204-HP1-601
OIL SEAL (10X21X5)
$4.09¢2 047
1
#17
91302-PA9-003
O-RING (39.8X2.2) (ARAI)
$5.98¢2 990
1
#18
91303-377-000
O-RING (13.8X2.5)
$3.82¢1 909
1
#19
91307-035-000
O-RING (18X3)
$3.36¢1 679
1
#20
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#21
94301-10160
PIN, DOWEL (10X16)
$2.69¢1 346
1
#22
94520-14000
CIRCLIP, INNER (14MM)
$1.09¢546
1
#23
96001-06016-00
BOLT, FLANGE (6X16)
$1.24¢621
1
#24
96001-06030-07
BOLT, FLANGE (6X30)
$2.13¢1 064
1
#25
96001-06032-00
BOLT, FLANGE (6X32)
$1.66¢828
1
#26
96001-06040-00
BOLT, FLANGE (6X40)
$2.56¢1 282
1
#27
96001-06075-00
BOLT, FLANGE (6X75)
$2.64¢1 322
1
