FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

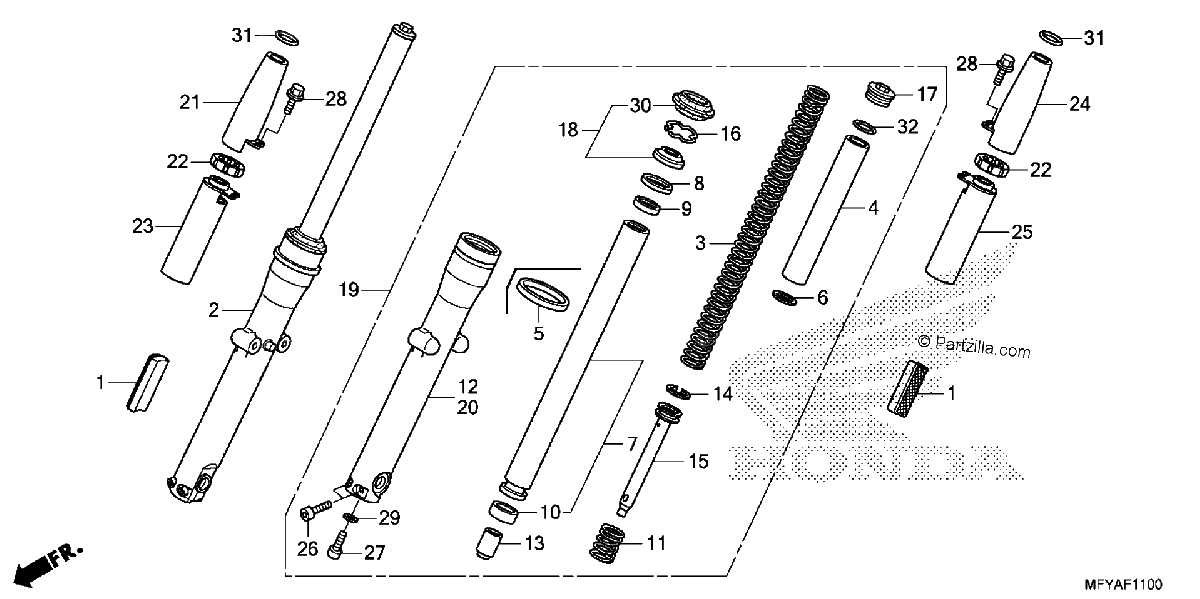

Diagrama de FRONT FORK

Repuestos

#1
33740-MEA-671
REFLECTOR, FR. REFLEX
$35.05¢17 525
1
#2
51400-MFY-306
FORK ASSY., R. FR. (COO)
$1083.05¢541 525
1
#3
51401-MFY-A01
SPRING, FR. FORK
$106.38¢53 188
1
#4
51402-KV3-701
COLLAR, SPRING (SHOWA)
$27.86¢13 931
1
#5
51402-MEA-671
GUIDE, CASE
$8.18¢4 088
1
#6
51404-MB4-003
PLATE, SPRING JOINT
$5.99¢2 994
1
#7
51410-MFY-A01
PIPE, FR. FORK
$513.81¢256 906
1
#8
51412-MB4-003
RING, BACK-UP (SHOWA)
$11.29¢5 644
1
#9
51414-MFJ-A51
BUSH, GUIDE
$8.80¢4 400
1
#10
51415-MFJ-A51
BUSH, SLIDER
$8.80¢4 400
1
#11
51416-MM8-881
SPRING, FR. REBOUND (SHOWA)
$7.14¢3 569
1
#12
51420-MFY-A01
CASE, R. (LOWER)
$512.17¢256 087
1
#13
51432-MV9-003
PIECE, OIL LOCK (SHOWA)
$28.82¢14 413
1
#14
51437-MB4-003
RING, PISTON
$11.20¢5 600
1
#15
51440-MFY-A01
PIPE, SEAT
$56.06¢28 031
1
#16
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#17
51454-MM9-671
BOLT, FR. FORK
$44.54¢22 269
1
#18
51490-MER-R61
SEAL SET, Front FORK
$26.44¢13 219
1
#19
51500-MFY-306
FORK ASSY., L. FR. (COO)
$1083.05¢541 525
1
#20
51520-MFY-A01
CASE, L. (LOWER)
$512.17¢256 087
1
#21
51610-MFY-A00
COVER, R. FR. FORK TOP
$144.00¢72 000
1
#22
51611-MBA-000
MOUNT, Front FORK COVER
$12.56¢6 281
1
#23
51620-MFY-A00
COVER, R. FR. FORK (LOWER)
$148.04¢74 019
1
#24
51660-MFY-A00
COVER, L. FR. FORK TOP
No Disponible
1
#25
51670-MFY-A00
COVER, L. FR. FORK (LOWER)
$141.68¢70 838
1
#26
90109-MCR-D00
BOLT, SOCKET (8X35)
$3.65¢1 825
1
#27
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
1
#28
90123-MBA-000
BOLT, FLANGE (6X12)
$3.65¢1 825
1
#29
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
1
#30
91254-MEE-D01
DUST SEAL (SHOWA)
$10.00¢5 000
1
#31
91305-MC7-000
O-RING (39.5X5)
$4.01¢2 006
1
#32
91356-KF0-003
O-RING (33.2X2.4)
$4.56¢2 281
1
