PEDAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

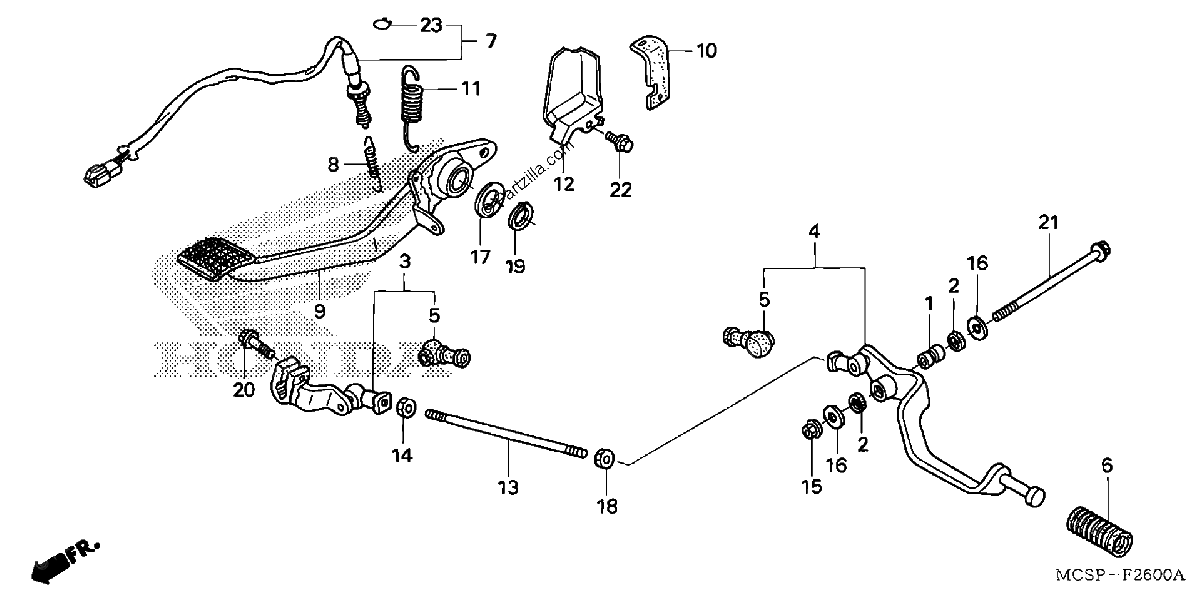

Diagrama de PEDAL

Repuestos

#1
24705-MK3-000
COLLAR, GEARSHIFT PEDAL PIVOT
$12.39¢6 194
1
#2
24706-MK3-770
RUBBER, DUST SEAL
$5.42¢2 713
1
#3
24710-MCS-G00
ARM, GEARSHIFT
$49.84¢24 919
1
#4
24720-MCS-305
PEDAL, GEARSHIFT (COO)
$108.20¢54 100
1
#4
24720-MCS-G00
PEDAL, GEARSHIFT
$108.20¢54 100
1
#5
24724-MBW-D21
COVER, DUST
$8.45¢4 225
1
#6
24781-KR3-770
RUBBER, GEARSHIFT PEDAL
$4.11¢2 056
1
#7
35350-MCS-G00
SWITCH ASSY., RR. STOP
$16.51¢8 256
1
#7
35350-MCS-G01
SWITCH ASSY., RR. STOP (TOYO)
$16.51¢8 256
1
#8
35357-KR3-670
SPRING, STOP SWITCH
$6.20¢3 100
1
#9
46500-MCS-305
PEDAL, RR. BRAKE (COO)
$120.49¢60 244
1
#9
46500-MCS-G00
PEDAL, RR. BRAKE
$120.49¢60 244
1
#10
46506-MCS-G00
RUBBER, RR. BRAKE GUARD
$17.89¢8 944
1
#11
46511-MBW-000
SPRING, BRAKE PEDAL
$7.36¢3 681
1
#12
50618-MCS-G01
COVER, RR. STOP SWITCH
$29.59¢14 794
1
#13
90065-MCS-G00
BOLT, TIE ROD
$4.00¢2 000
1
#14
90201-700-000
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)
$0.99¢494
1
#15
90301-GCT-J50
NUT, FLANGE (8MM)
$1.09¢544
1
#16
90514-921-000
WASHER (8MM)
$1.33¢663
1
#17
90557-230-000
WASHER (15.2X25)
$3.08¢1 538
1
#18
94002-06020-0S
NUT, HEX. (6MM)
$1.41¢706
1
#19
94511-15000
CIRCLIP, OUTER (15MM)
$0.88¢438
1
#20
95701-06020-00
BOLT, FLANGE (6X20)
$2.27¢1 138
1
#21
95701-08110-08
BOLT, FLANGE (8X110)
$5.71¢2 856
1
#22
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#23
90601-KAF-003
CLIP, SWITCH COVER
$3.44¢1 719
1
