FINAL DRIVEN GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

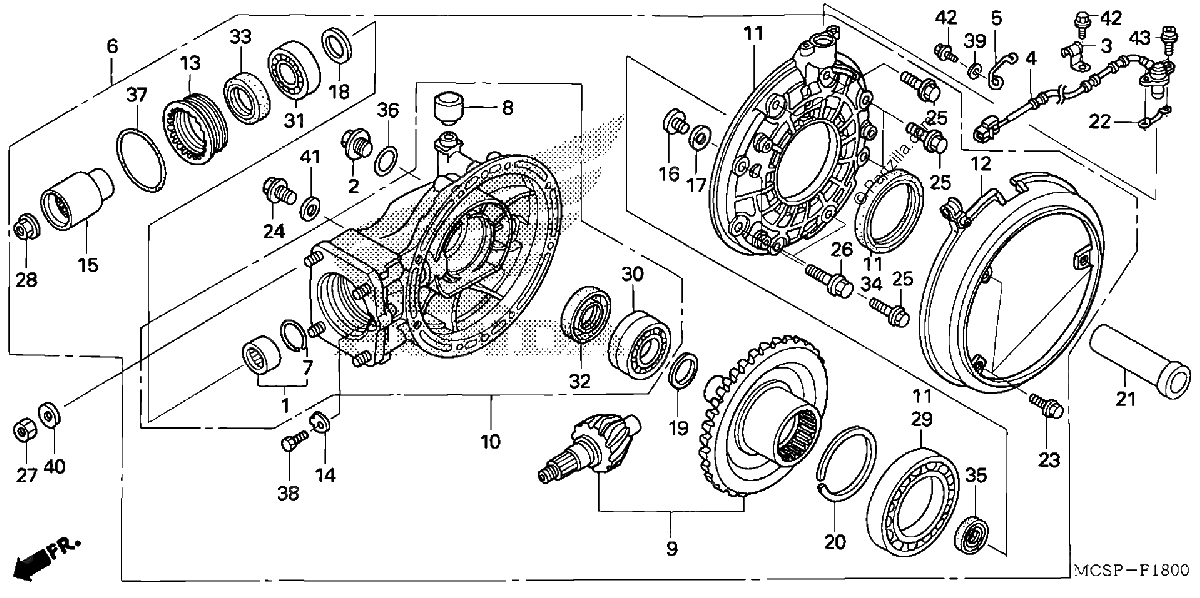

Diagrama de FINAL DRIVEN GEAR

Repuestos

#1
06910-MZ0-000
BEARING SET, NEEDLE
$39.08¢19 538
1
#2
12361-035-000
CAP, TAPPET ADJUSTING HOLE
$11.51¢5 756
1
#2
12361-300-000
CAP, VALVE ADJ.
No Disponible
1
#2
12361-371-980
CAP, VALVE ADJ.
No Disponible
1
#3
16106-KW7-900
CLIP B, TUBE
$3.63¢1 817
1
#4
38510-MCS-G01
SENSOR, RR. WHEEL SPEED
$160.91¢80 454
1
#5
38511-MCS-G00
GUIDE, SPEED SENSOR WIRE
$8.16¢4 082
1
#6
41300-MCS-G02
GEAR ASSY., FINAL DRIVEN
$2085.46¢1 042 728
1
#7
41305-MB4-770
RING, STOPPER
$6.66¢3 329
1
#8
41306-MB0-020
CAP, BREATHER
$9.95¢4 974
1
#9
41310-MCS-G01
GEAR SET, FINAL
$467.31¢233 657
1
#10
41311-MCS-G02
CASE SUB-ASSY., FINAL GEAR
$1441.95¢720 975
1
#11
41320-MCS-G00
COVER SUB-ASSY., FINAL GEAR
$261.11¢130 554
1
#12
41324-MY3-780
PLATE, DUST GUARD
$36.33¢18 164
1
#13
41331-MN5-000
RETAINER, BEARING
$136.61¢68 304
1
#14
41332-415-000
LOCK A, BEARING ADJUSTING (SINGLE TAB)
$2.98¢1 489
1
#14
41333-415-000
LOCK B, BEARING ADJUSTING (DOUBLE TABS)
$2.98¢1 489
1
#15
41410-MCS-G00
JOINT, PINION
$77.96¢38 979
1
#16
41436-MB0-310
PIN, RING GEAR STOPPER
$37.80¢18 900
1
#17
41437-MB0-310
SHIM A, STOPPER PIN (0.10)
$6.27¢3 134
1
#17
41438-MB0-310
SHIM B, STOPPER PIN (0.15)
$5.73¢2 864
1
#18
41457-MT3-610
SHIM H, PINION GEAR (1.53)
$8.81¢4 405
1
#18
41462-MT3-610
SHIM M, PINION GEAR (1.68)
$8.81¢4 405
1
#18
41461-MT3-610
SHIM L, PINION GEAR (1.65)
$8.81¢4 405
1
#18
41460-MT3-610
SHIM K, PINION GEAR (1.62)
$8.81¢4 405
1
#18
41459-MT3-610
SHIM J, PINION GEAR (1.59)
$8.81¢4 405
1
#18
41458-MT3-610
SHIM I, PINION GEAR (1.56)
$8.81¢4 405
1
#18
41450-MT3-610
SHIM A, PINION GEAR (1.32)
$8.81¢4 405
1
#18
41456-MT3-610
SHIM G, PINION GEAR (1.50)
$8.81¢4 405
1
#18
41455-MT3-610
SHIM F, PINION GEAR (1.47)
$8.81¢4 405
1
#18
41454-MT3-610
SHIM E, PINION GEAR (1.44)
$8.81¢4 405
1
#18
41453-MT3-610
SHIM D, PINION GEAR (1.41)
$8.81¢4 405
1
#18
41452-MT3-610
SHIM C, PINION GEAR (1.38)
$8.81¢4 405
1
#18
41451-MT3-610
SHIM B, PINION GEAR (1.35)
$8.81¢4 405
1
#19
41510-MB0-003
WASHER, SPECIAL (35X40)
$14.54¢7 268
1
#20
41546-MT3-610
SHIM Q, RING GEAR (2.30)
$26.89¢13 443
1
#20
41545-MT3-610
SHIM P, RING GEAR (2.27)
$26.89¢13 443
1
#20
41544-MT3-610
SHIM O, RING GEAR (2.24)
$26.89¢13 443
1
#20
41539-MT3-610
SHIM J, RING GEAR (2.09)
$26.89¢13 443
1
#20
41543-MT3-610
SHIM N, RING GEAR (2.21)
$26.89¢13 443
1
#20
41542-MT3-610
SHIM M, RING GEAR (2.18)
$26.89¢13 443
1
#20
41541-MT3-610
SHIM L, RING GEAR (2.15)
$26.89¢13 443
1
#20
41540-MT3-610
SHIM K, RING GEAR (2.12)
$28.09¢14 047
1
#20
41533-MT3-610
SHIM D, RING GEAR (1.91)
$26.89¢13 443
1
#20
41538-MT3-610
SHIM I, RING GEAR (2.06)
$28.09¢14 047
1
#20
41537-MT3-610
SHIM H, RING GEAR (2.03)
$26.89¢13 443
1
#20
41536-MT3-610
SHIM G, RING GEAR (2.00)
$28.09¢14 047
1
#20
41535-MT3-610
SHIM F, RING GEAR (1.97)
$26.89¢13 443
1
#20
41534-MT3-610
SHIM E, RING GEAR (1.94)
$28.09¢14 047
1
#20
41532-MT3-610
SHIM C, RING GEAR (1.88)
$26.89¢13 443
1
#20
41531-MT3-610
SHIM B, RING GEAR (1.85)
$28.09¢14 047
1
#20
41530-MT3-610
SHIM A, RING GEAR (1.82)
$26.89¢13 443
1
#21
42625-MCS-760
COLLAR B, RR. AXLE DISTANCE
$36.74¢18 371
1
#22
57451-MY3-780
SHIM, WHEEL SENSOR
$23.36¢11 678
1
#23
90013-883-000
BOLT, FLANGE (6X12) (CT200)
$1.75¢874
1
#24
90118-MCH-000
BOLT, PLUG (14MM)
$7.57¢3 783
1
#25
90133-MB0-000
BOLT, FLANGE (8X27)
$9.04¢4 520
1
#26
90134-HA0-000
BOLT, FLANGE (10X35)
$8.80¢4 399
1
#27
90308-357-000
NUT, HEX. (10MM)
$5.43¢2 714
1
#28
90381-MT3-000
NUT, HEX. (16MM)
$8.07¢4 036
1
#29
91051-MN5-003
BEARING, RADIAL BALL (65X100X11) (TOYO)
$125.29¢62 646
1
#30
91052-MCS-G01
BEARING, RADIAL BALL (35X62X19)
$49.39¢24 696
1
#31
91061-MT3-003
BEARING, RADIAL BALL (QJ3/28V1)
$72.50¢36 248
1
#32
91261-MY3-003
OIL SEAL (35X54X8) (NOK)
$16.93¢8 464
1
#33
91262-MY3-003
OIL SEAL (39X56X7) (NOK)
$14.39¢7 193
1
#34
91265-MY3-003
OIL SEAL (65X85X7) (NOK)
$18.14¢9 068
1
#35
91268-463-003
DUST SEAL (26X40X5)
$7.38¢3 691
1
#36
91302-001-020
O-RING (30.8MM)
$4.17¢2 087
1
#37
91359-MG9-003
O-RING (64.5X3.5) (ARAI)
$5.04¢2 519
1
#38
92101-06012-0A
BOLT, HEX. (6X12)
$1.68¢839
1
#39
94101-06000
WASHER, PLAIN (6MM)
$0.77¢385
1
#39
94101-06080
WASHER, PLAIN (6MM)
$0.77¢385
1
#39
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#40
94101-10000
WASHER, PLAIN (10MM)
$1.36¢678
1
#41
94109-14000
WASHER, DRAIN PLUG (14MM)
$0.74¢368
1
#42
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
#43
96001-06014-00
BOLT, FLANGE (6X14)
$2.13¢1 064
1
