FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

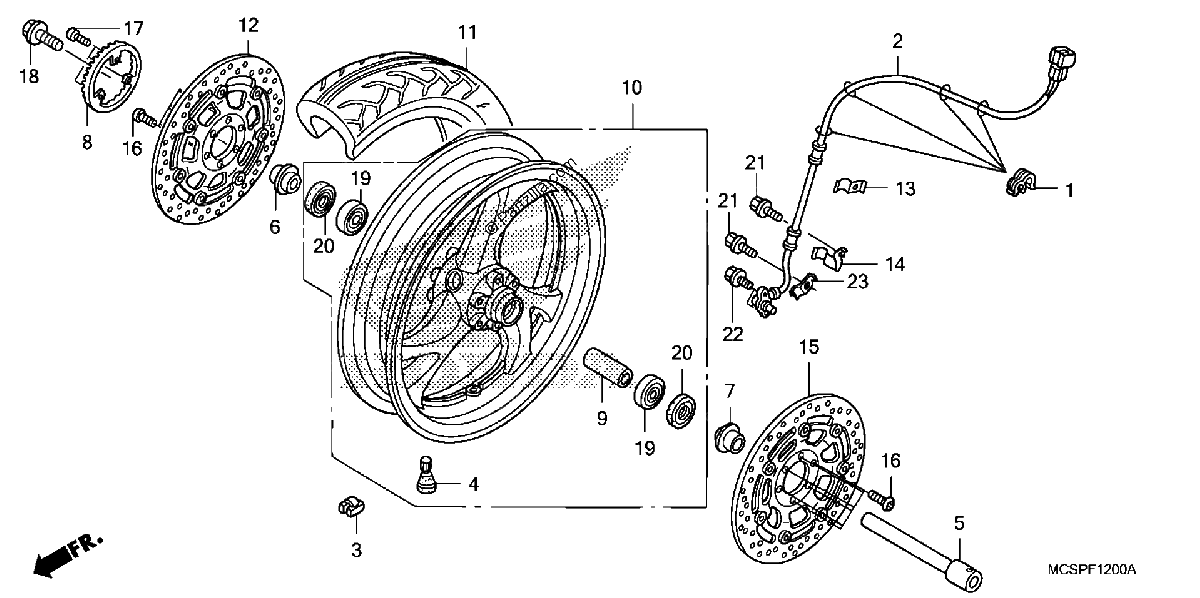

Diagrama de FRONT WHEEL

Repuestos

#1
17368-KV7-671
CLAMP, PIPE
$2.75¢1 374
1
#2
38520-MCS-D91
SENSOR, FR. WHEEL SPEED
$170.08¢85 042
1
#3
42704-MCF-D60
WEIGHT, BALANCE (10G)
$13.60¢6 802
1
#3
42705-MCF-D60
WEIGHT, BALANCE (20G)
$18.22¢9 108
1
#3
42706-MCF-D60
WEIGHT, BALANCE (30G)
$15.47¢7 734
1
#4
42753-ML7-003
VALVE, RIM (BS)
$13.60¢6 802
1
#5
44301-MCS-G01
AXLE, FR. WHEEL
$82.69¢41 343
1
#6
44311-MCS-G00
COLLAR, R. FR. WHEEL SIDE
$28.15¢14 076
1
#7
44312-MCS-G00
COLLAR, L. FR. WHEEL SIDE
$22.09¢11 046
1
#8
44515-MCS-R10
RING, FR. PULSER
$51.26¢25 628
1
#9
44620-MCS-G00
COLLAR, FR. AXLE DISTANCE
$29.01¢14 507
1
#10
44650-MCS-306
WHEEL SUB-ASSY., FR. (COO)
$1047.20¢523 601
1
#10
44650-MCS-760
WHEEL SUB-ASSY., FR.
$1047.20¢523 601
1
#11
44711-MCS-G04
TIRE, FR. (120/70ZR18 M/C 59W) (BS)
$272.75¢136 373
1
#12
45120-MCS-G01
DISK, R. FR. BRAKE
$619.40¢309 701
1
#13
45158-MCP-900
CLAMP
$7.13¢3 565
1
#14
45161-MCW-D10
CLAMP, SPEED SENSOR CORD
$5.73¢2 864
1
#15
45220-MCS-G01
DISK, L. FR. BRAKE
$619.40¢309 701
1
#16
90106-MT3-003
BOLT, DISK (6X17) (SAGA)
$4.24¢2 122
1
#17
90131-KPB-751
BOLT, TORX (5X10)
$3.15¢1 576
1
#18
90305-MCJ-000
BOLT, FR. AXLE
$16.87¢8 435
1
#19
91053-MCS-G01
BEARING, RADIAL BALL (6205UU)
$15.27¢7 636
1
#20
91252-MCS-G01
DUST SEAL (34X52X10)
$12.07¢6 038
1
#21
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#22
96001-06014-00
BOLT, FLANGE (6X14)
$2.13¢1 064
1
#23
45182-MBT-D50
CLAMP, SENSOR CORD
$1.23¢615
1
